ABB 086370-001 Host interface module

ABB 086370-001 Host interface module

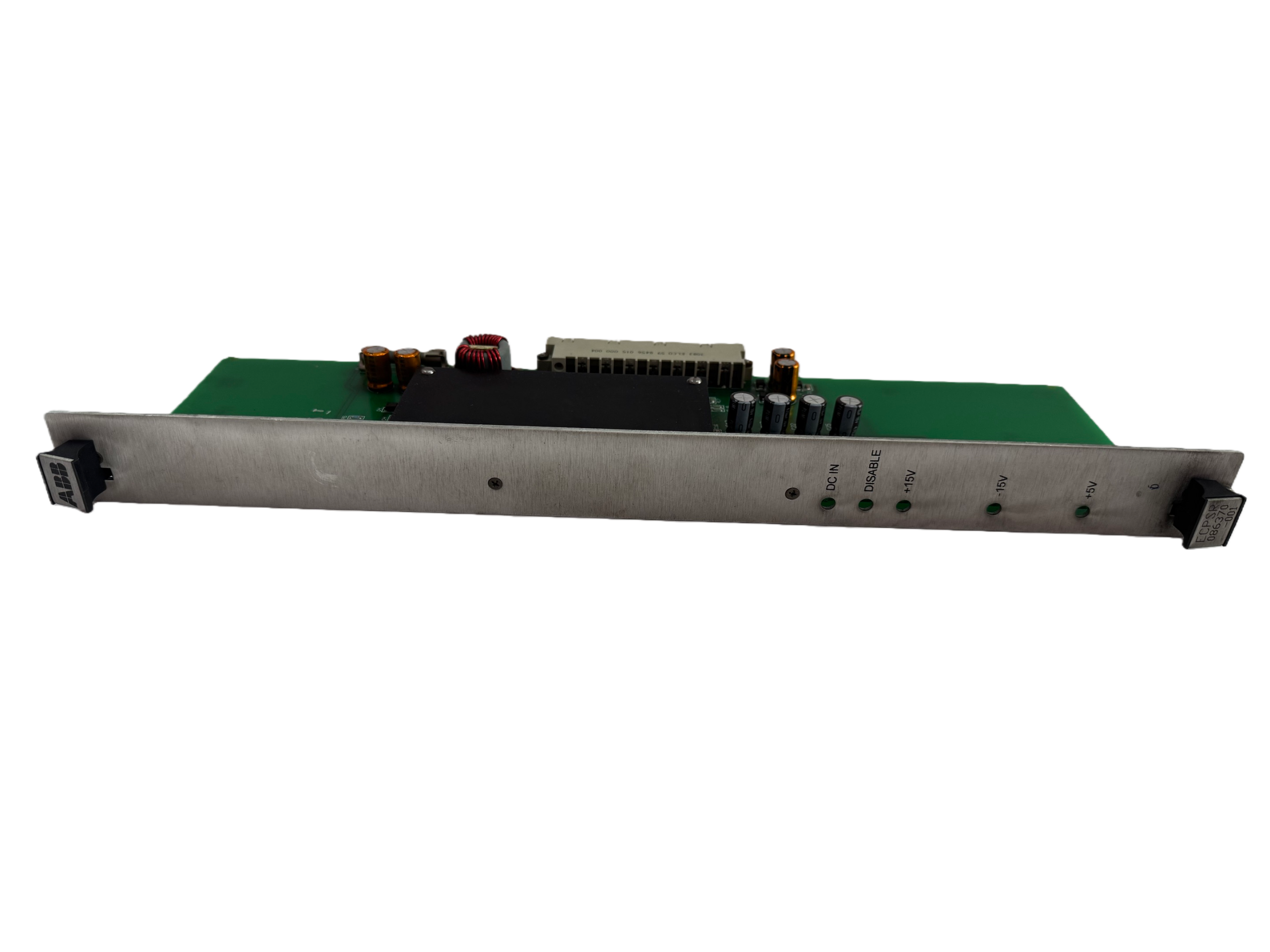

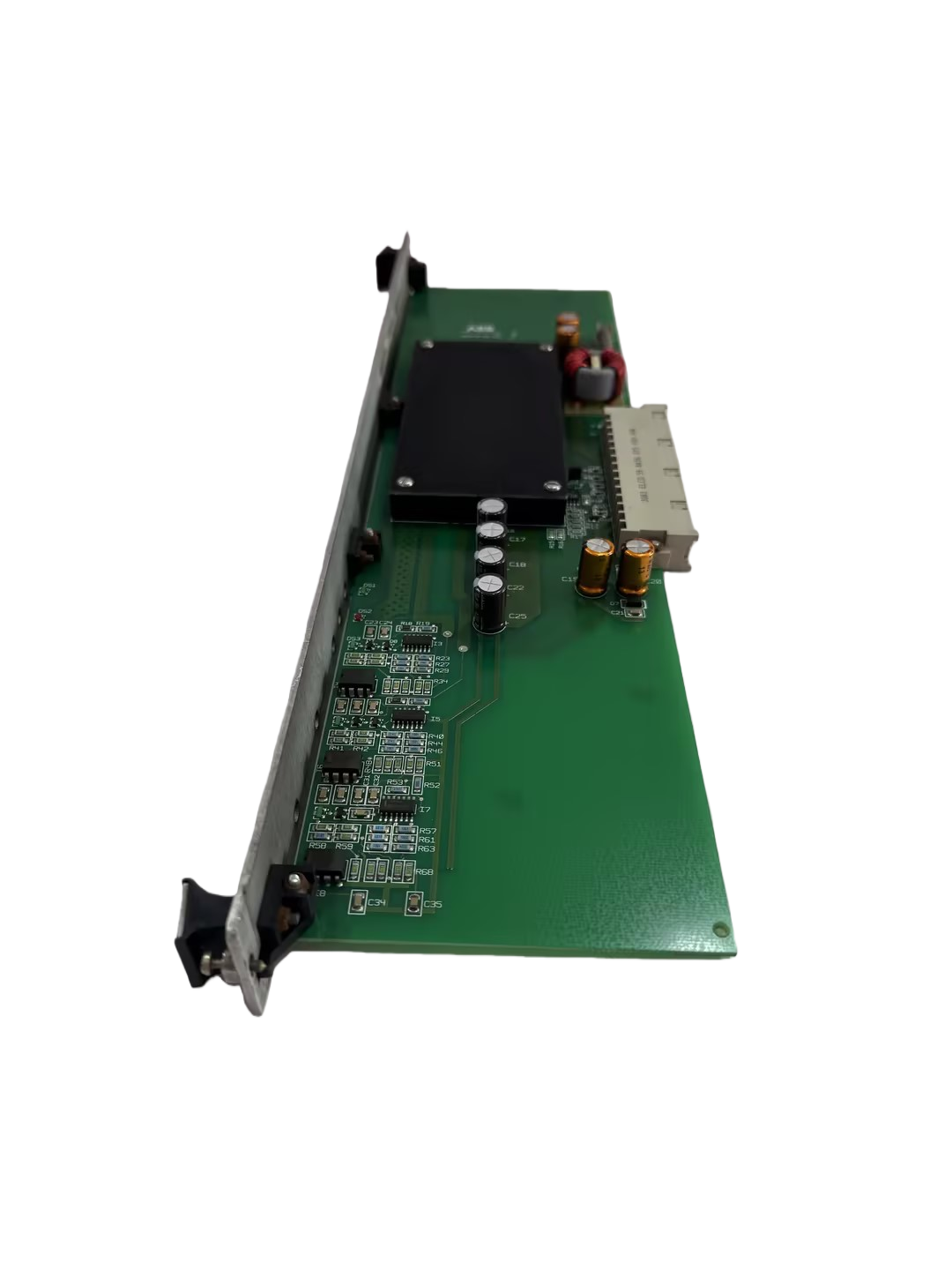

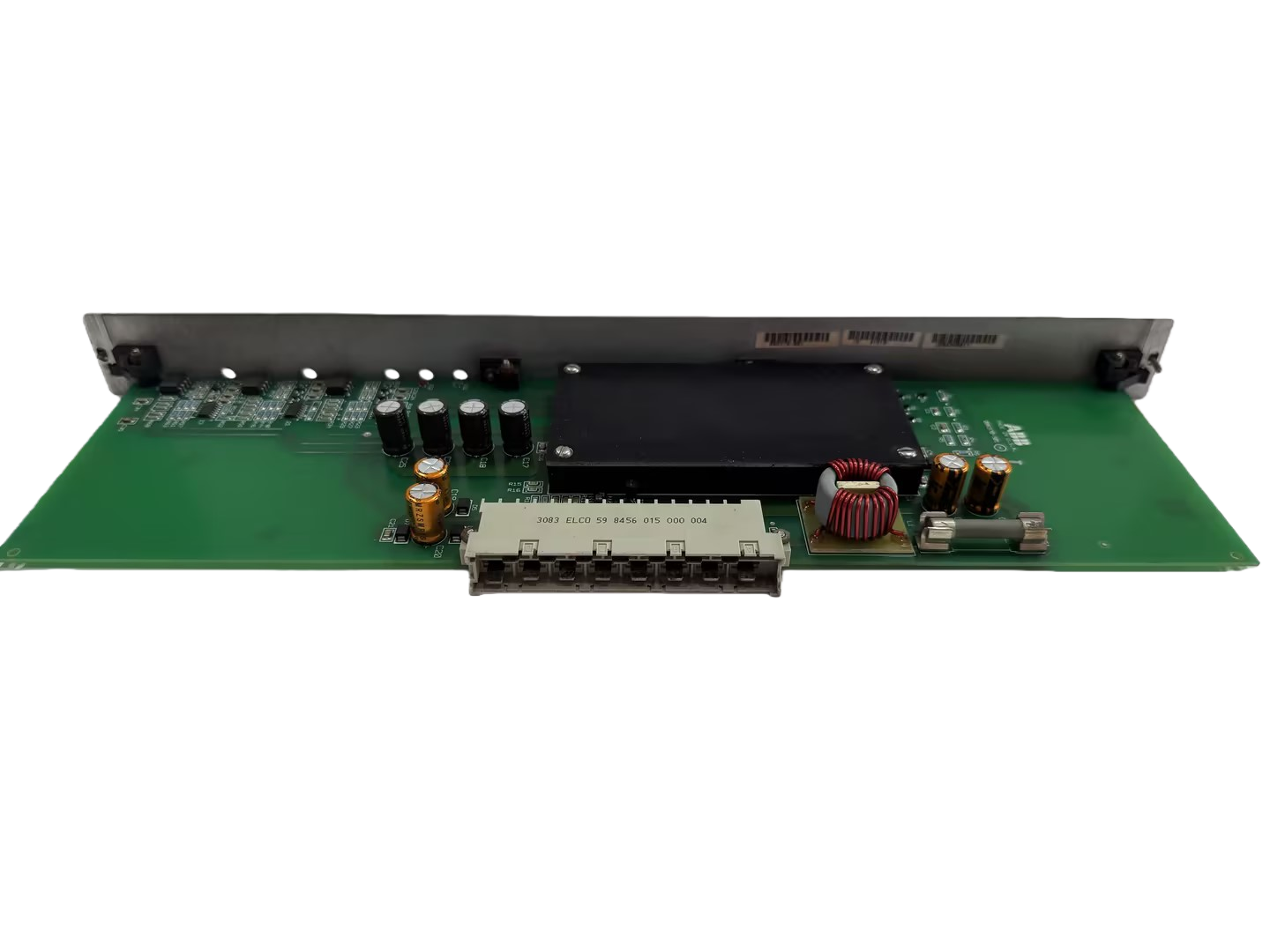

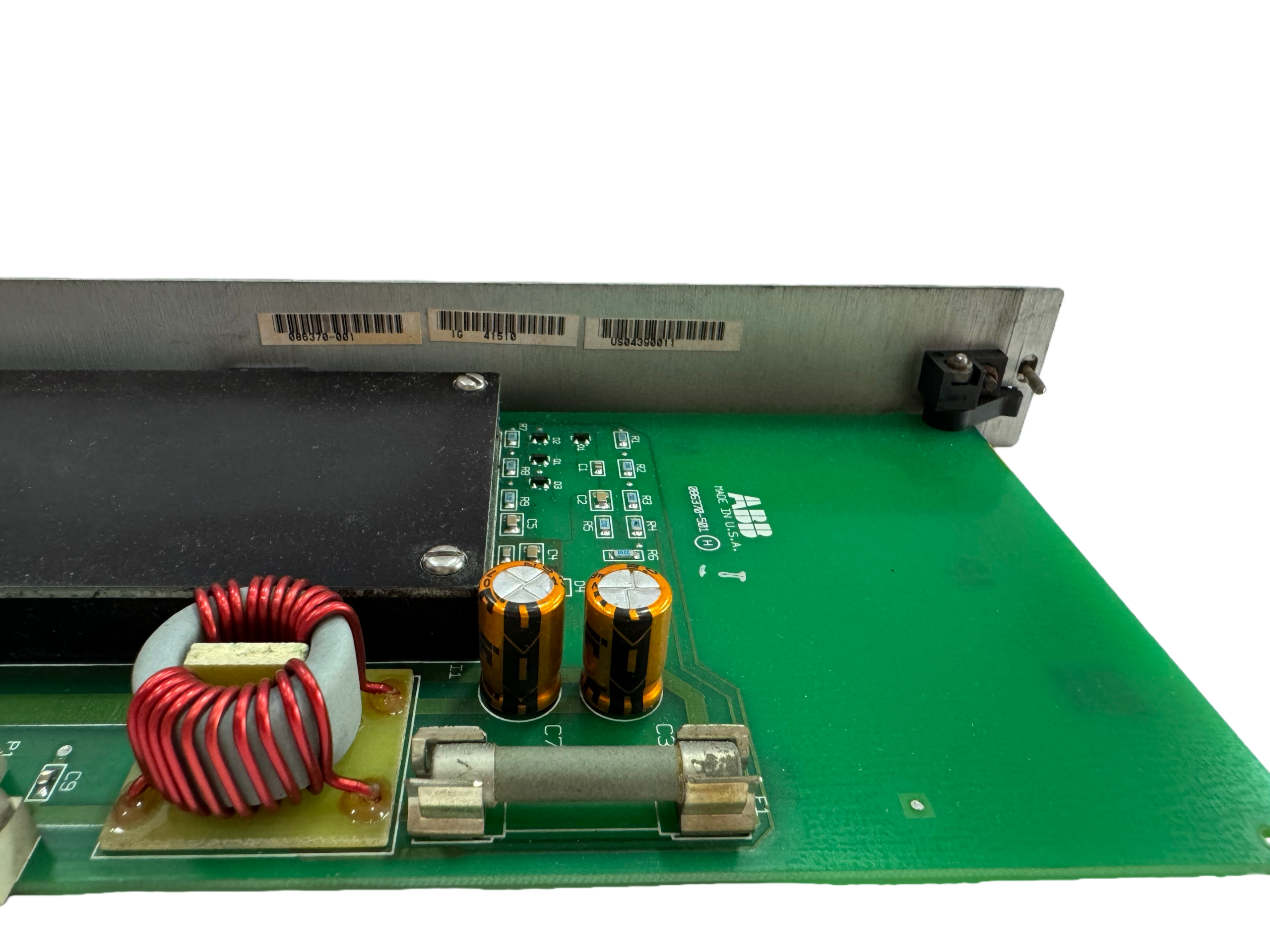

This module is the core power supply and backplane unit of the ABB Master Piece 200/1 control system. It supplies power to the entire controller rack and provides inter-module communication. When you need to replace or repair a faulty Master Piece 200/1 controller, this module is often one of the key components to inspect or replace.

Detailed Functions & Characteristics

1. Core Functions:

   • Power Distribution & Management: This module typically serves as the main backplane for the controller rack, responsible for providing and distributing stable operating power to all other modules (e.g., CPU, communication modules, I/O interface modules) inserted into it.

   • System Bus: It integrates the system’s internal data bus, forming the physical foundation for data communication between all modules.

   • Host Interface: The “Host Interface” in the module name indicates it likely provides the physical ports for communication with a host computer (e.g., engineering station, operator station) or a higher-level network.

2. Physical Characteristics:

   • It is a modular component designed for mounting on a DIN rail.

   • Its front end usually has multiple slots for installing other functional modules.

   • The module features status indicator lights (e.g., Power, Fault, Run) to display the system status.

   • It may include fuses, power connection terminals, and communication interfaces (e.g., serial ports).

3. Technical Specifications:

   • Input Voltage: Typically 24V DC, the most common power supply voltage in industrial control systems.

   • Operating Environment: Designed for standard industrial environments.

System Context

• System Platform: ABB Advant OCS

• Controller Series: Master Piece 200/1

• Era Context: The Master Piece 200/1 is a classic DCS (Distributed Control System) and PLC (Programmable Logic Controller) product line widely used by ABB from the 1990s to the early 2000s. While it is no longer a mainstream product, a significant number of these systems remain in stable operation worldwide.

• Importance: The 086370-001 is the foundation and “backbone” of this controller. If this module fails, the entire controller rack will be inoperable, leading to the shutdown of the production process or equipment it controls.

Primary Uses

This module is used to form the base unit of an ABB Master Piece 200/1 process station or control station. It is commonly found in:

• Chemical, Oil, and Gas industries

• Pulp and Paper industry

• Metallurgy industry

• Water treatment and utilities

• And other fields that utilize the ABB Advant OCS for process automation.
