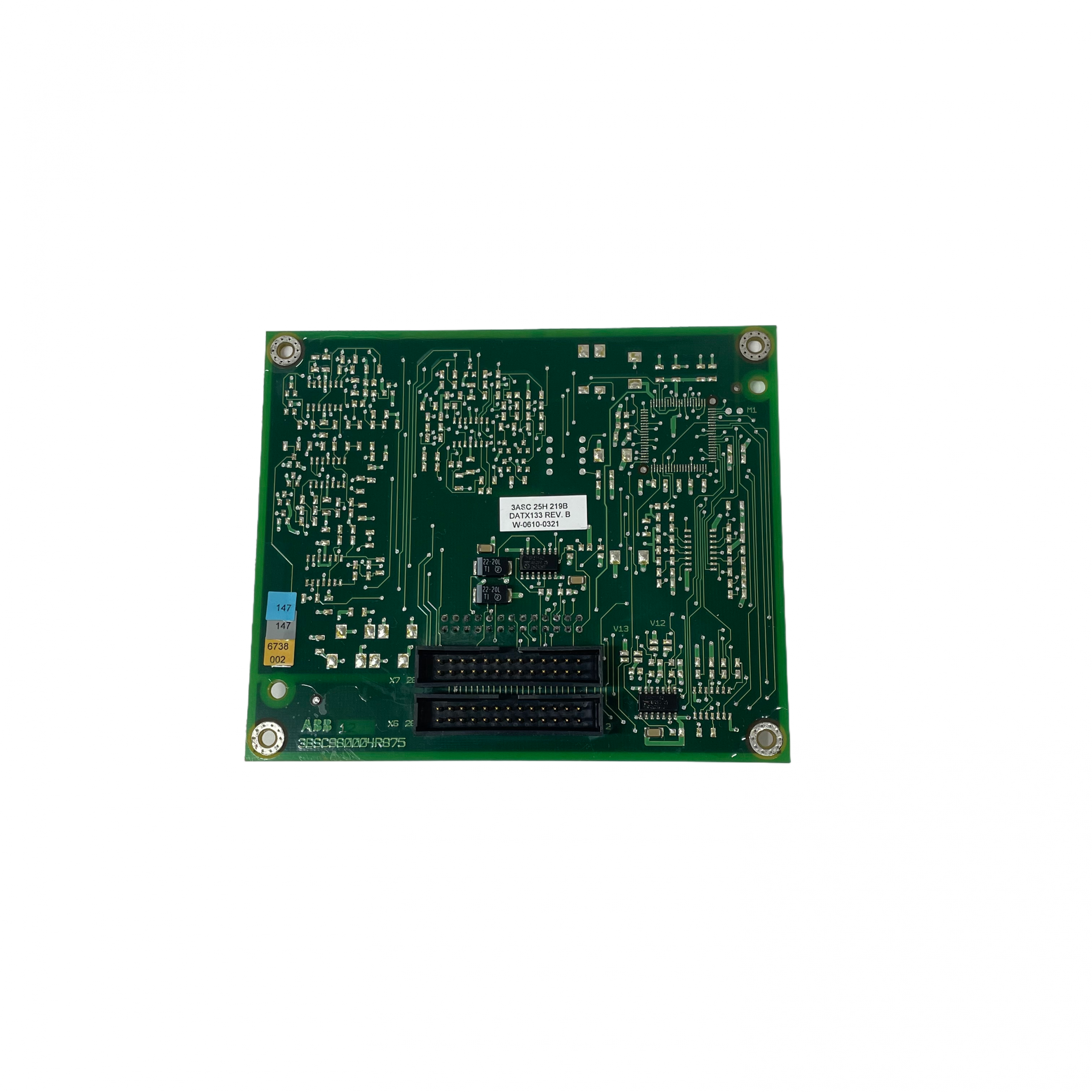

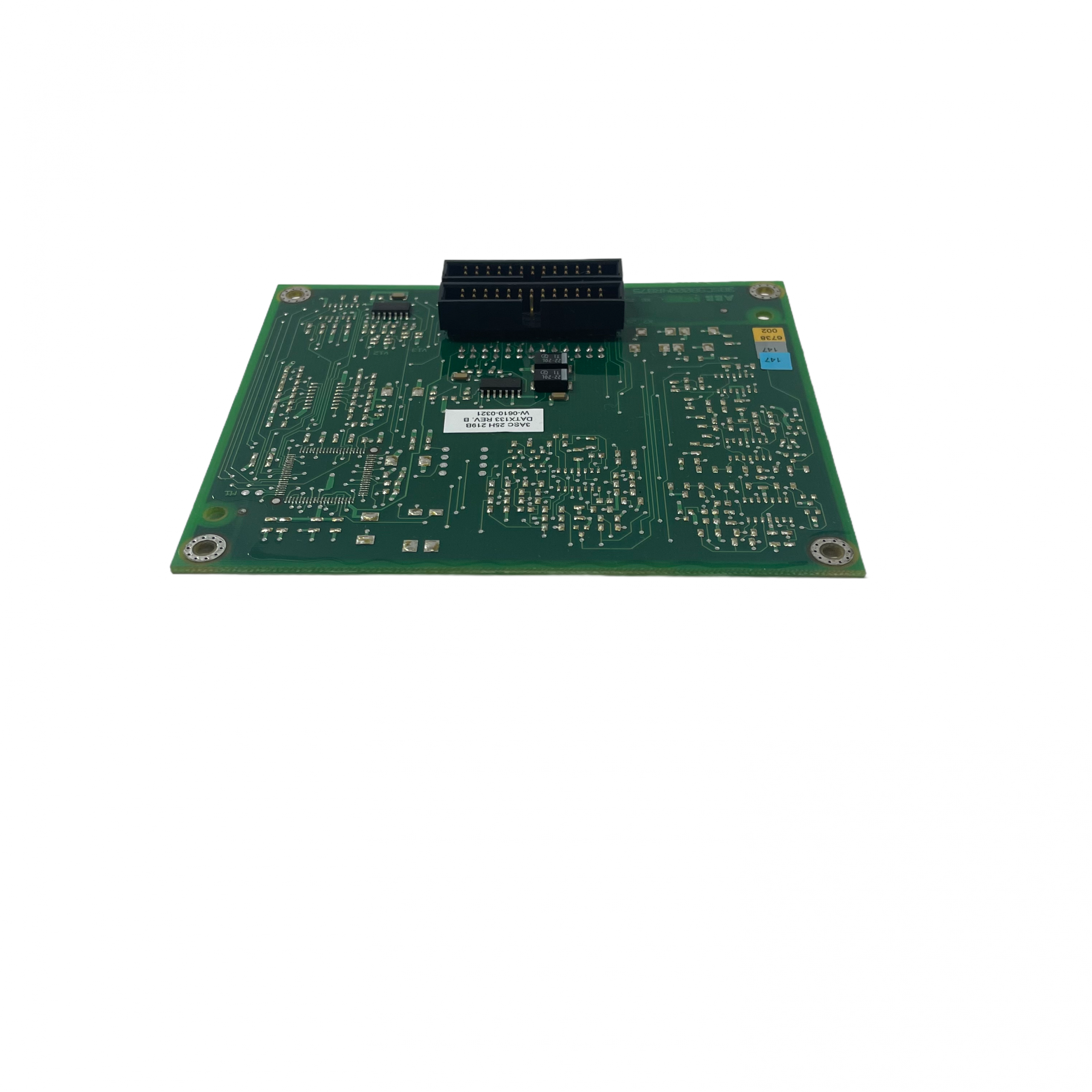

ABB 3ASC25H219B DATX133

It is a programmable control system (PLC) product launched by ABB, mainly for the field of industrial automation.

Detailed Product Description
1. Product Name
ABB Official Name: Axis Computer Board / Servo Control Board

Common Names: Drive Module, Servo Drive Board, Drive Card

2. System
Main Controller: ABB IRC5 or IRC5C Controller

Installation Location: Installed in a DSQC series drive unit (e.g., DSQC 646, 652, etc.) within an IRC5 control cabinet.

3. Main Functions
Servo Control: Receives motion commands from the host computer and generates precise pulse signals to control the servo motor’s motion.

Current Amplification: Amplifies low-power control signals to drive high-power servo motors.

Feedback Processing: Receives and processes feedback signals from the resolver behind the servo motor, forming a closed-loop control loop to ensure accurate motor position.

Safety Monitoring: Monitors motor parameters such as current and temperature, triggering safety protection mechanisms when abnormalities occur.

4. Technical Features
Number of Controlled Axes: Typically, one such board controls two robot joint axes. A standard six-axis robot controller typically contains three such dual-axis modules.

Modular Design: A plug-in modular design facilitates installation, replacement, and maintenance.

High Reliability: Designed for harsh industrial environments, it is resistant to vibration and electromagnetic interference.

Plug-and-Play: Typically includes firmware and configuration information, allowing the system to automatically recognize replacements.

5. Applications
This module is compatible with all ABB robots equipped with the IRC5 controller and is widely used in:

Automotive manufacturing (welding, painting, handling)

Metalworking

Plastics

Electronic assembly

Food and beverage industry

Logistics and handling
