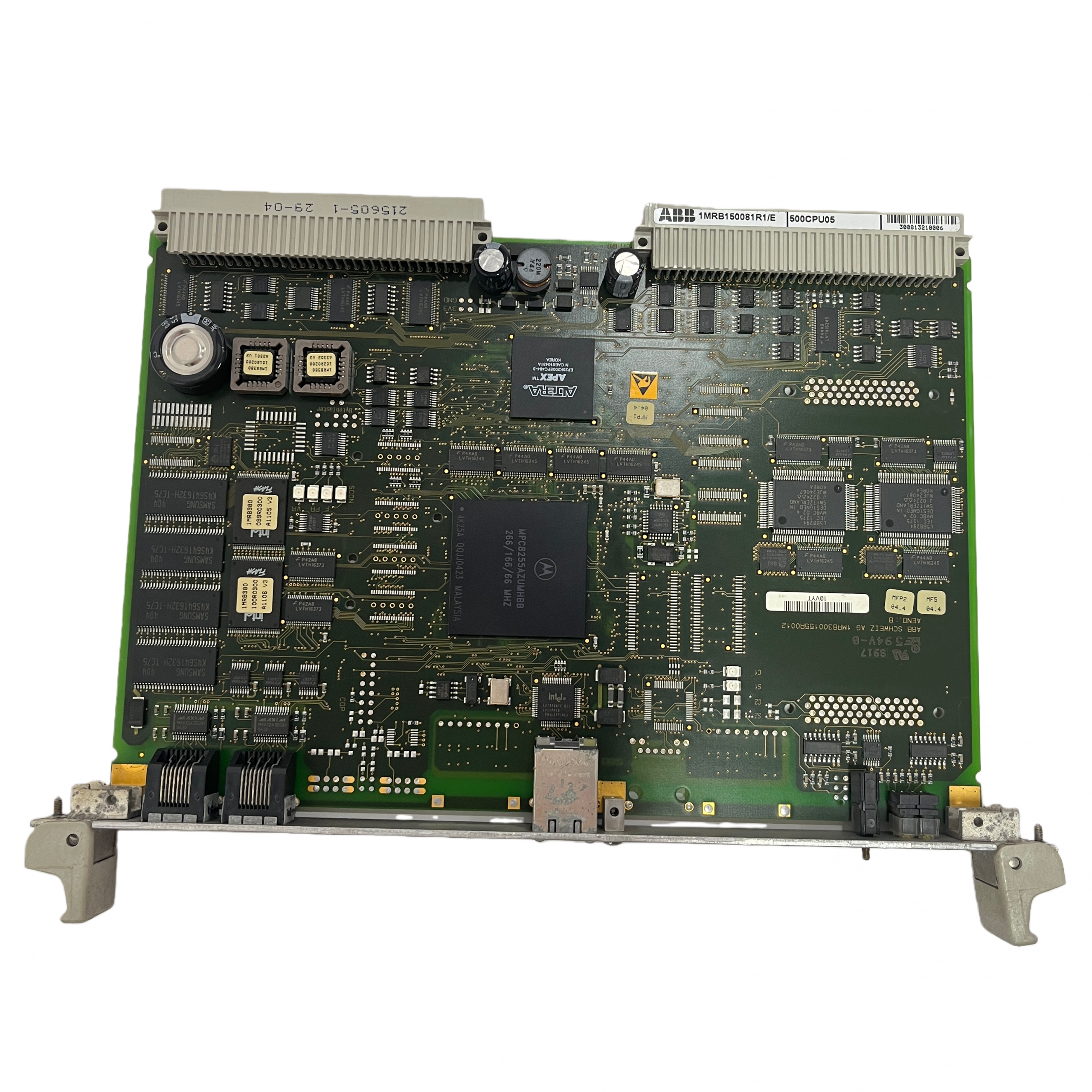

ABB 500CPU05 1MRB150081R1E

It is a high-performance programmable logic controller (PLC) central processing unit module, belonging to the ABB AC500 series

• Product Type: Industrial-grade high-performance programmable logic control core module.
• Operating Voltage: DC 24V (±10%).
• Power Consumption: Typical power consumption 45W, peak power consumption 60W.
• Processor: ARM Cortex-A9 dual-core processor with a main frequency of 1.5GHz.
• Memory: 1GB DDR3.
• Storage: 8GB Flash (for program storage), 2GB SRAM (for data storage).
• Instruction Execution Speed: The execution time of basic logic instructions is ≤0.05μs.
• I/O Parameters:
  • 32 digital input channels with DC 24V level.
  • 32 digital output channels with transistor output, DC 24V/1A.
  • 16 analog input channels with 12-bit resolution, supporting input signal types of 4-20mA and 0-10V.
  • 8 analog output channels with 12-bit resolution, supporting output signal types of 4-20mA and 0-10V.
• Communication Parameters: Supports multiple industrial communication protocols such as Modbus, Profinet, Ethernet/IP and CANopen. It is equipped with 2 Ethernet interfaces (10/100Mbps auto-negotiation), 3 RS-485 interfaces and 1 CAN interface. The maximum data transmission rate of Ethernet is 100Mbps, that of RS-485 is 115.2kbps, and that of CAN is 1Mbps.
• Environmental Parameters: Operating temperature range is -40℃ to 70℃, storage temperature range is -45℃ to 80℃, and relative humidity is 5%-95% (non-condensing). The vibration resistance level complies with IEC 60068-2-6 standard, the impact resistance level complies with IEC 60068-2-27 standard, and the protection level reaches IP20.
• Product Specifications: Dimensions are 200mm in length, 140mm in width and 80mm in height, with a weight of approximately 1.8kg. The shell is made of high-strength aluminum alloy with surface oxidation treatment, which has good heat dissipation and electromagnetic shielding performance. It adopts standard 35mm DIN rail mounting.
• Functional Features: Adopts high-reliability design and supports hot-swap function, which is convenient for maintenance and replacement during system operation. It has a built-in intelligent diagnosis system that can real-time monitor the module’s own operating status, communication link quality and program execution. Once a problem occurs, it will immediately issue an alarm and feed back detailed fault information.
