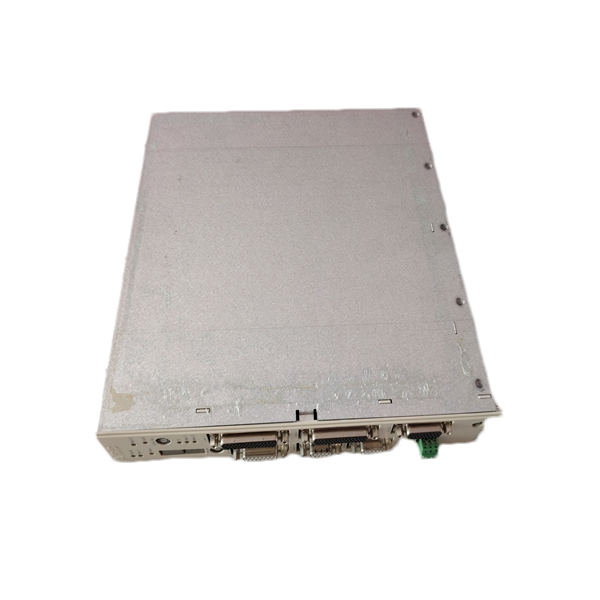

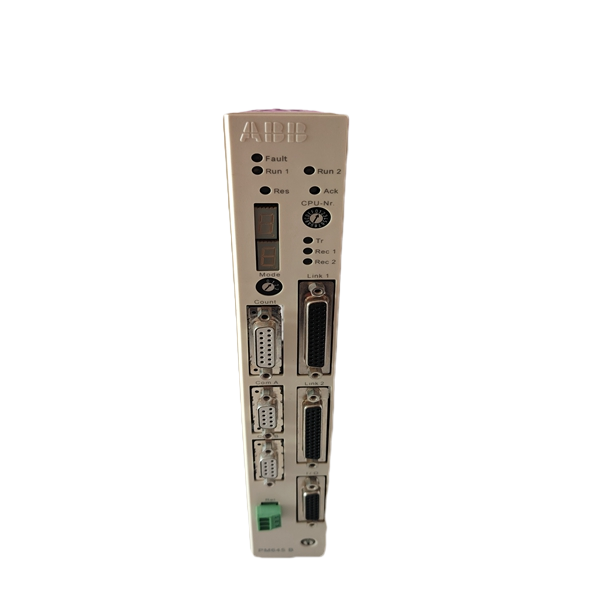

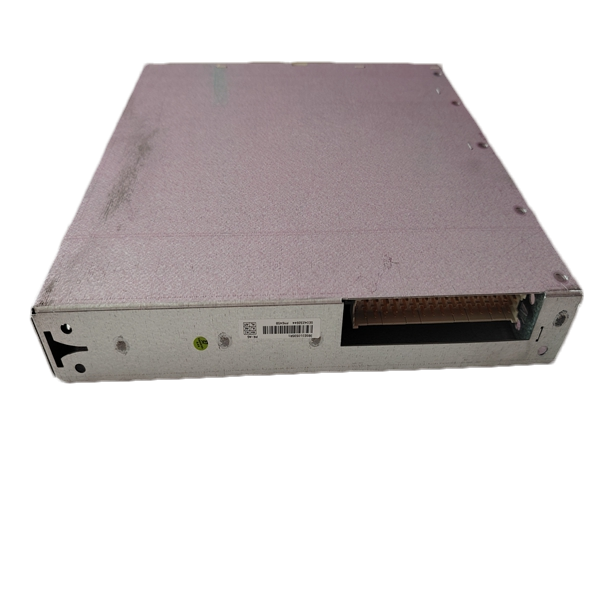

ABB PM645B Power quality monitoring device

ABB PM645B Power quality monitoring device

It is an all-round power quality device that integrates measurement, monitoring, analysis and protection.

Key Features & Characteristics

1. Comprehensive Electrical Parameter Measurement

• Basic Parameters: Accurately measures all phase and line voltages, currents, frequency, power (active, reactive, apparent), and power factor.

• Energy Metering: Measures active and reactive energy (import and export), supporting multi-tariff functionality.

• Demand Measurement: Monitors current and predicted power demand, aiding users in load management and avoiding penalty fees.

2. Advanced Power Quality Analysis

This is one of the core strengths of the PM645B.

• Voltage and Current Harmonic Analysis: Measures up to the 63rd harmonic and provides Total Harmonic Distortion (THD) and Total Demand Distortion (TDD). This is crucial for identifying and resolving issues caused by non-linear loads (like variable frequency drives, rectifiers).

• Interharmonic Analysis: Analyzes non-integer harmonics.

• Flicker Measurement: Measures voltage fluctuation-caused light flicker (Pst, Plt) according to IEC standards, assessing its impact on lighting equipment.

• Voltage Dips, Swells, and Interruptions: Detects, records, and generates event reports to help analyze grid disturbances.

• Unbalance Measurement: Monitors three-phase voltage and current unbalance.

3. Powerful Event Recording & Fault Diagnostics

• Event Logger: Records all types of system events (e.g., overvoltage, undervoltage, overcurrent, frequency abnormality) with precise time stamps.

• Waveform Recording: Captures voltage and current waveforms before, during, and after a fault (fault recording), which is invaluable for analyzing trip causes and system failures.

• Transient Detection: Capable of capturing rapid voltage spikes.

4. Protection & Control Functions

• Programmable Logic: Features built-in programmable functionality, allowing users to create custom protection schemes or control logic (e.g., automatic backup power transfer, capacitor bank switching based on power factor).

• Relay Outputs: Provides configurable relay outputs for alarms or direct control of devices like circuit breakers and contactors.

• Digital Inputs: Monitors the status of external contacts (e.g., switch position, protection signals).

5. Communication & Integration

• Extensive Communication Interfaces: Typically equipped with multiple communication ports supporting various industrial standard protocols, such as:

  • Modbus RTU/TCP: The most commonly used protocol in the industrial sector.

  • Profibus DP: Widely used in process automation.

  • IEC 61850: The international standard for smart substations and digital distribution systems.

• This allows the PM645B to be easily integrated into SCADA (Supervisory Control and Data Acquisition), DCS (Distributed Control Systems), or any Energy Management System.

6. User Interface & Display

• Features a high-resolution color LCD display that can graphically show measured values, waveforms, vector diagrams, and harmonic spectra, making it highly intuitive.

• The front panel includes navigation keys for easy on-site operation and configuration.

Typical Applications

The PM645B is suited for environments with extremely high requirements for power quality and supply continuity, such as:

• Industrial Plants: Automotive manufacturing, petrochemical, metallurgy, data centers, semiconductor production lines.

• Large Commercial Buildings: Hospitals, airports, shopping malls, office towers.

• Utilities: Substations, power plants, points of connection for renewable energy (e.g., wind farms, photovoltaic plants).

• Critical Infrastructure: Water treatment plants, communication hubs.

Sales of the brand:

ABB、EPRO、GE、FOXBORO、Schneider、Rexroth、Honeywell、Bently、YASKAWA other global DCS system and PLC system, servo system of famous industrial brand.

☀️Tara(Sales Director)

📞Tel: + 86-13806028623

📮Whatsapp:+86-13806028623

💬Email: ydf8801@163.com

🏚️Ship to you via DHL/TNT/UPS/EMS/Fedex

🥇Product Condition: One-year warranty

requently Asked Questions:
1. How long does it take to receive the goods?
We have stock in stock and can accept same-day payment and delivery!

2. What payment methods do you accept?
There are many methods (T/T…) for you to choose from, and you can choose whatever you want.

3. Is there after-sales service?
Of course, if our products are brand new, they have a one-year warranty!

4. What courier services do you accept? We offer SF Express, DHL, and other international express delivery options.

5. How can I contact you?

You can contact me 24/7 via WeChat, Skype, WhatsApp, LINE, and my email!
