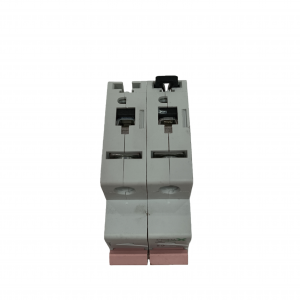

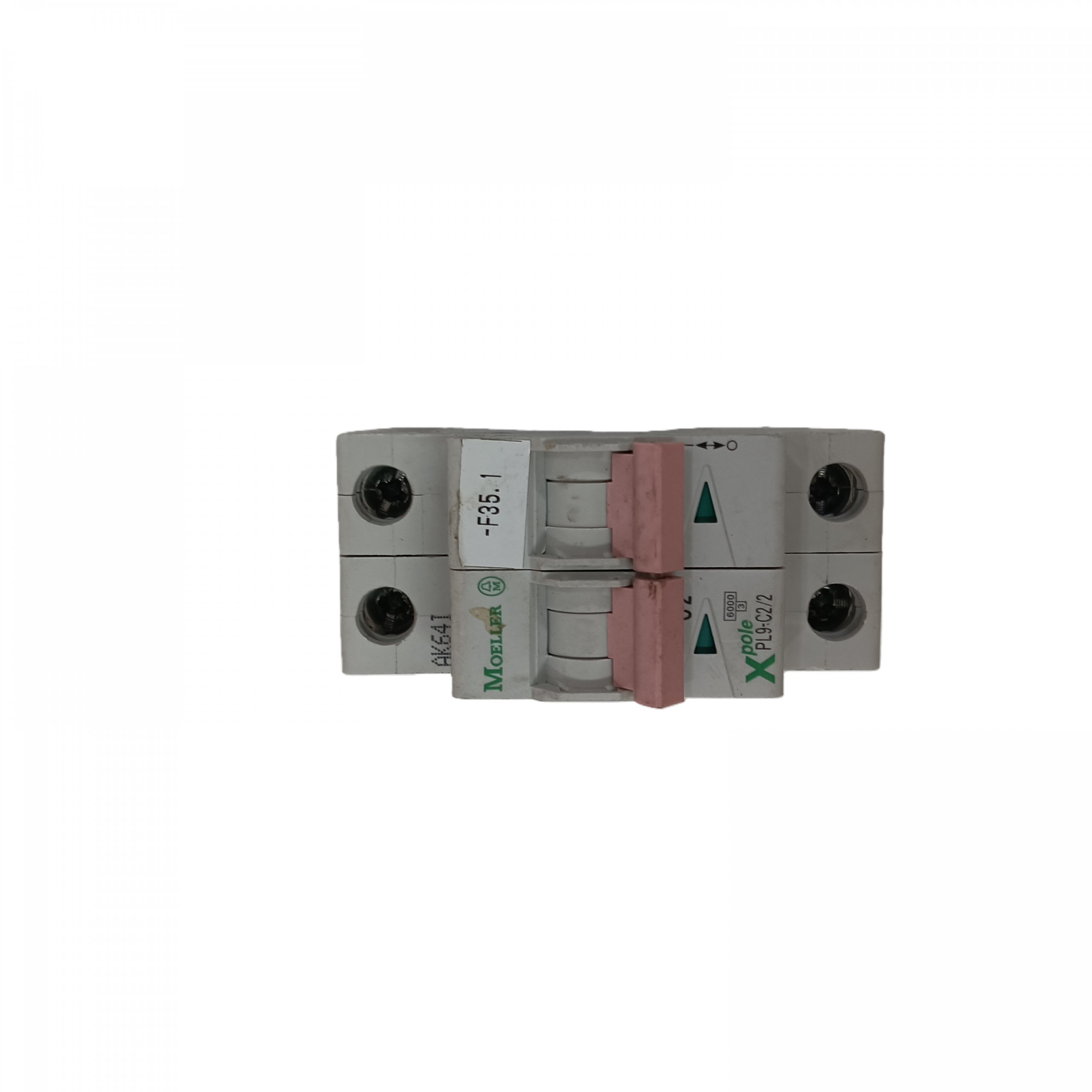

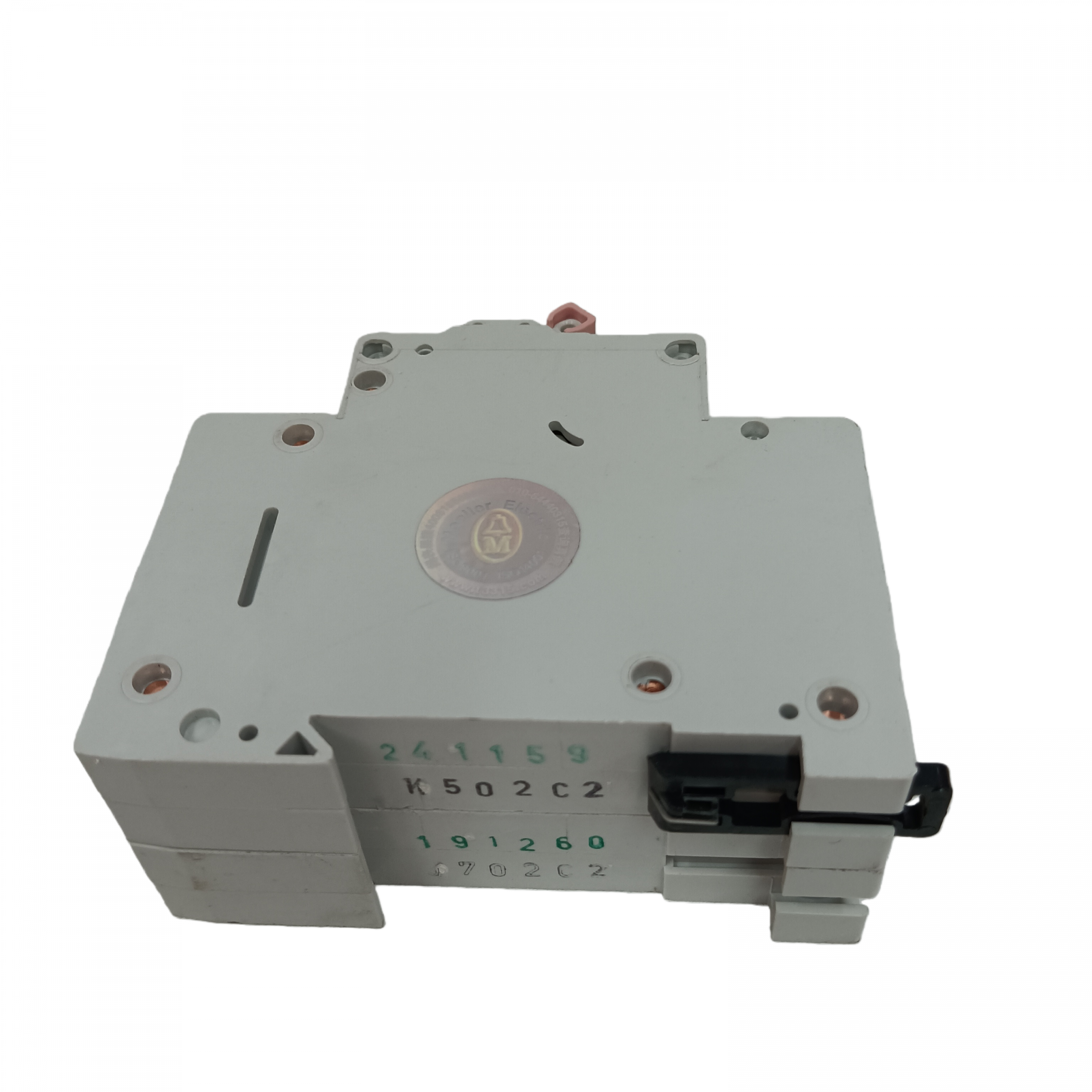

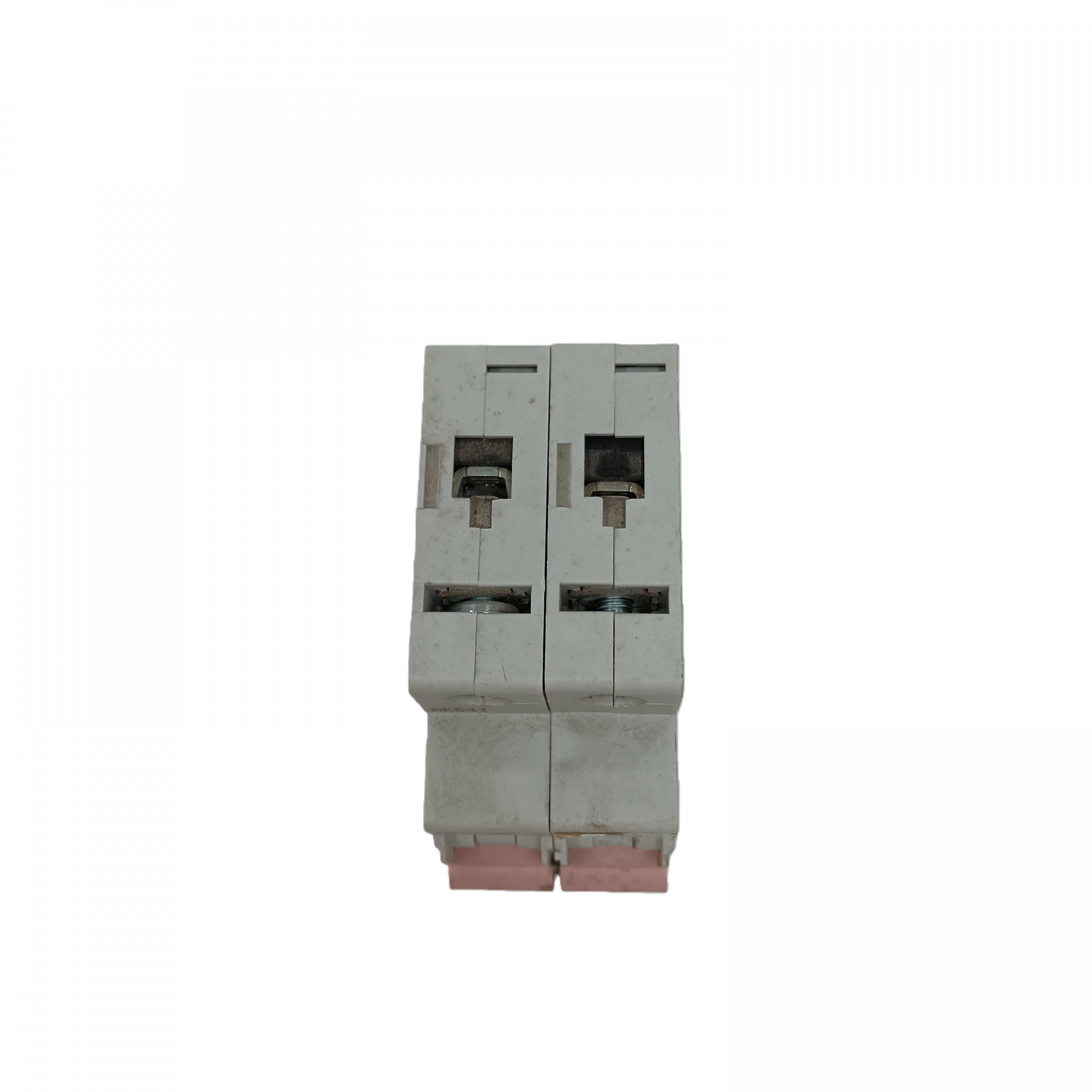

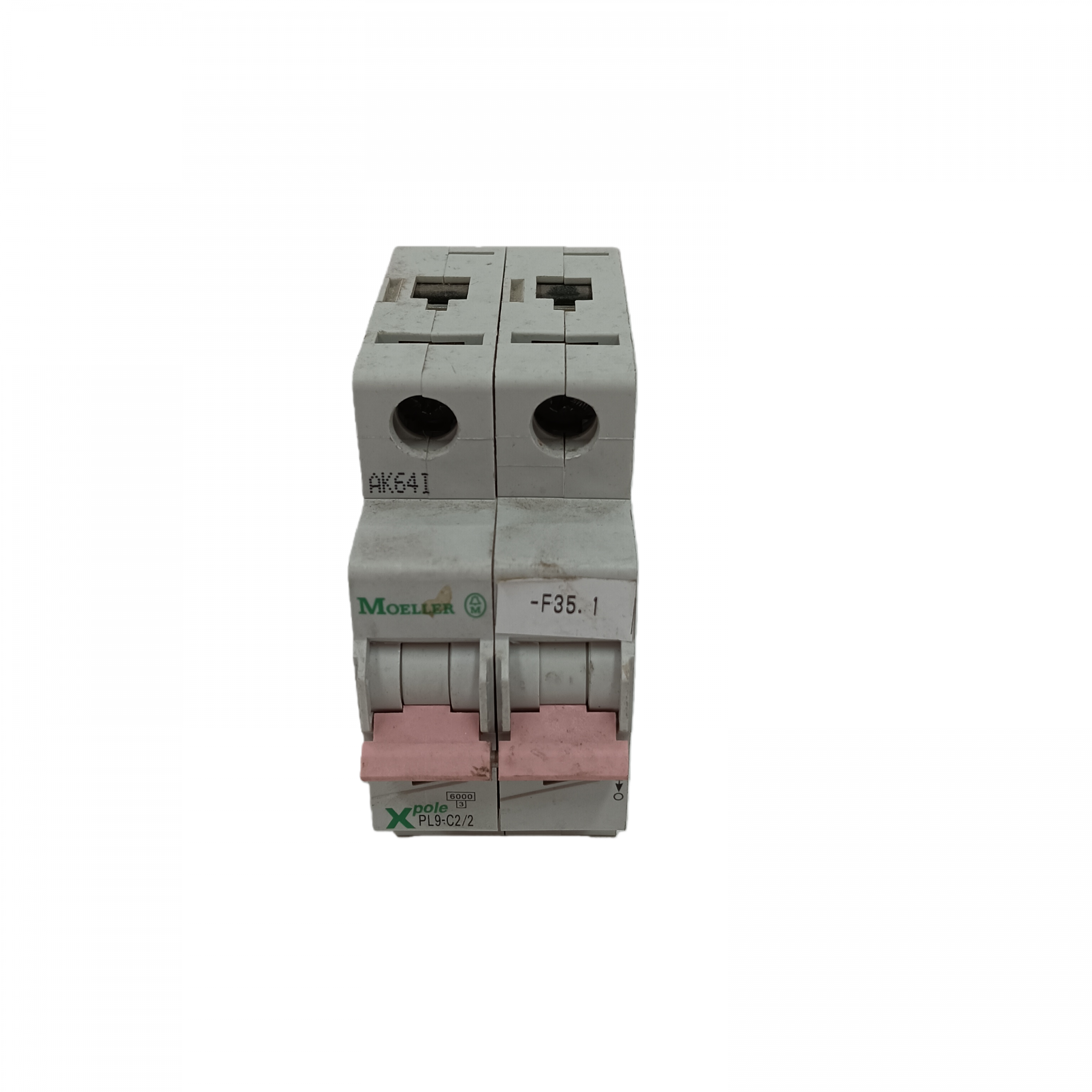

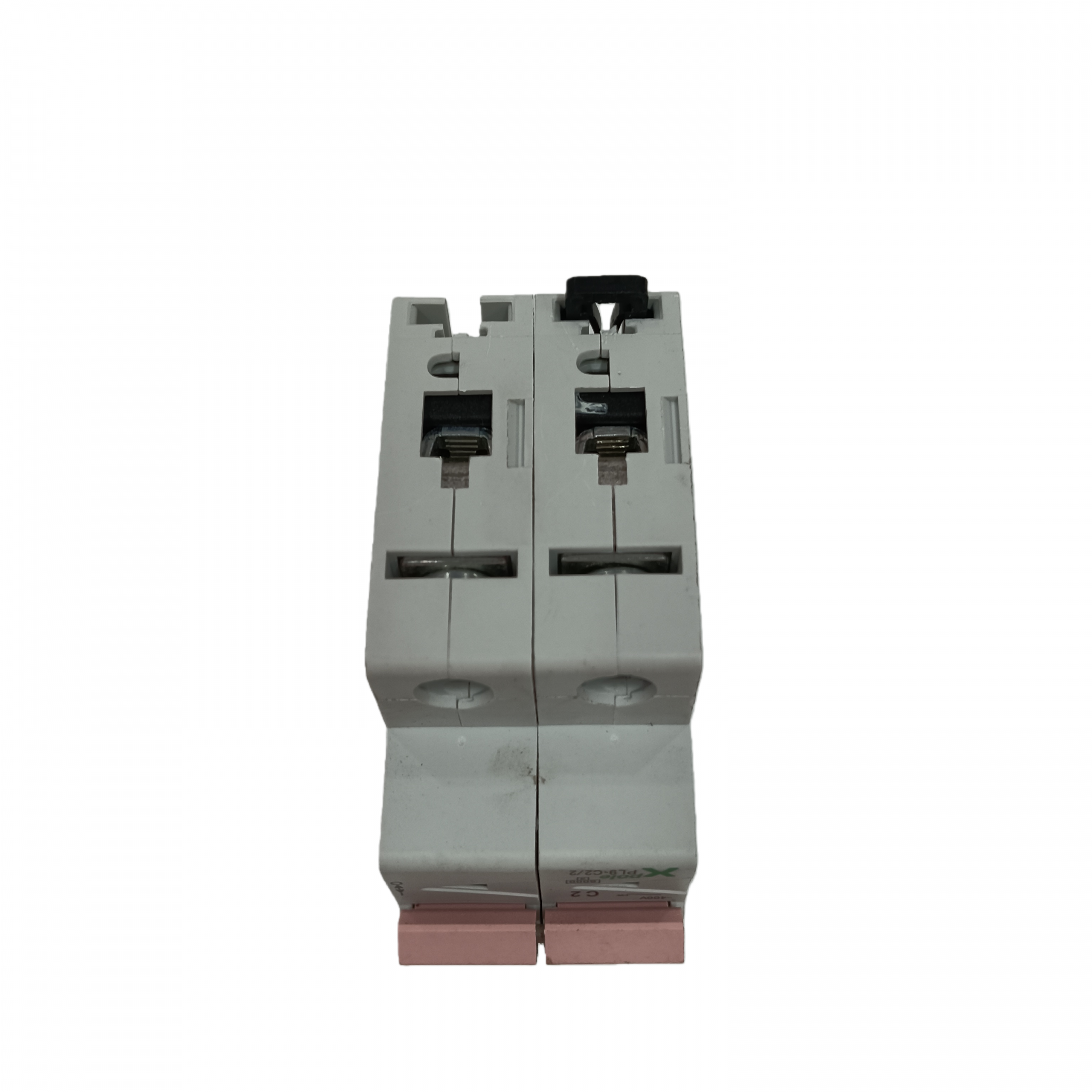

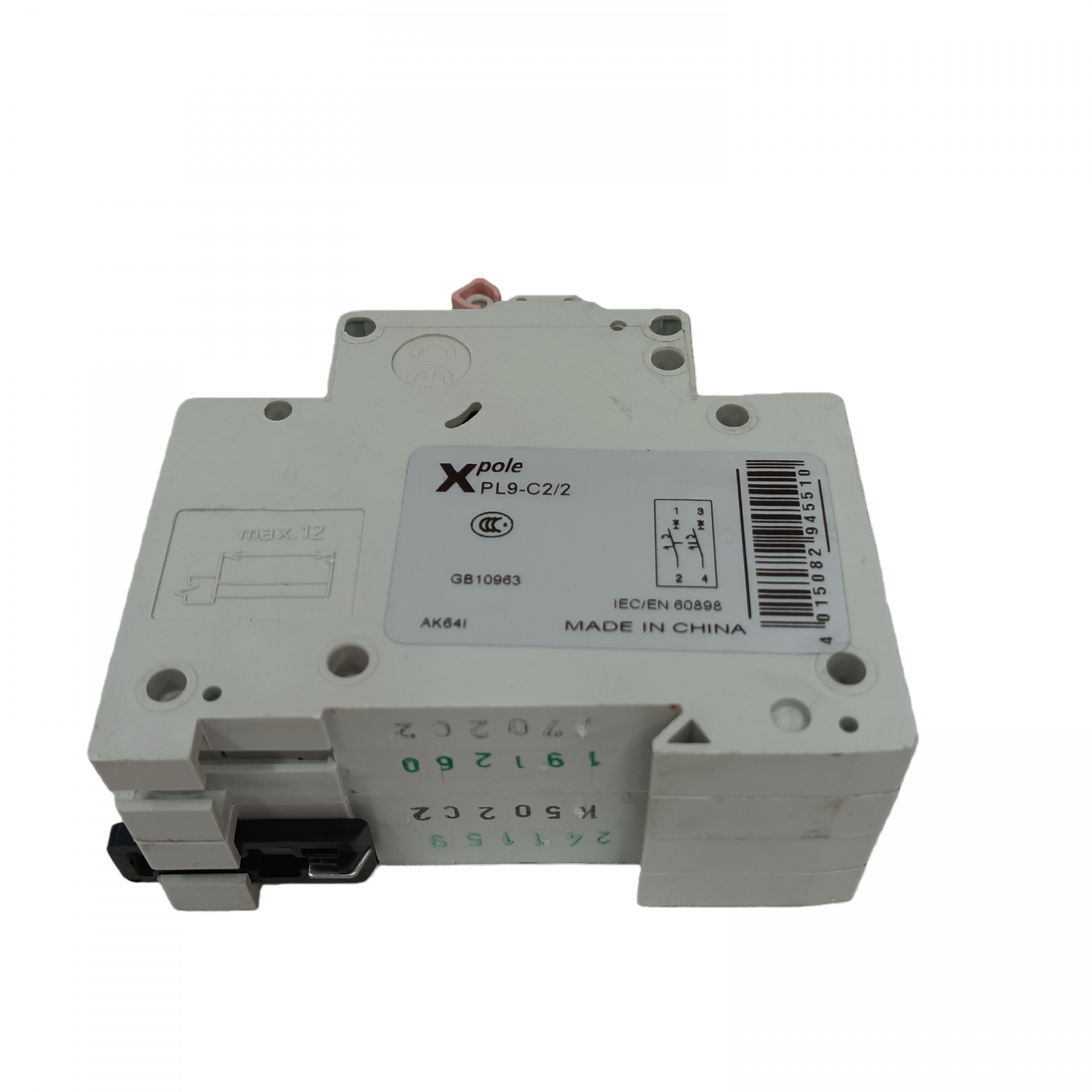

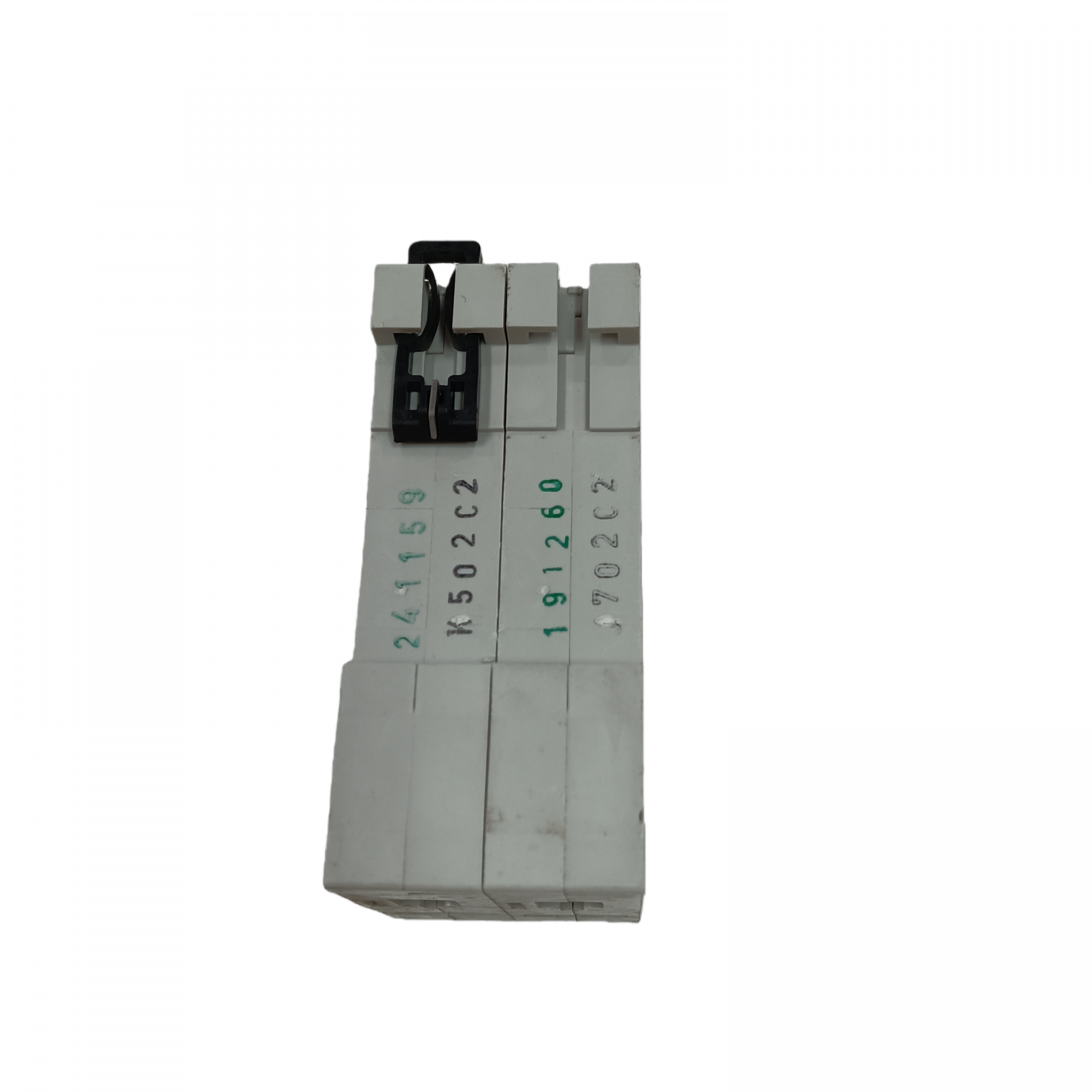

EATON PL9-C2-2

It is a 2-pole (2P) miniature circuit breaker (MCB) in the Eaton PL9 series, designed to provide overload and short-circuit protection for low-voltage AC distribution circuits.

Key Technical Specifications

• Rated Current: 2 A
• Rated Voltage: AC 230 V / 400 V (single‑phase / three‑phase)
• Trip Characteristic: C‑type (suitable for lighting, socket outlets, and small‑power motor loads)
• Breaking Capacity: 6 kA (compliant with IEC/EN 60898‑1)
• Poles: 2 P (double‑pole)
• Mounting: Standard 35 mm DIN rail (front‑wire, spring‑clamp)
• Conductor Size: 0.5 – 2.5 mm² (copper)
• Operating Temperature Range: –25 °C ~ +70 °C; Storage Temperature: –40 °C ~ +85 °C
• Enclosure Material: Flame‑retardant thermoplastic (UL94 V0)
• Certifications: CE, UL, TÜV and other international safety approvals
• Dimensions / Weight: Approximately 80 × 36 × 67 mm, weight about 80 g

Product Features

• Compact, modular design suitable for high‑density distribution panels.
• High breaking capacity and fast‑acting C‑type trip curve to quickly disconnect the circuit during overload or short‑circuit conditions, protecting downstream equipment.
• Front‑wire connection simplifies on‑site wiring, making it ideal for industrial, commercial, and residential distribution systems.
• Conforms to IEC/EN 60898‑1 standards and holds CE, UL, TÜV certifications, ensuring high reliability.

Typical Applications

• Protection of lighting and socket circuits in residential or commercial buildings.
• Over‑current protection for small‑power motors, pumps, fans, and other lightly inductive loads.
• Protection of signal or control circuits in automation panels, PLCs, and DCS systems.

With its compact size, reliable protection performance, and compliance with international standards, the EATON PL9‑C2‑2 is a widely used miniature circuit breaker in low‑voltage distribution systems.
