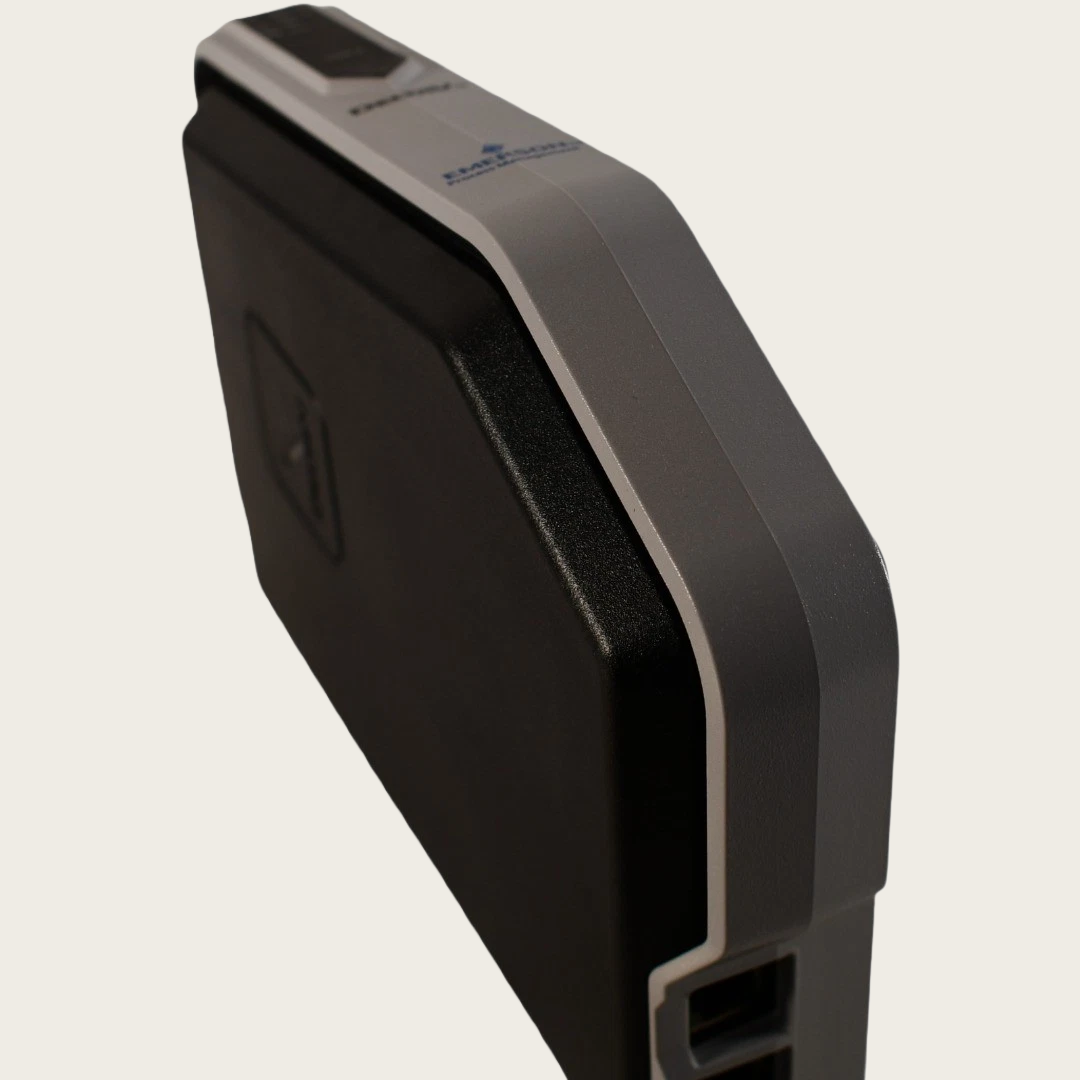

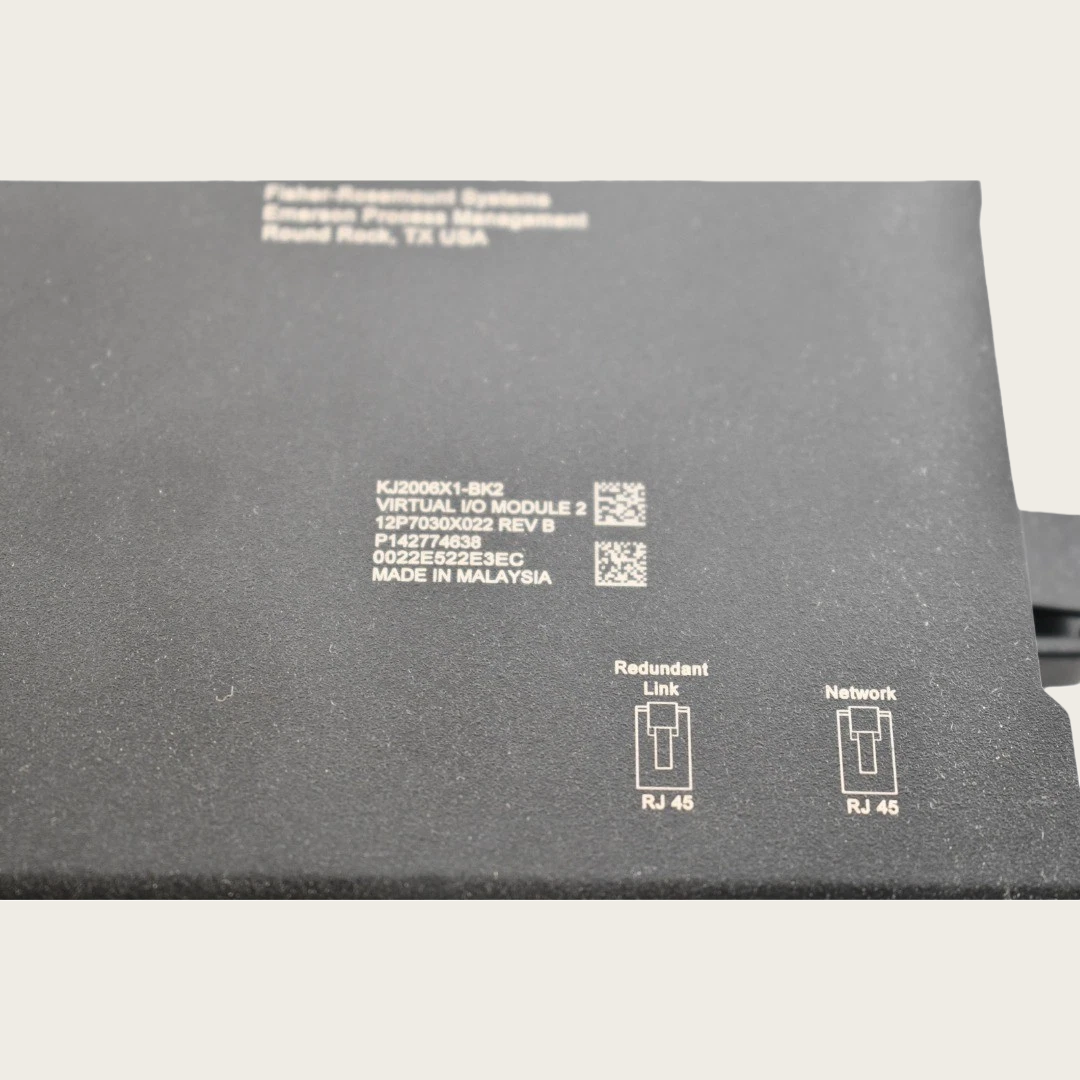

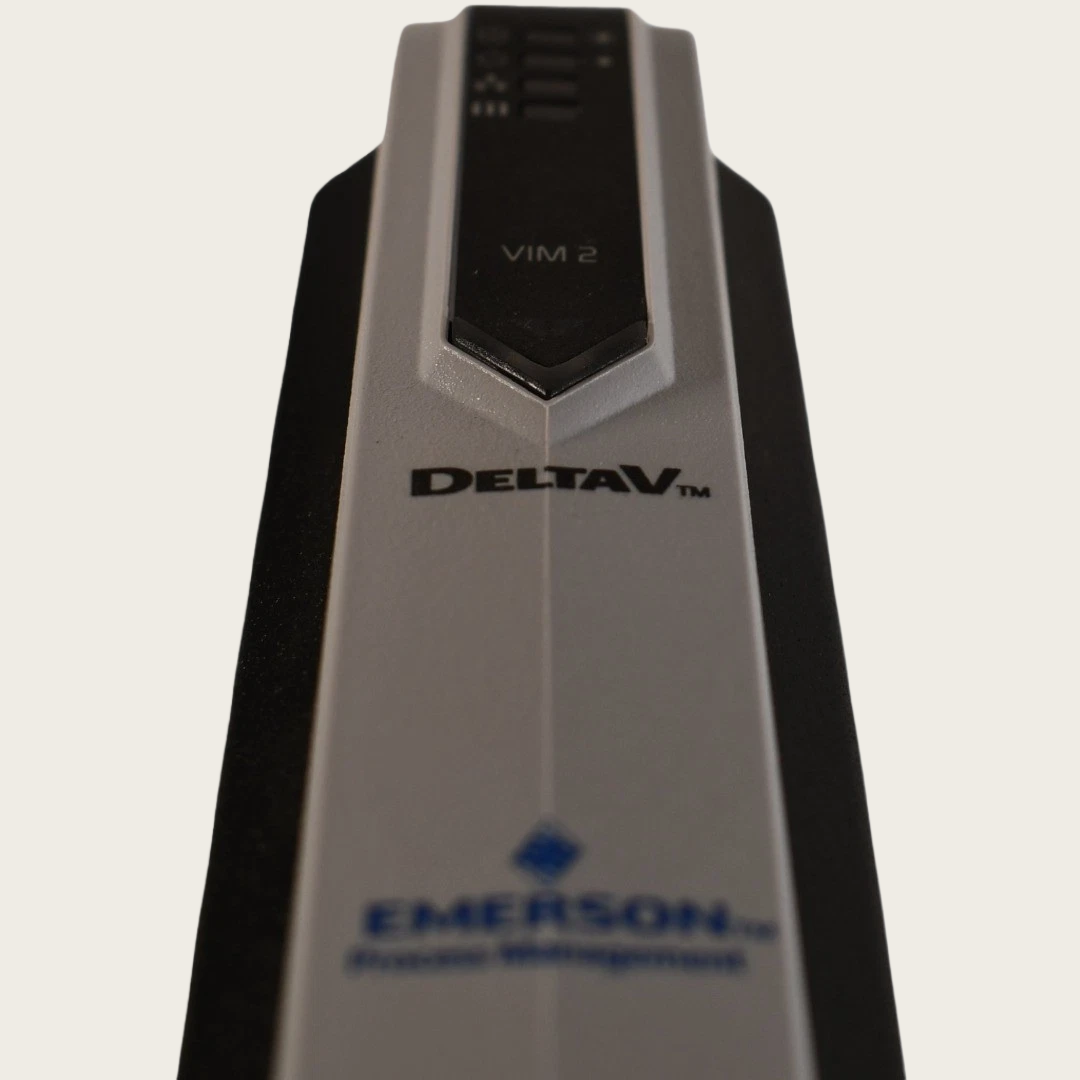

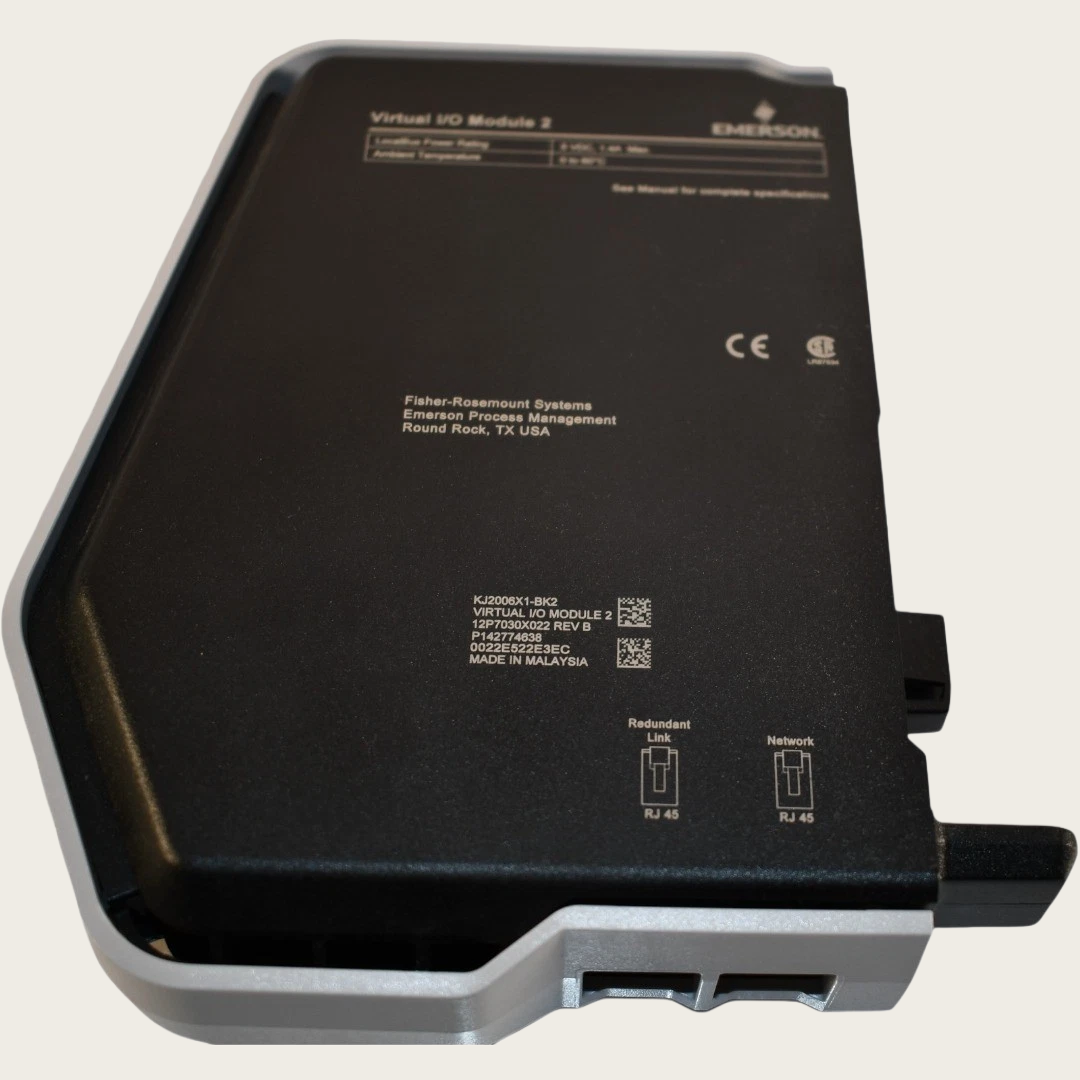

Emerson DeltaV KJ2006X1-BK2 VIM2 l Communication interface module.

Emerson DeltaV KJ2006X1-BK2 VIM2 l

A highly specialized industrial automation component, it essentially acts as the “translator” and “commander” between the DeltaV digital control system and the on-site pneumatic valves. It is responsible for translating control commands into valve movements and feeding back valve status to the control system, serving as a vital bridge for achieving critical process control and safety interlocking functions.

Emerson DeltaV KJ2002X1-BK2 VIM2 – Product Description

1. Product Overview

• Product Name: DeltaV VIM2 Valve Interface Module

• Model Number: KJ2002X1-BK2

• Manufacturer: Emerson (Emerson Automation Solutions)

• Product Line: DeltaV System

• Primary Function: Serves as an intelligent interface and communication gateway between the DeltaV electronic system and field pneumatic actuators (e.g., control valves, on-off valves).

2. Core Functions & Purpose

This module is a critical component within the DeltaV SIS (Safety Instrumented System) or DeltaV CHARMs I/O system, specifically designed for integrating and controlling complex field valves:

• Communication Protocol Conversion: It translates digital communication signals from the DeltaV controller or SIS logic solver into a set of discrete electrical signals capable of driving valve positioners, solenoid valves, and valve position feedback switches.

• Valve Control & Monitoring:

  • Control Outputs: Provides output signals to command valve actions such as Open, Close, and Stop.

  • Status Feedback: Receives and processes multiple status signals from the valve, for example:

    • Valve Position Feedback (Open, Closed, Intermediate)

    • Solenoid Valve State

    • Actuator Pressure Alarms

• Diagnostics & Safety: Offers advanced diagnostic capabilities to monitor the health of the module itself and the status of the valve actuator, reporting this information back to the DeltaV system for operators and maintenance personnel to identify potential issues.

• Simplified Wiring: It consolidates the multiple cables required to control a complex valve (e.g., an on-off valve with dual solenoids and multiple position switches) into a single module and connector, significantly simplifying control cabinet wiring.

3. Physical & Installation Characteristics

• Form Factor: A modular electronic plug-in module.

• Mounting: It is inserted into a dedicated base or carrier. This base is then mounted in a DeltaV system I/O card rack.

• Connections: Power and communication with the controller are achieved through terminals on the back of the base. Connection to field valve devices is made via a high-density, removable connector on the front of the module. This design allows for easy online replacement and maintenance.

• Color: Typically black or dark, consistent with the DeltaV CHARMs I/O system aesthetics.

4. Position in System Architecture

• Associated System: DeltaV System

• Related I/O Type: Typically used with CHARMs or Electronic Marshalling I/O cards. CHARMs is a technology that separates signal conditioning from the I/O point, offering great configuration flexibility.

• Upstream: Connects to a DeltaV Controller (e.g., PMA) or an SIS Controller.

• Downstream: Connects via cable to field pneumatic actuators, including:

  • Valve Positioners

  • Single or Double Solenoid Valves

  • Limit Switches (Valve Position Feedback)

  • Pressure Switches

5. Model Number Breakdown (Probable Meaning)

• KJ2002X1: Emerson’s internal product code, uniquely identifying this specific configuration of the VIM2 module.

• BK2: Likely stands for “Black-2” or another version/configuration code.

• VIM2: Valve Interface Module 2, indicating the second generation of this module.

6. Typical Application Scenarios

Primarily used for valve control in process industries requiring high reliability and safety interlocks, such as:

• Oil & Gas (Platform Shutdown Valves, Emergency Vent Valves)

• Chemical & Petrochemical (Reactor Feed Isolation Valves, Emergency Cooling Valves)

• Pharmaceutical Industry

• Power Generation
