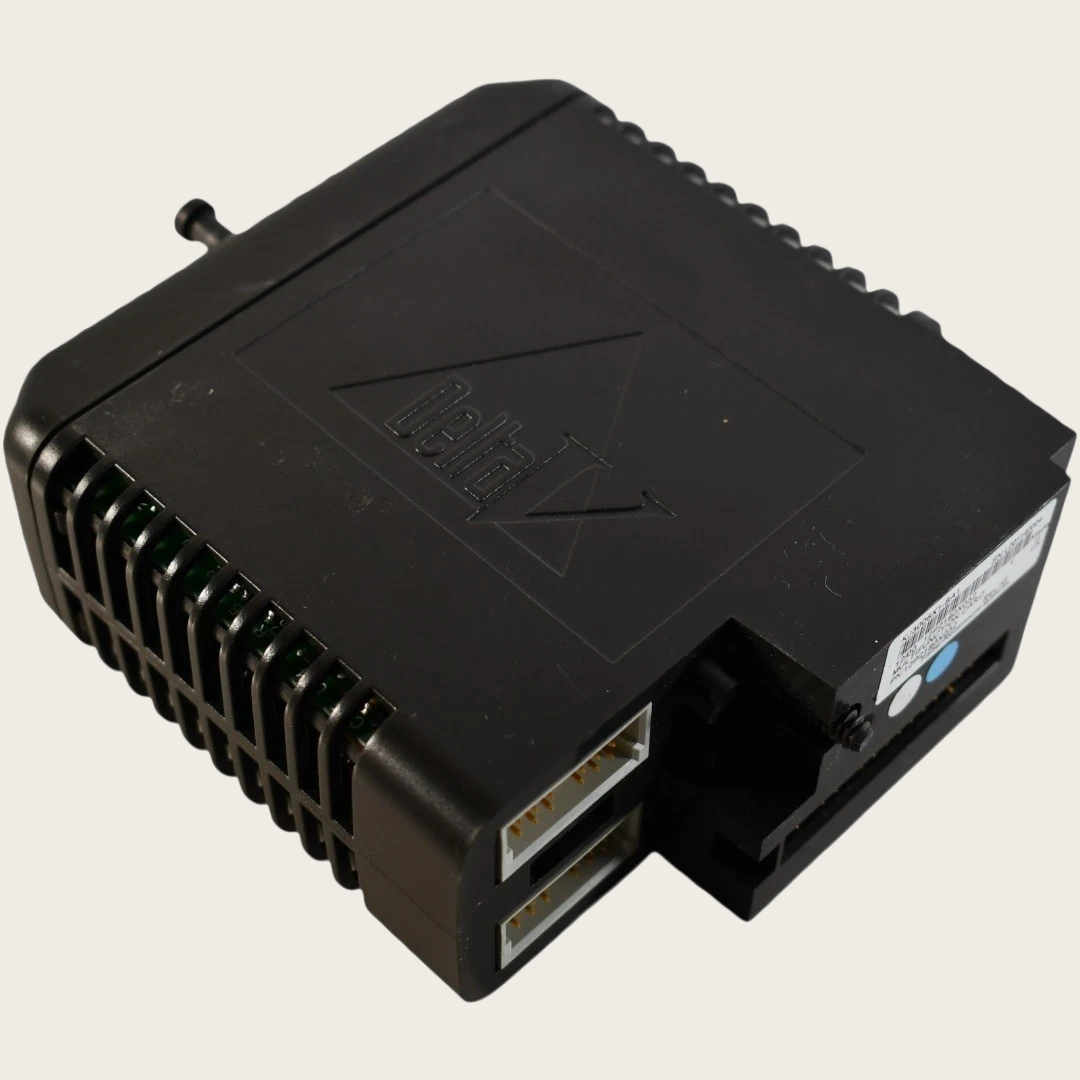

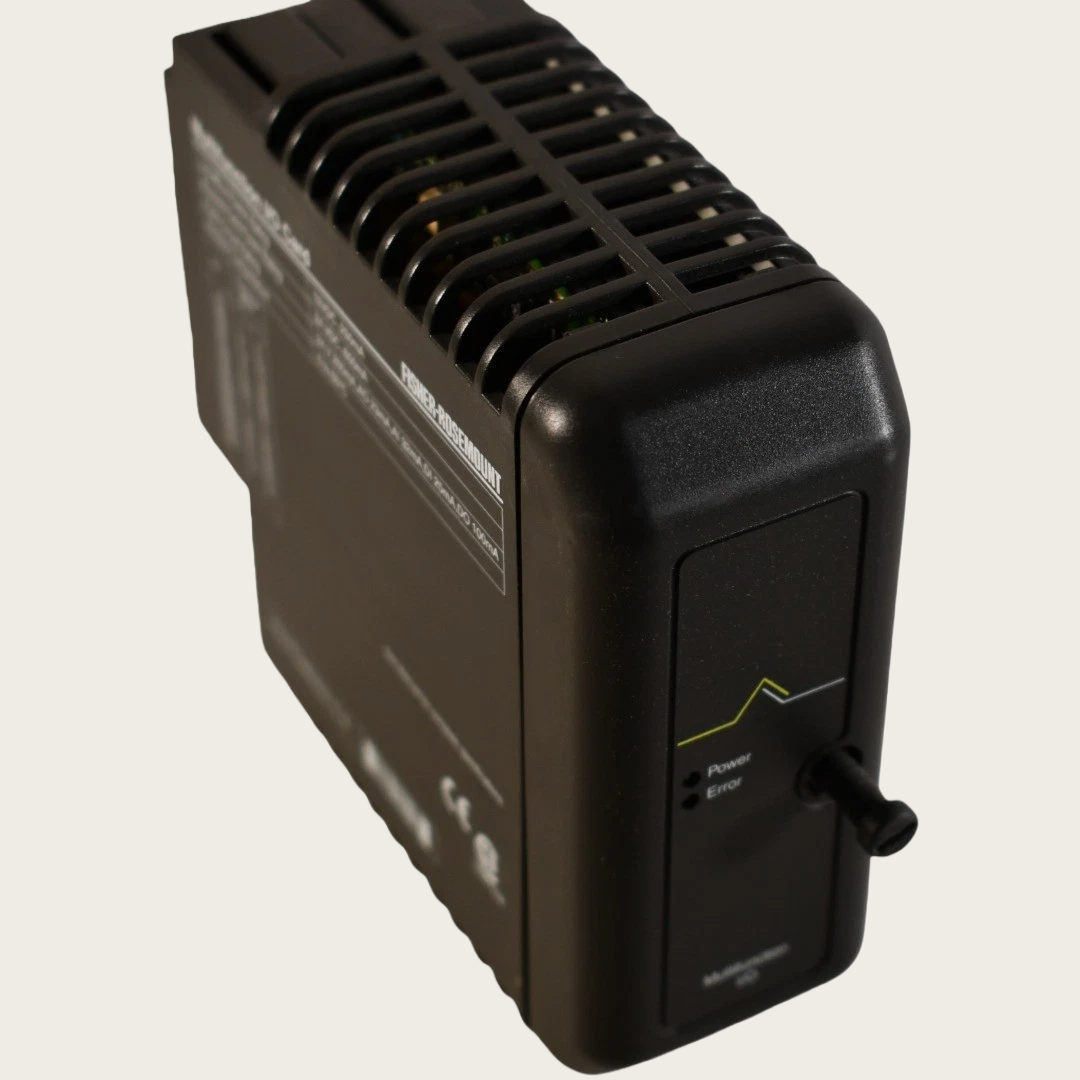

Emerson DeltaV KJ3006X1-BA1 Controller chassis

Emerson DeltaV KJ3006X1-BA1

Emerson DeltaV KJ3006X1-BA1 Product Core Description

Product Name: DeltaV S-Series Controller Chassis

Primary Function:
The KJ3006X1-BA1 is a rugged metal chassis whose core purpose is to house and interconnect the various electronic modules that form a DeltaV S-Series controller. It provides:

1. Physical Support and Protection: It offers mounting space and mechanical protection for the controller modules.

2. Electrical Backplane: The chassis integrates a high-performance backplane, which acts as the controller’s “central nervous system.” This backplane provides power distribution and a high-speed data communication bus for all inserted modules (such as the controller main processor, co-processor, power supply, etc.).

3. Deterministic Control Network: The chassis backplane ensures deterministic and very low-latency communication between all internal components, which is essential for precise and reliable real-time process control.

Key Features and Detailed Explanation

1. Part of the S-Series Controller Platform:

   • The KJ3006X1-BA1 is designed specifically for DeltaV’s S-Series controllers. The S-Series is the highest-performance controller within the DeltaV system, engineered for demanding, high-speed, and complex control applications, such as:

     • Safety Instrumented Systems (SIS)

     • Compressor Control

     • Boiler Burner Management

     • High-Speed Batch Processing

2. Modular Design:

   • The chassis itself is empty and requires specific modules to be inserted to form a complete, functional controller. Typically inserted modules include:

     • Controller Main Processor: The core processor that executes the control logic.

     • Power Supply Module: Provides power to the controller.

     • Co-processor Module: Used to extend control capability or run specific applications (e.g., Advanced Control).

     • Network Interface Module: Used to connect to the control network.

3. High Performance and High Availability:

   • Redundancy Support: The KJ3006X1-BA1 chassis is the foundation for building redundant controller pairs. By pairing two identical chassis (each containing a full set of controller modules), seamless automatic cutover can be achieved, ensuring continuous system operation even if one controller fails, thereby significantly enhancing system availability.

   • High-Speed Backplane: Its backplane provides significantly greater data throughput capability compared to traditional M-Series controllers, supporting the faster scan and execution speeds of the S-Series controllers.

4. Physical Specifications:

   • It is a standard 19-inch rack-mount unit.

   • Typically occupies several rack units (RU) in height.

Position within the DeltaV System Architecture

To understand the KJ3006X1-BA1, it’s helpful to see its place in the overall DeltaV system architecture:

• Operator Station: The Human-Machine Interface (HMI) where operators monitor the process.

• Engineering Station: The computer used to configure and maintain the system.

• Control Network: The Ethernet network connecting all nodes.

• Controller (formed by the KJ3006X1-BA1, etc.): The “brain” of the system, residing below the control network and executing user-programmed control logic.

• I/O Subsystem: The controller communicates with field sensors (e.g., temperature, pressure transmitters) and actuators (e.g., valves, motors) through I/O cards.

In simple terms: The KJ3006X1-BA1 is the “skull and spine” that houses the controller’s “brain.”
