EMERSON DeltaV KL1502X1-BA1 PK

EMERSON DeltaV KL1502X1-BA1 PK

It is a relay output terminal for DeltaV system S series I/O subsystem

1. Core Product Overview

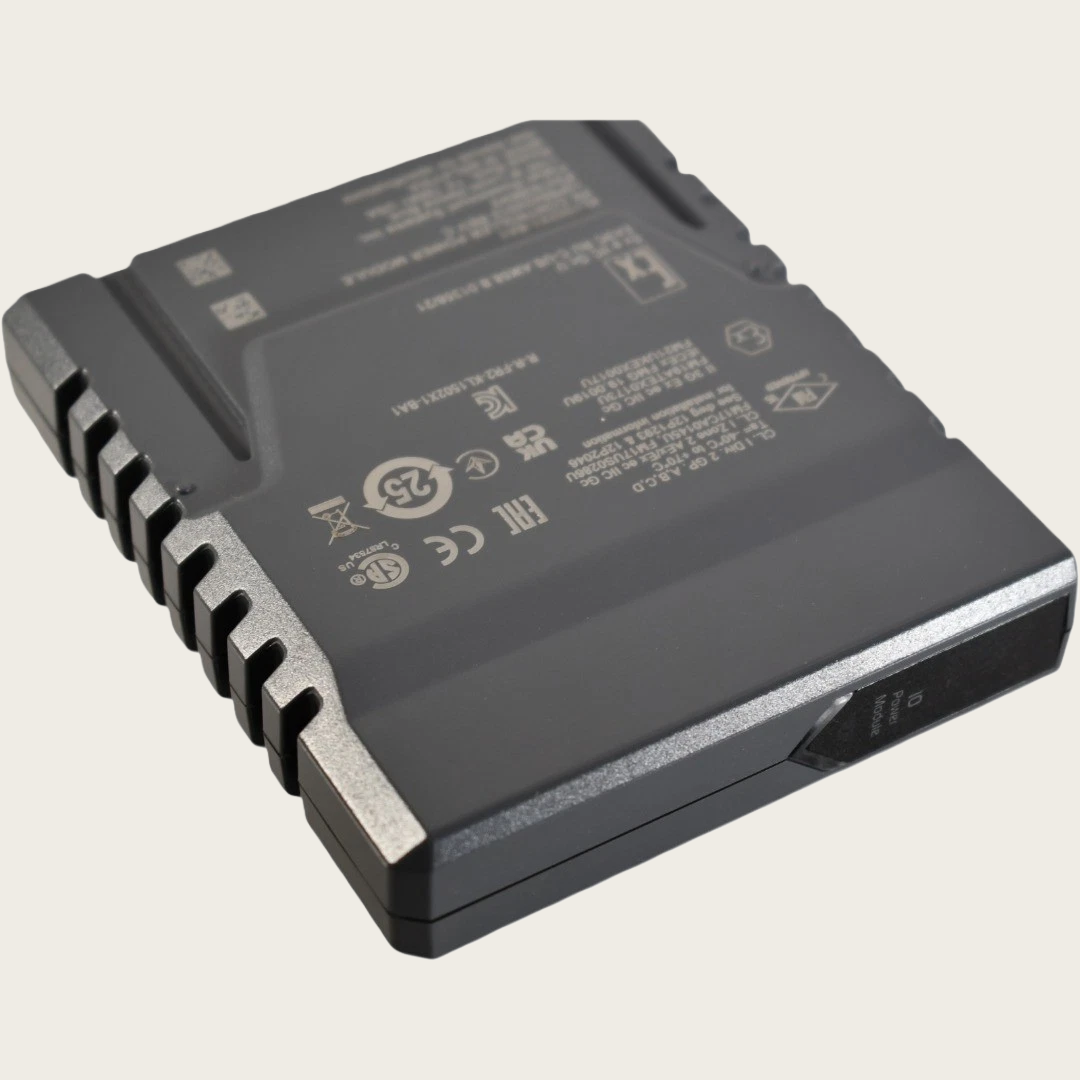

EMERSON DeltaV KL1502X1-BA1 PK is a Relay Output Terminal Board for the DeltaV system S-series I/O subsystem.

In simple terms, it is an electronic switch. It receives a low-voltage, low-current digital signal from the DeltaV control system (via its backplane) and then uses its integrated relays to control field devices requiring higher voltage or current (such as motors, indicator lamps, solenoid valves, etc.) by turning them on and off.

• Brand: EMERSON

• System Platform: DeltaV (Distributed Process Control System)

• Product Line: S-series I/O (A high-performance, high-density I/O subsystem)

• Function: Relay Output

• Model/Part Number: KL1502X1-BA1 PK (Where “PK” may indicate specific packaging, version, or regional code)

2. Key Functions & Features

• Electrical Isolation: This is one of the most critical functions of a relay module. It completely isolates the low-voltage circuits of the DeltaV control system (typically 24V DC) from potentially high-voltage, high-noise field circuits (e.g., 120V AC), protecting the sensitive controller and I/O cards from field interference and damage.

• Signal Conversion & Amplification: Converts and amplifies weak digital signals from the controller card (e.g., 24V DC ON/OFF) into stronger signals capable of driving high-power loads (e.g., 120V AC, 2A).

• Dual-Channel Design: The KL1502 module typically provides two independent relay output channels. Each channel can be programmed and controlled individually.

• Relay Status Indication: The module is equipped with LED indicators for each channel, providing a clear visual display of the current state (energized or de-energized) of each relay, facilitating easy field maintenance and troubleshooting.

• Plug-in Relay: Many DeltaV relay modules (including possible variants of this model) use plug-in relays. If a relay wears out, only the relay itself needs to be replaced, avoiding the cost of replacing the entire terminal board and saving on maintenance.

• Hot-Swappable: As part of the S-series I/O, this terminal board supports hot-swapping. This means it can be installed or removed from the I/O marshalling base without powering down the entire control system.

3. Typical Technical Specifications

The following are general specifications based on this product series (please consult the official datasheet for precise details):

• Input Signal (from Controller Side):

  • Voltage: Typically 24V DC (supplied by the DeltaV I/O card)

  • Type: Digital Output (DO)

• Output (to Field Device Side):

  • Type: Dry Contact (Form C – SPDT: Normally Open, Normally Closed, Common)

  • Contact Rating (Rated Load): This is a key parameter, typically for example:

    • 2A @ 120V AC

    • 2A @ 24V DC

    • (Confirm specific maximum current and voltage from the manual; do not exceed limits)

• Mounting: Installs in a terminal board slot on a DeltaV S-series I/O marshalling base.

• Wiring: Field wiring is connected via a removable terminal block, simplifying installation and maintenance.

4. Role and Application Scenarios in the Control System

Role:
It acts as the “Bridge” and “Protector” between the DeltaV control system and high-power field actuation devices.

Typical Application Scenarios:

• Motor Control: Starting/stopping pumps, fans, compressors.

• Valve Control: Opening/closing solenoid valves to operate pneumatic or hydraulic actuators.

• Indicators and Alarms: Controlling indicator lights, buzzers on operator panels, or field beacon alarms.

• Heater Control: Switching large-power heating elements on/off via a contactor.

5. System Integration

To function, it must work in concert with other DeltaV components:

1. DeltaV Controller: Executes the control logic and decides when to send an “ON” or “OFF” command.

2. S-series I/O Card: For example, a Digital Output (DO) card that receives the command from the controller.

3. S-series I/O Marshalling Base/Chassis: The KL1502X1-BA1 PK plugs into a specific slot on this base.

4. Power Supply: Provides power to the entire I/O subsystem.

5. Field Device: The end equipment mentioned above, such as motors, valves, and indicators.
