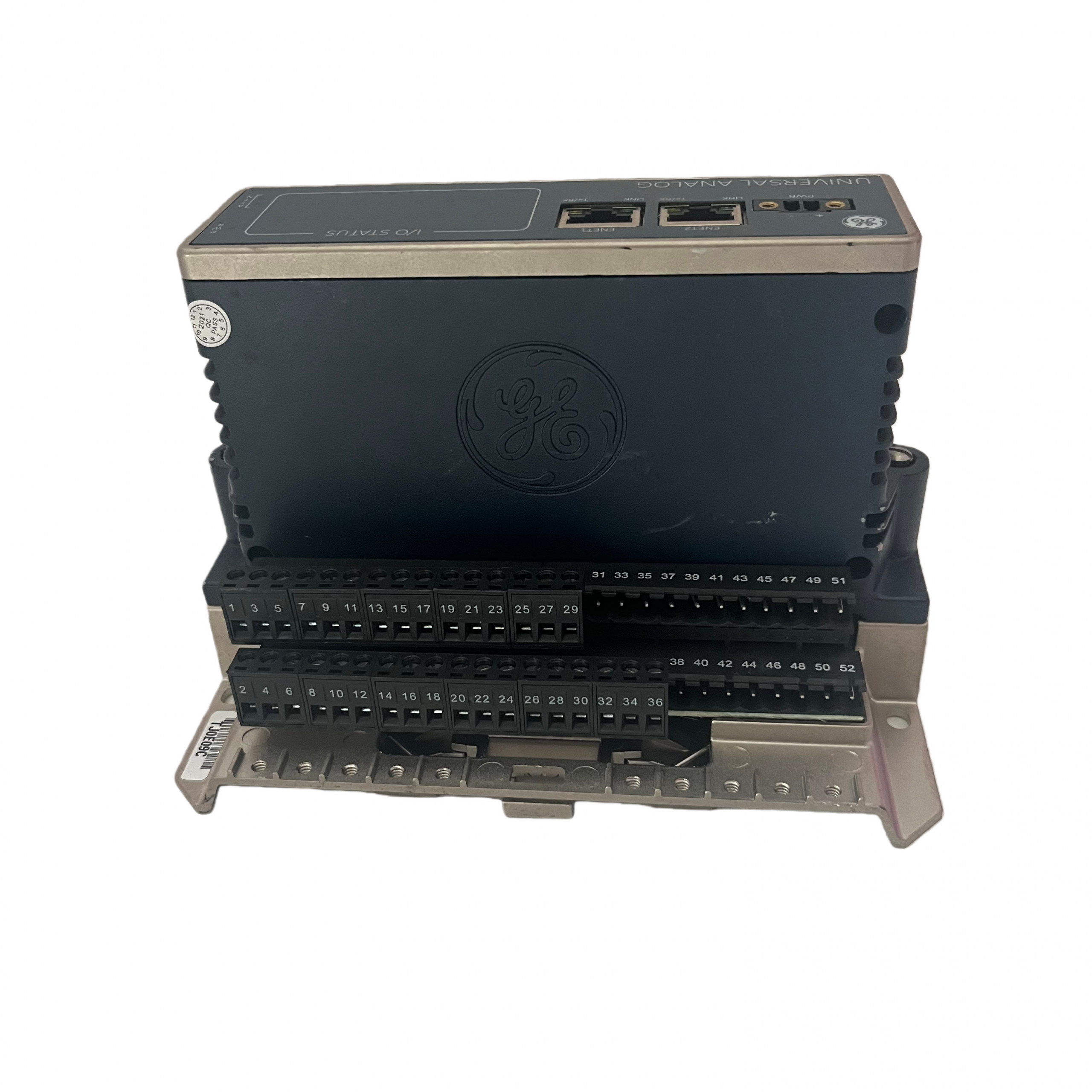

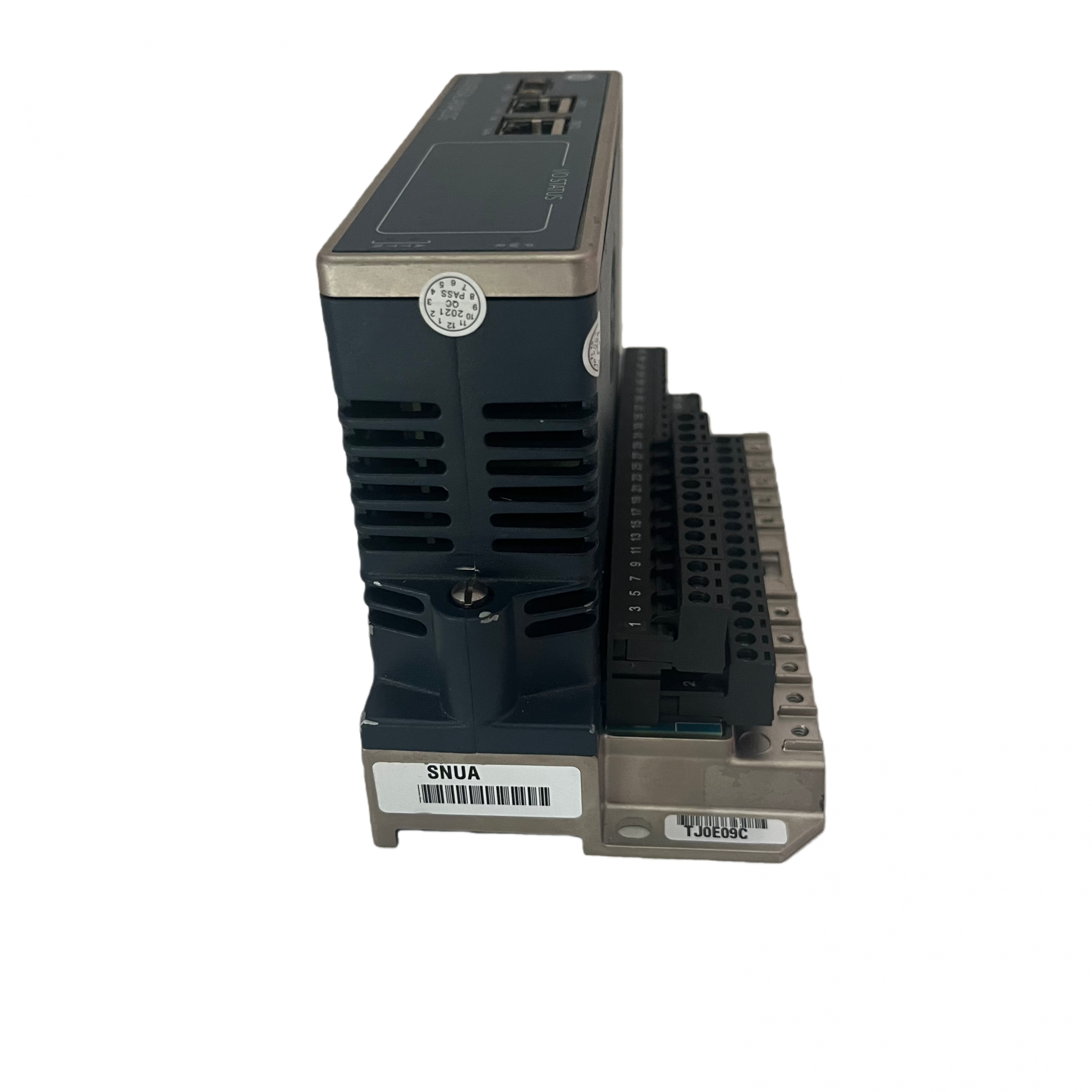

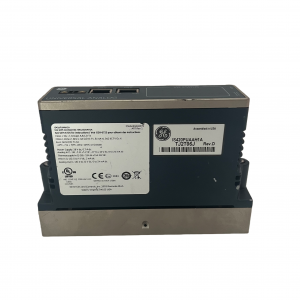

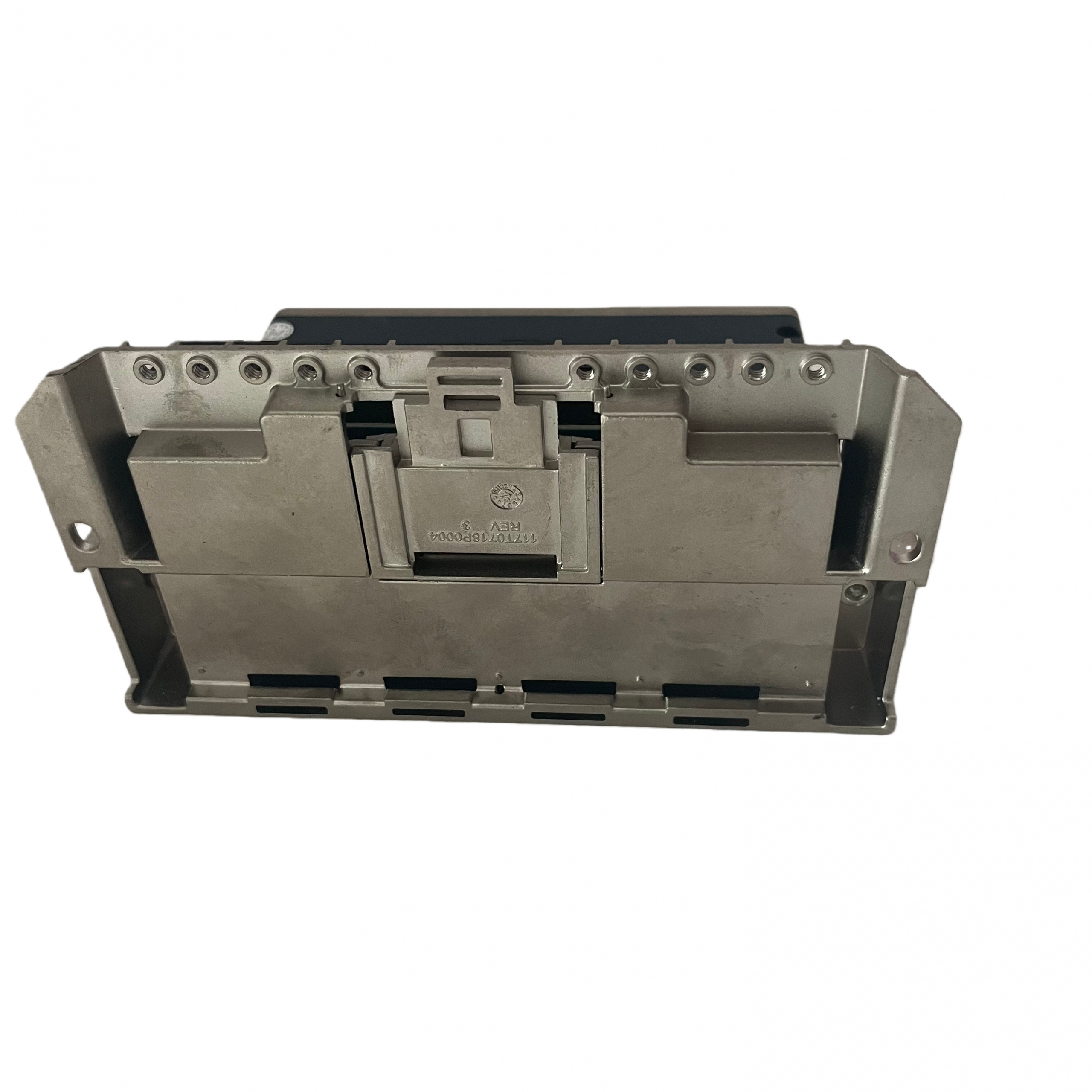

GE IS420PUAAH1A Analog input module

GE IS420PUAAH1A Analog input module

This analog input module is part of the PACSystem RX3i series, manufactured by FANUC Automation, a General Electric (GE) company. It is a high-performance module used to convert continuous analog signals (such as temperature, pressure, flow, and level) from field devices into digital signals for processing and logic control by the PACSystem RX3i programmable automation controller (PLC).

Detailed Product Description

1. Product Name and Model Number Breakdown

• Manufacturer: General Electric (GE)

• Product Series: PACSystem RX3i

• Model Number: IS420PUAAH1A

• Product Type: Analog Input Module

2. Key Features and Characteristics

• Channel Count: 8 differential analog input channels.

• Signal Types: Highly flexible, supporting various analog signals:

  • Voltage Signals: e.g., ±10V DC, 0-5V DC, 0-10V DC

  • Current Signals: e.g., 0-20mA, 4-20mA (most common, with wire-break detection)

  • Resistance Signals: For connecting sensors like Resistance Temperature Detectors (RTDs).

• Resolution: 16-bit high resolution. This allows it to quantize an analog signal into 65,536 distinct digital values, ensuring high measurement accuracy.

• Configurability: Each channel can be independently configured for different signal types and ranges via software (in GE’s Proficy Machine Edition), eliminating the need for hardware changes.

• Data Format: Uses scaled integer or floating-point values in engineering units for data transmission, making it easy to use within the controller program.

• Isolation: The module provides channel-to-channel and channel-to-backplane isolation. This helps reduce noise interference and improves system stability and reliability in harsh industrial environments.

• Diagnostics: Features robust diagnostic capabilities, including power-on self-test, channel wire-break detection (crucial for 4-20mA loops), over-range/under-range alarms, etc., facilitating quick fault finding.

• Connection: Connects to field devices via a removable 40-pin front connector, simplifying installation and maintenance.

3. Role in a Control System

Within a PACSystem RX3i control system, the IS420PUAAH1A module is installed in a specific slot of the rack. Its primary role is to act as the “sensory organ” for the controller, acquiring various continuous process variables from the field, such as:

• 4-20mA signals from pressure transmitters

• Temperature signals from thermocouples or RTDs (often requiring a temperature transmitter)

• Analog signals from flow meters

• Signals from level transmitters

• Voltage signals from analog potentiometers

The controller reads these digitized values and performs calculations based on the user-written control program (e.g., PID control). It then commands output modules (like analog or digital output modules) to control actuators (e.g., control valves, variable frequency drives), forming a complete closed-loop control system.

4. Typical Application Industries

This module is widely used in industries requiring high-precision process control and monitoring, including but not limited to:

• Oil & Gas

• Water & Wastewater Treatment

• Chemical Industry

• Pharmaceutical Industry

• Power Generation (Thermal, Nuclear)

• Manufacturing (e.g., Automotive, Food & Beverage)

5. Important Notes

• Programming Software: Configuring and programming this module requires GE’s Proficy Machine Edition software.

• Compatibility: It is designed specifically for the PACSystem RX3i platform and is not compatible with other GE PLC series (e.g., 90-30 or VersaMax).
