GE PCI-5565PIORC-110000 Communication interface module

GE PCI-5565PIORC-110000

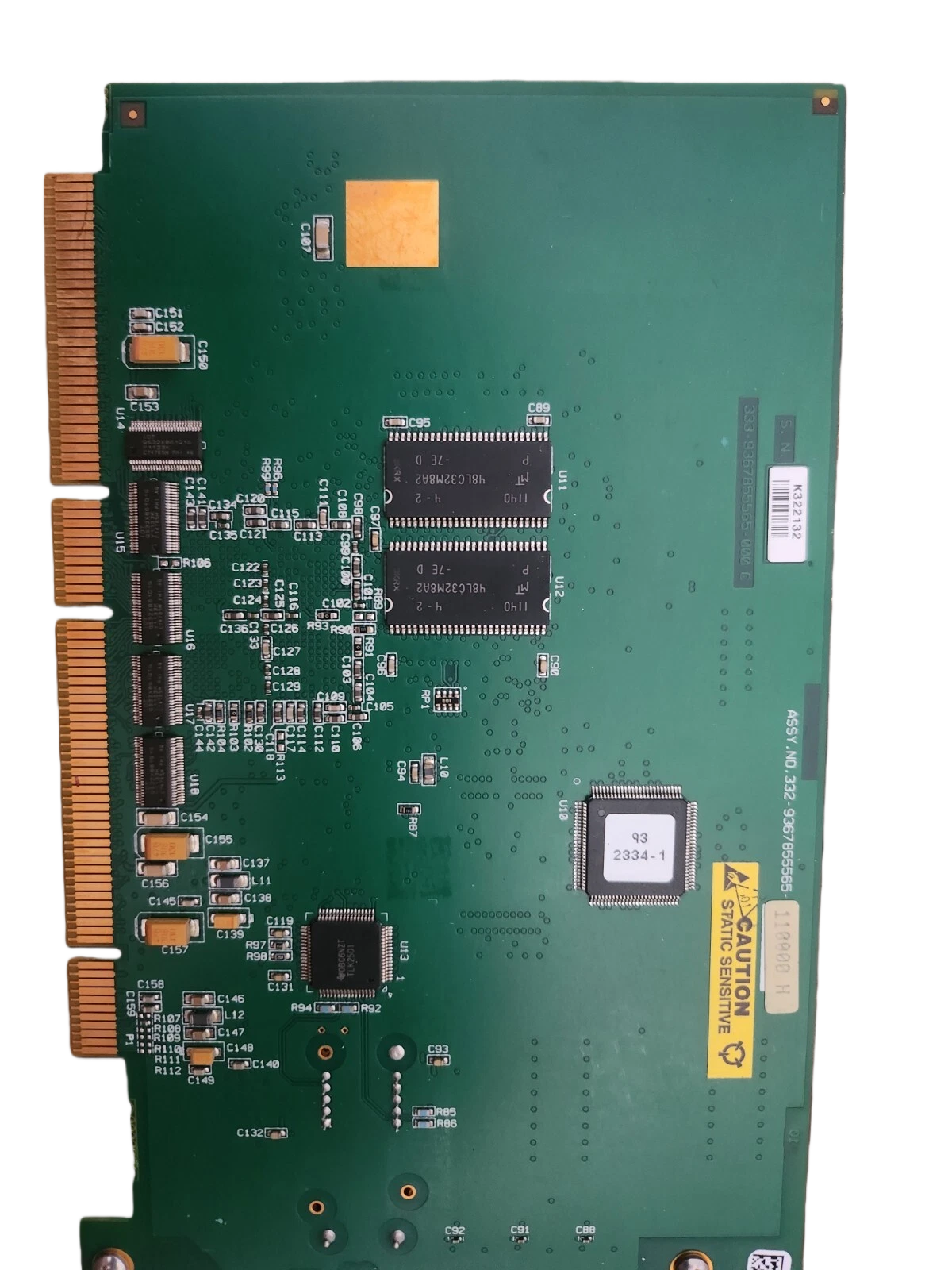

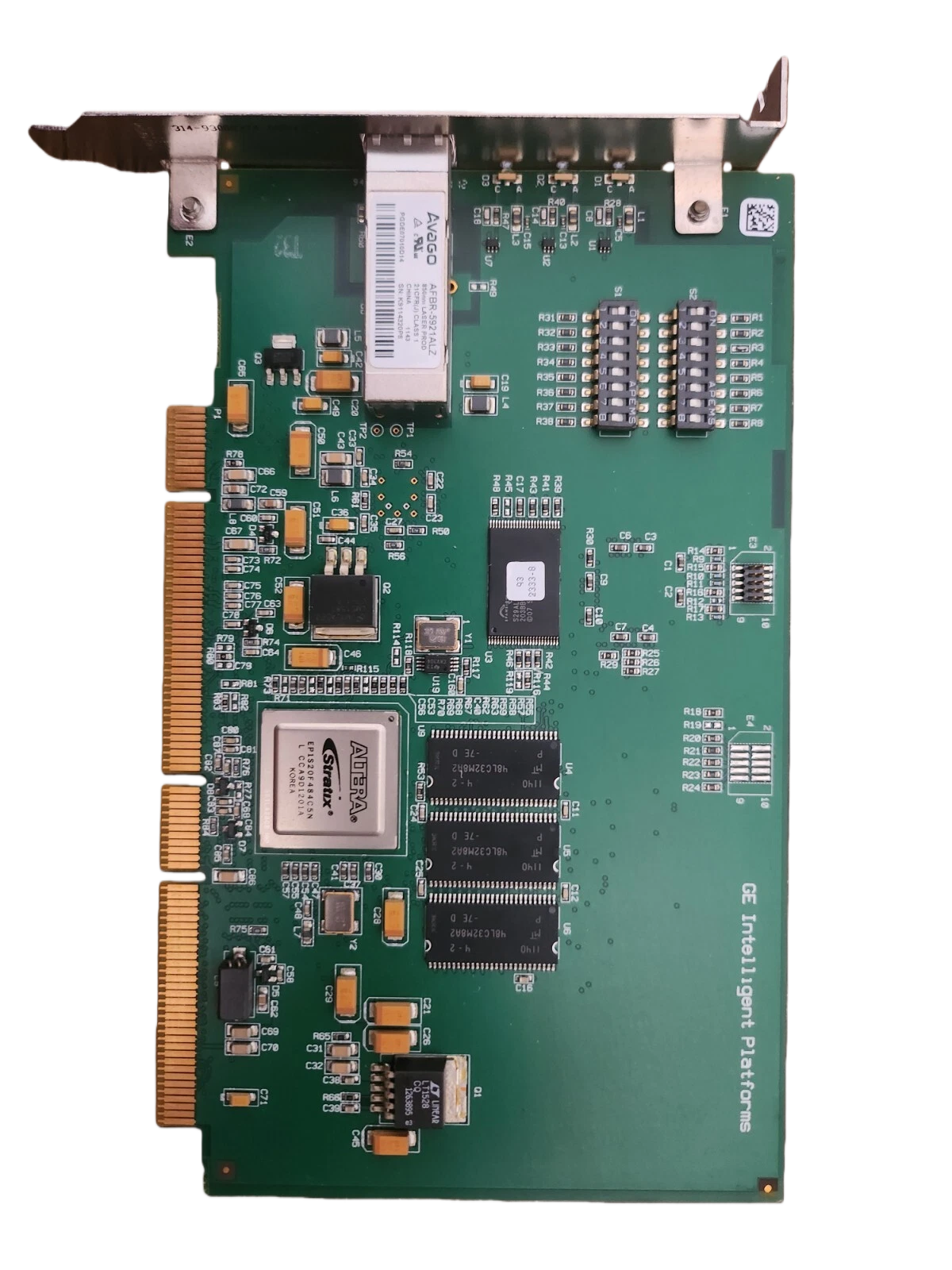

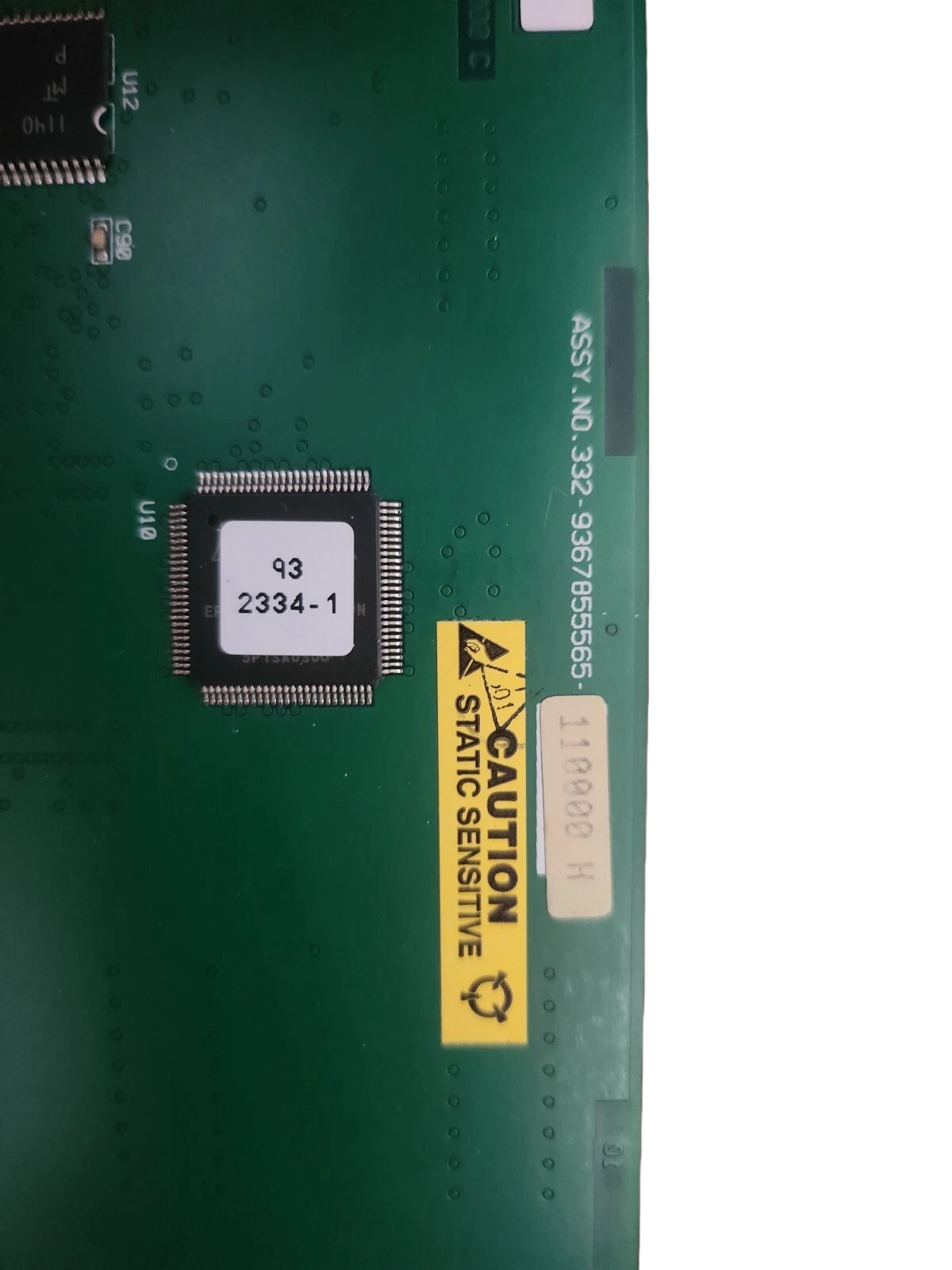

This industrial circuit board manufactured by General Electric (GE) belongs to the 5565 series reflective memory product line. It uses a standard PCI interface and is a half-length card design for easy installation and integration.

• Basic Information: It is an industrial circuit board manufactured by General Electric (GE), belonging to the 5565 Series Reflective Memory product line. It adopts a standard PCI interface and features a half-length card design, facilitating easy installation and integration.
• Performance Parameters
  • Memory Capacity: Typically equipped with 128MB of on-board SDRAM reflective memory for storing shared data.
  • Transfer Rate: The optical fiber rate is 2.12Gbit/s. The data transfer rate can reach up to 170MByte/s (for 64-byte data packets) and a minimum of 43MByte/s (for 4-byte data packets).

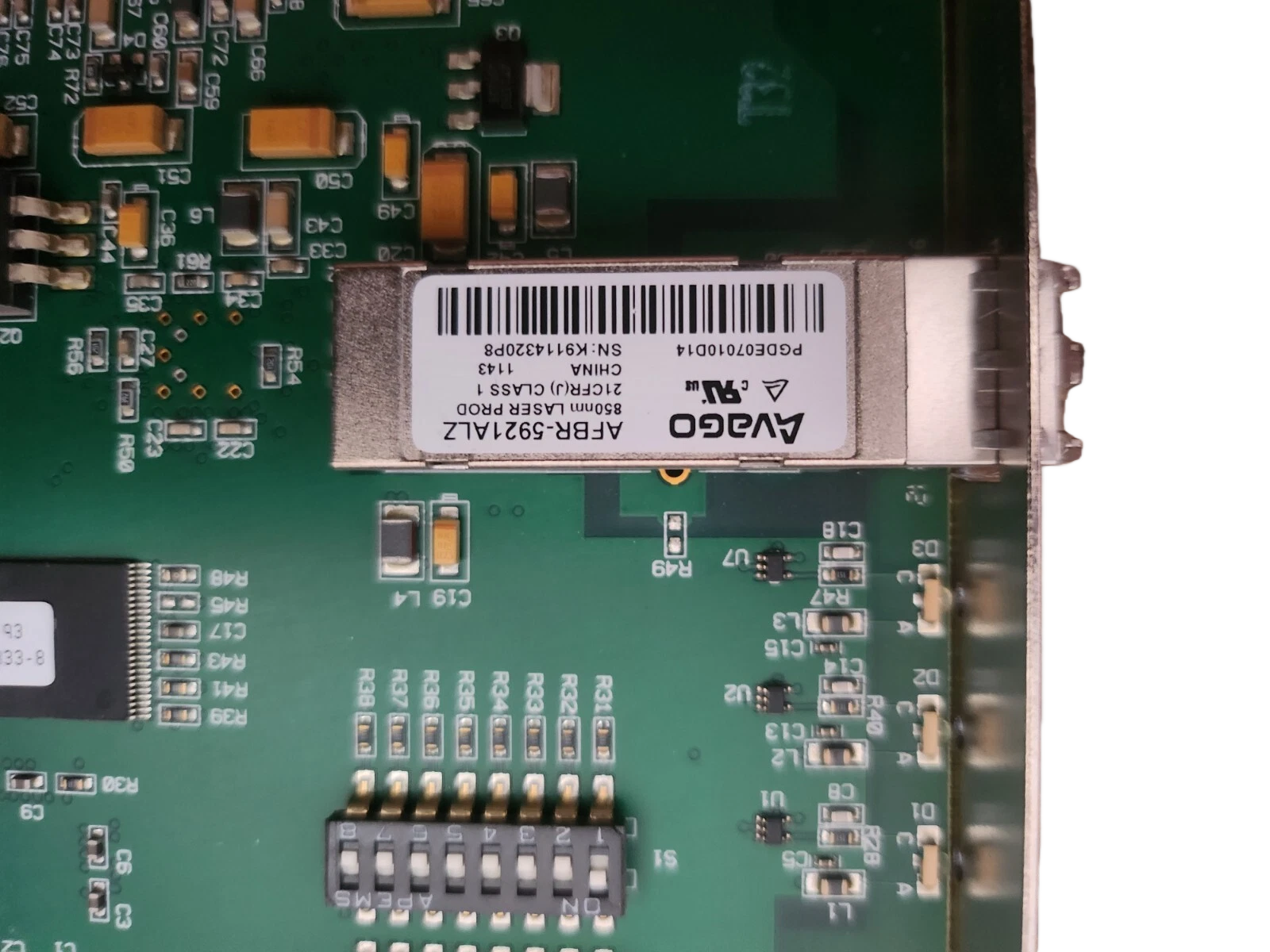

  • Transmission Distance: When using single-mode optical fiber, the transmission distance can reach up to 10 kilometers.
  • Node Count: Supports up to 256 data sharing nodes, enabling data sharing among multiple independent systems.
  • Interface Type: Compatible with 33MHz/66MHz 64-BIT/32-BIT PCI bus, supporting 3.3V and 5.0V voltage levels.
• Functional Features
  • Automatic Data Packet Size Adjustment: Can automatically adjust the data packet size according to different data streams, ranging from 4 to 64 bytes.
  • Redundant Transmission Mode: Offers an optional redundant transmission mode to enhance the reliability and stability of data transmission.
  • Error Detection Function: Built-in error detection and management functions to prevent data loss. It supports a checksum function to ensure data integrity and accuracy.
  • Automatic Synchronization Function: Supports an automatic synchronization function to ensure data consistency between different nodes.
• Application Areas: Widely used in fields such as high-speed data transmission, network communication, and computer storage. It can be applied in real-time applications including simulation and training, industrial process control, and data streaming and acquisition. It also meets the high-availability redundancy requirements in commercial, telecommunications, military, and aerospace sectors.
