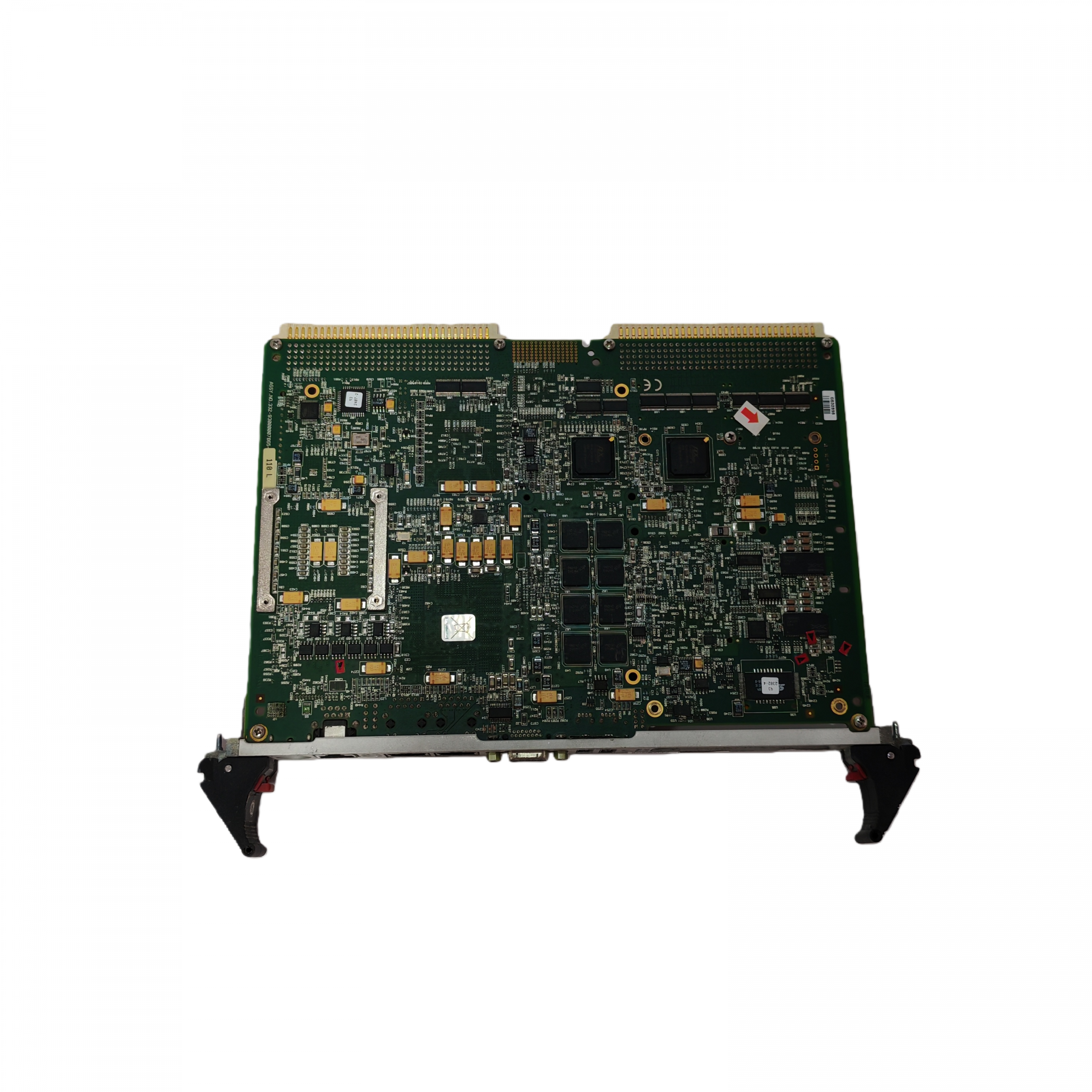

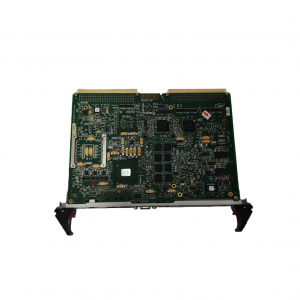

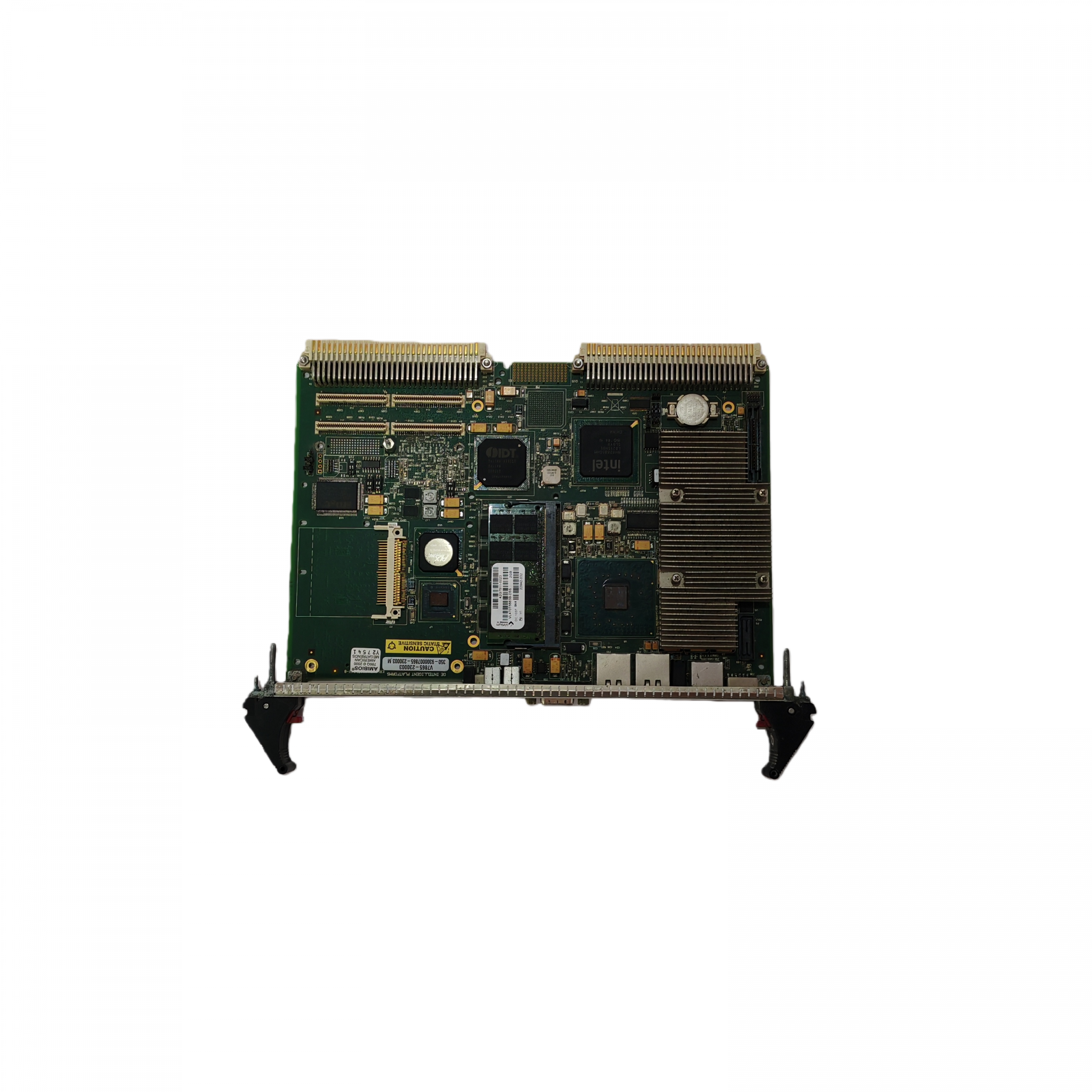

GE VME7865RC V7865-23003 350-9300007865-230003 M

It is a CPU control module, usually used in VMEbus (Versa Module Europa Bus) system, which is an industrial standard bus system widely used in high-performance computing and control fields.

• Processor Performance: Equipped with a high-performance central processing unit, such as an Intel Core/Core 2 Duo processor. The core processor speed can reach up to 2.16GHz, providing strong computing power to meet the needs of application scenarios with high computing requirements.
• Memory Configuration: Supports large-capacity memory. For example, it can be configured with 3GB of DDR2 SDRAM, and also has 1GB of on-board memory and a 2GB SODIMM (one 200-pin SODIMM DDR2 module). Additionally, it supports up to 4GB of CompactFlash storage, and the CompactFlash can be configured as a boot device via BIOS.
• Rich Interfaces: Comes with a variety of input/output interfaces, including two Gigabit Ethernet ports, two RS232/422 ports, four USB 2.0 ports and one Serial ATA interface. These interfaces facilitate connection with external devices and data transmission.
• Bus Standard: Complies with the ANSI/VITA 1.5-2003 standard based on Tundra Tsi148. The VMEbus can operate at a bandwidth of up to 320MB/s over the full length of a 21-slot backplane. Its transmission performance is 8 times faster than VME64 and 3 times faster than the multi-domain 64-bit/66MHz CompactPCI bus.
• Reliability and Durability: Adopts an industrial-grade design, enabling stable operation under harsh environmental conditions and having strong anti-interference capabilities. Meanwhile, it has a built-in effective heat dissipation system to ensure long-term stable operation.
• Graphics Display Support: Supports high-resolution graphics and multimedia-quality video. It uses an internal graphics controller of the 945GM/945GME (GMCH) chipset. The screen supports a resolution of up to 1600×1200×256 colors (single-view mode) and is equipped with a Digital Video Interface (DVI-D).
• Compatibility and Scalability: Highly compatible with other VMEbus components, making it easy to integrate into existing VMEbus systems. It also supports multiple expansion slots, which can be used to add additional functional modules or expansion cards to meet the expansion needs of different applications.
• Software Support: Generally supports mainstream operating systems and development environments, facilitating software development and system integration, and simplifying relevant workflow processes.
