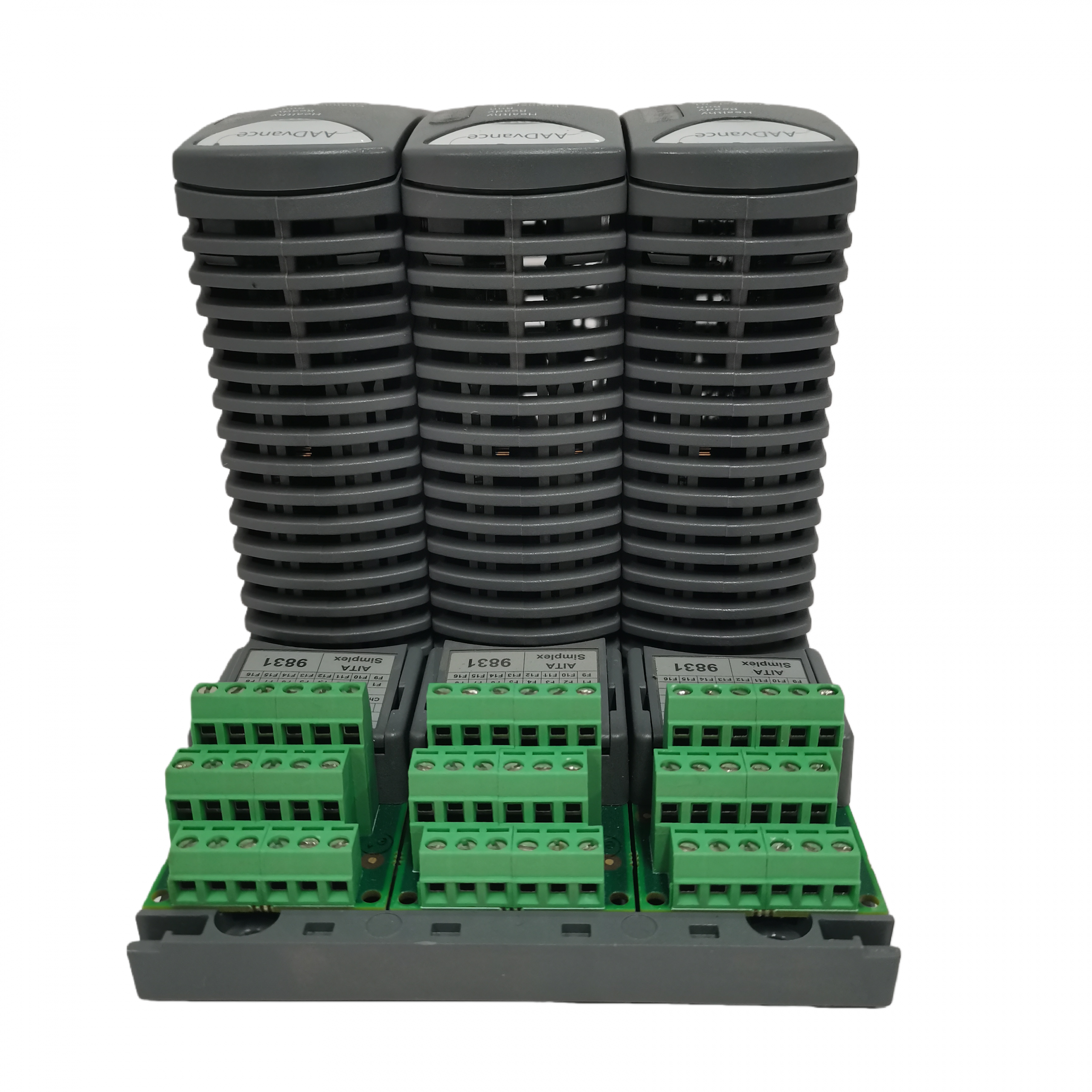

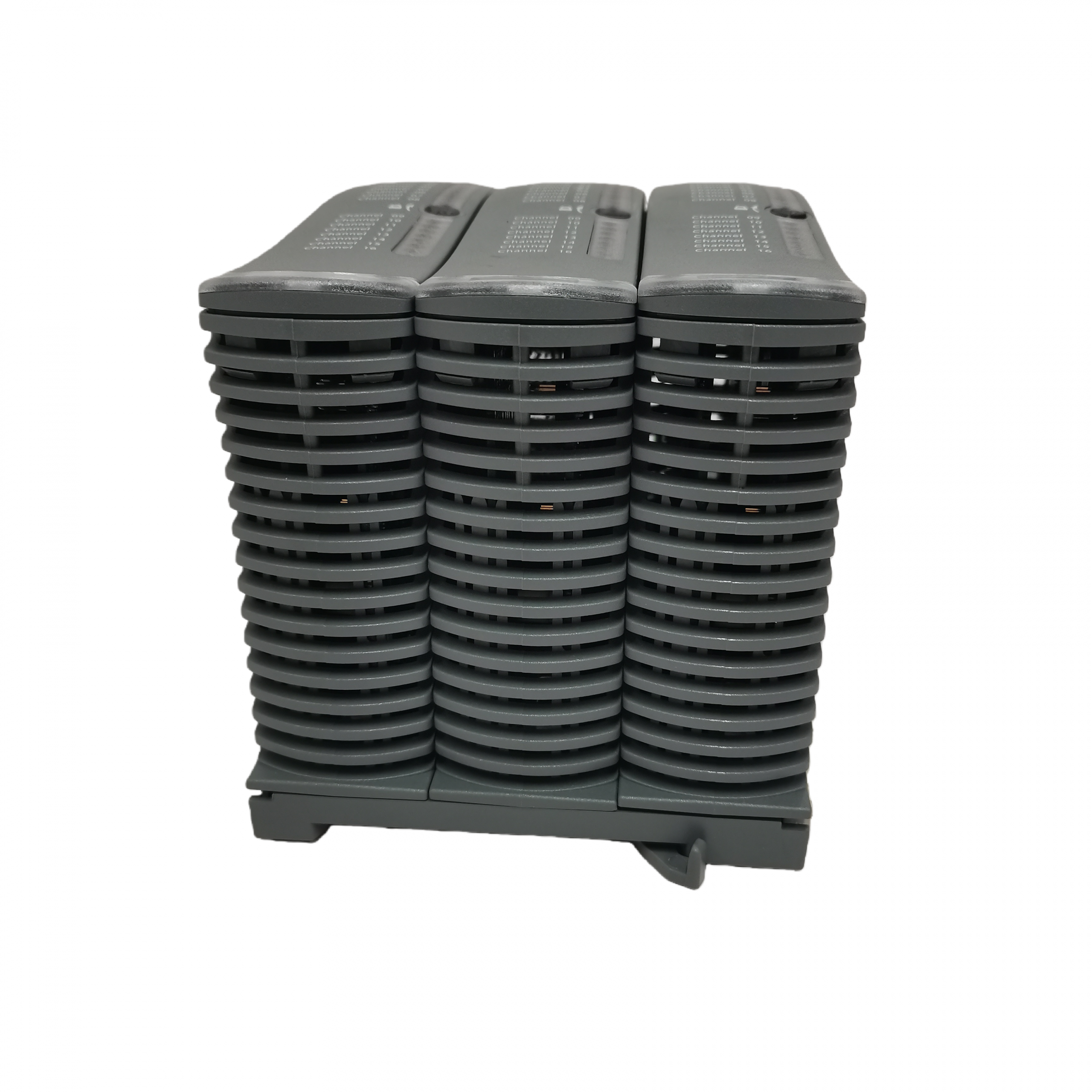

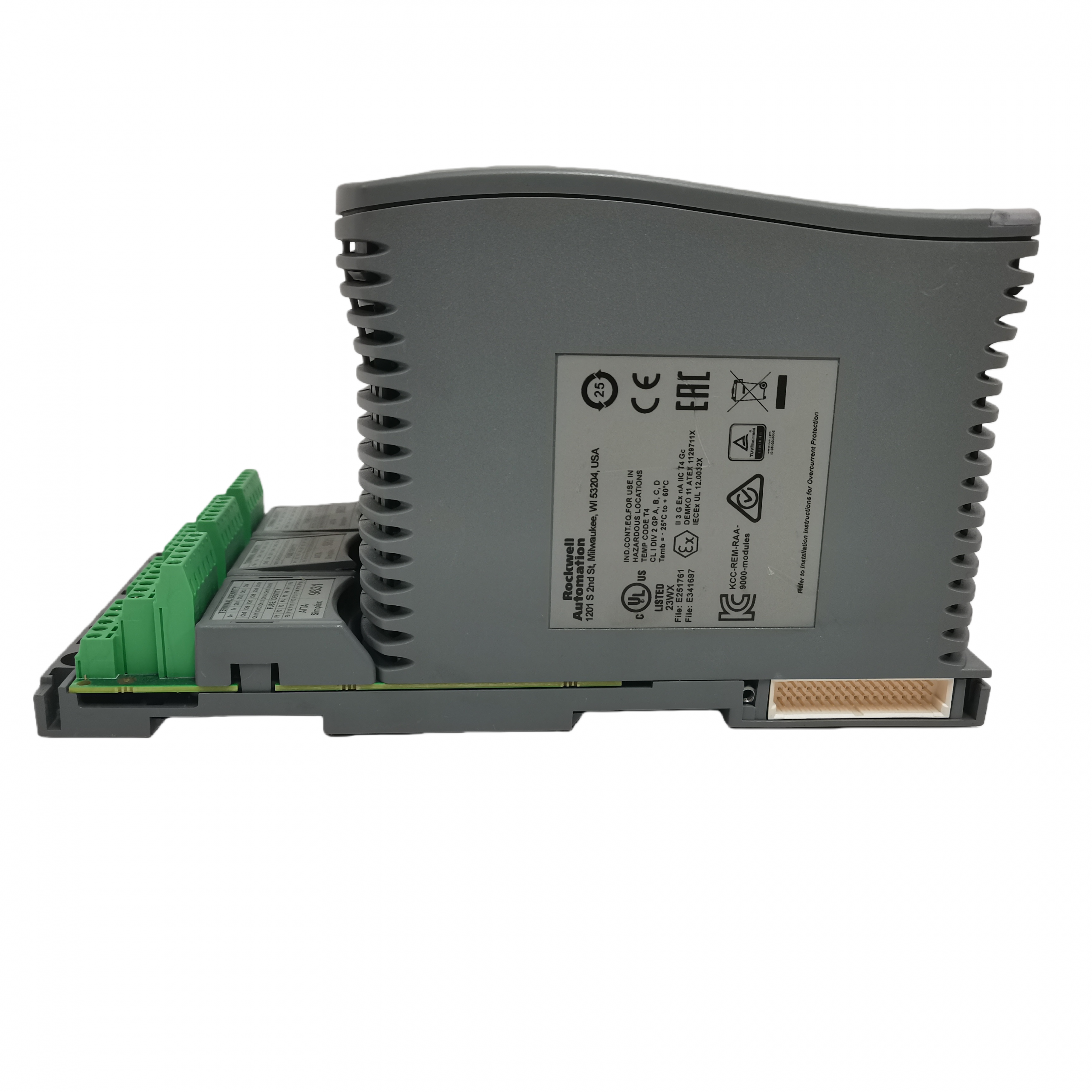

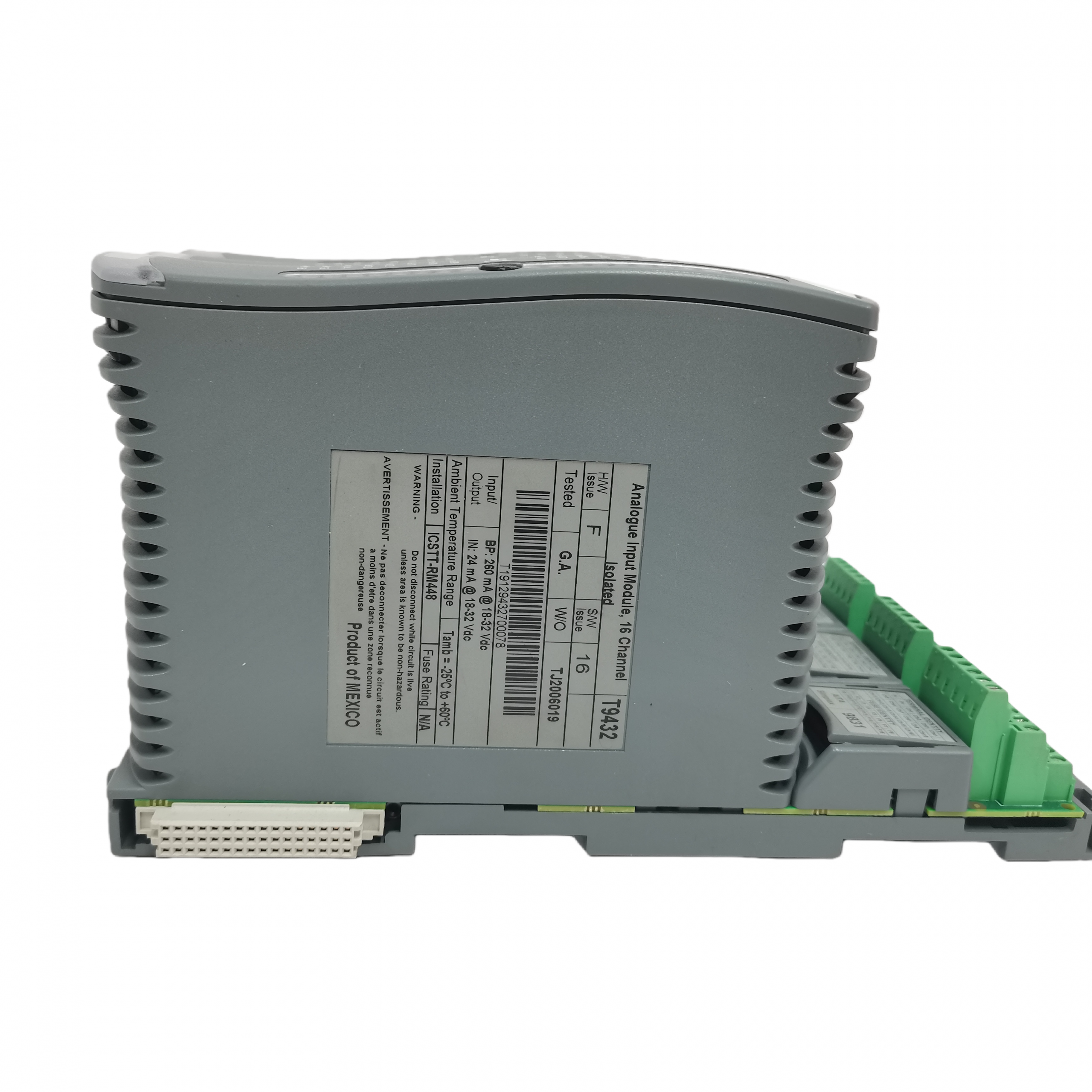

ICS TRIPLEX T9432 T19109300680460 Analog input modules

ICS TRIPLEX T9432 T19109300680460

• Basic Information: Manufactured by ICS TRIPLEX, with origin in the United States, it is categorized as an analog input module.
• Channel Parameters: There are two versions documented. Some sources indicate it is a 16-channel analog input module supporting signal inputs such as 0-10V and 4-20mA. Other sources state it has 8 input channels, with configurable input types (differential or single-ended). Its input voltage ranges include ±10V and ±5V, while current ranges cover 0-20mA and 4-20mA.
• Performance Specifications: Typically features 16-bit resolution and an accuracy of ±0.1% FSR (typical value). The sampling rate is configurable, reaching up to 100ms per channel (typical value).
• Functional Features: Adopts a fully Triple Modular Redundant (TMR) fault-tolerant system design. Implements fault tolerance (HIFT) and voting functions through hardware to enhance system safety and availability. Equipped with comprehensive automatic diagnostic and self-test capabilities to monitor line open circuits, short circuits, and load faults. It also includes an on-board Sequence of Events (SOE) reporting function with a resolution of 1ms.
• Electrical Characteristics: Some T9432 modules have an input range of 4-20mA, 15-bit resolution, 10ms update rate, and 4W power consumption. They feature high isolation of 1.5kVdc and redundant power supplies.
• Operating Environment: Operates at a temperature range of -40°C to +70°C, with a storage temperature range of -40°C to +85°C. The relative humidity ranges from 5% to 95% RH, non-condensing.
• Application Fields: Widely used in industries such as petroleum, chemical, power, and pharmaceutical. It is utilized for collecting analog signals (e.g., temperature, pressure, flow) to achieve precise control and safety monitoring of production processes.
