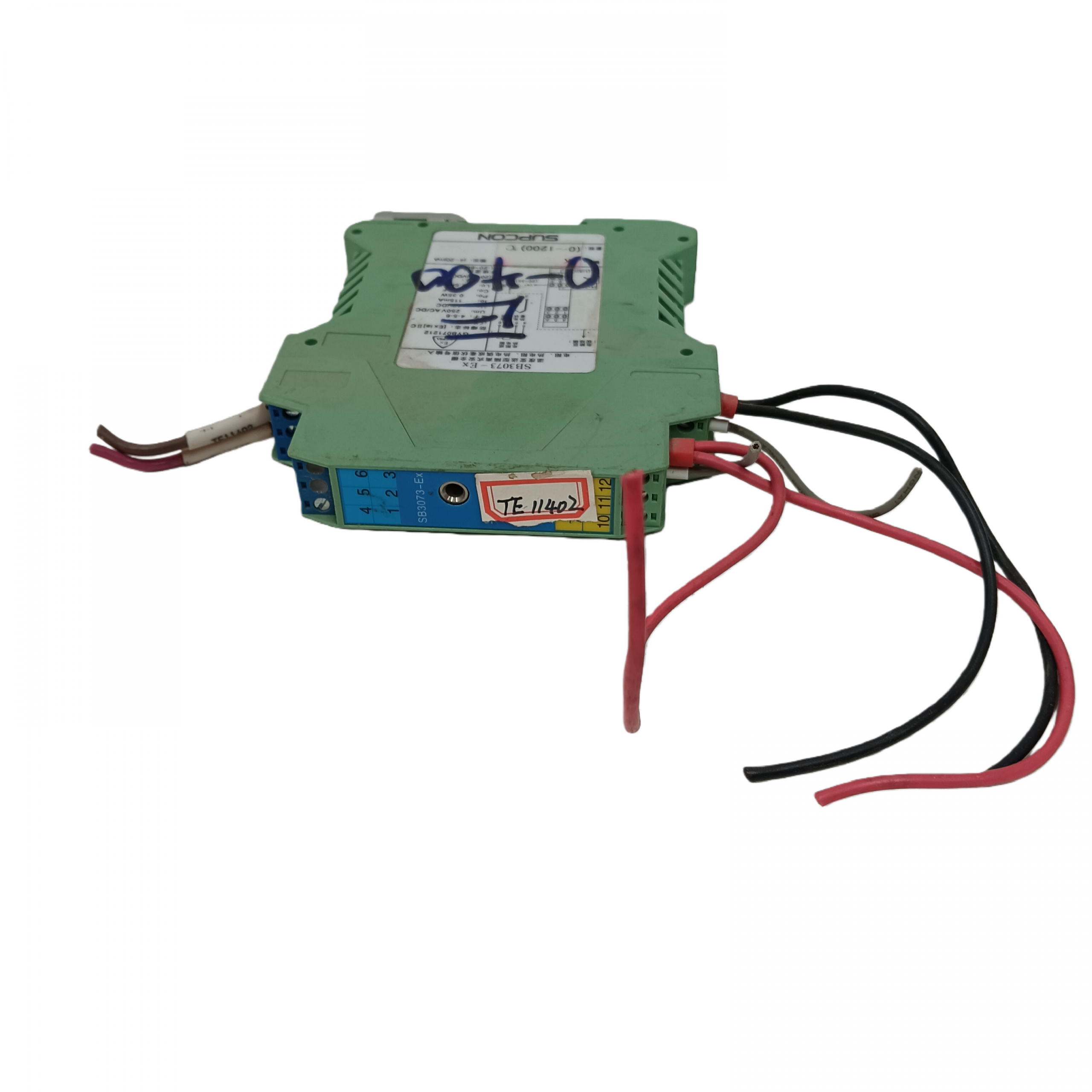

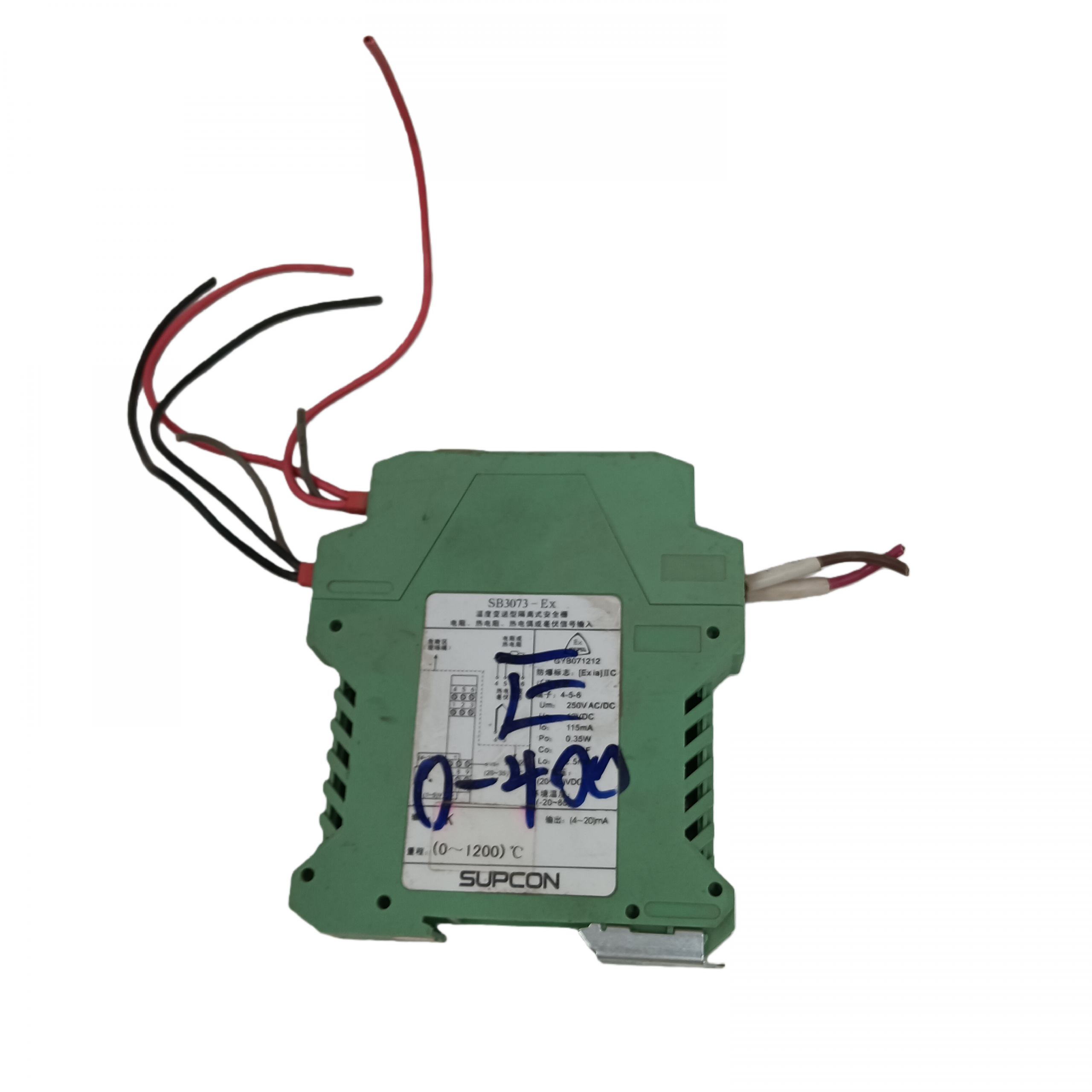

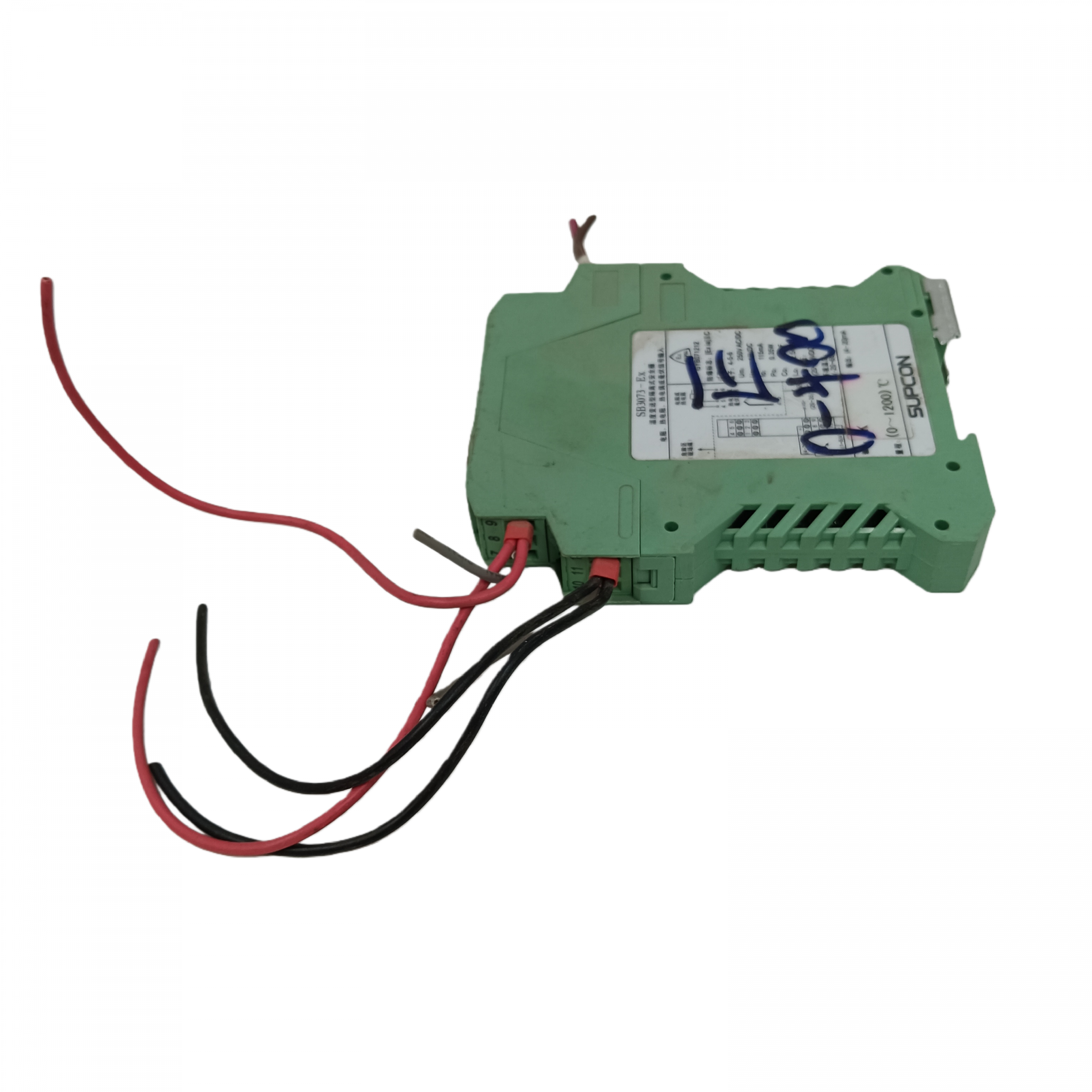

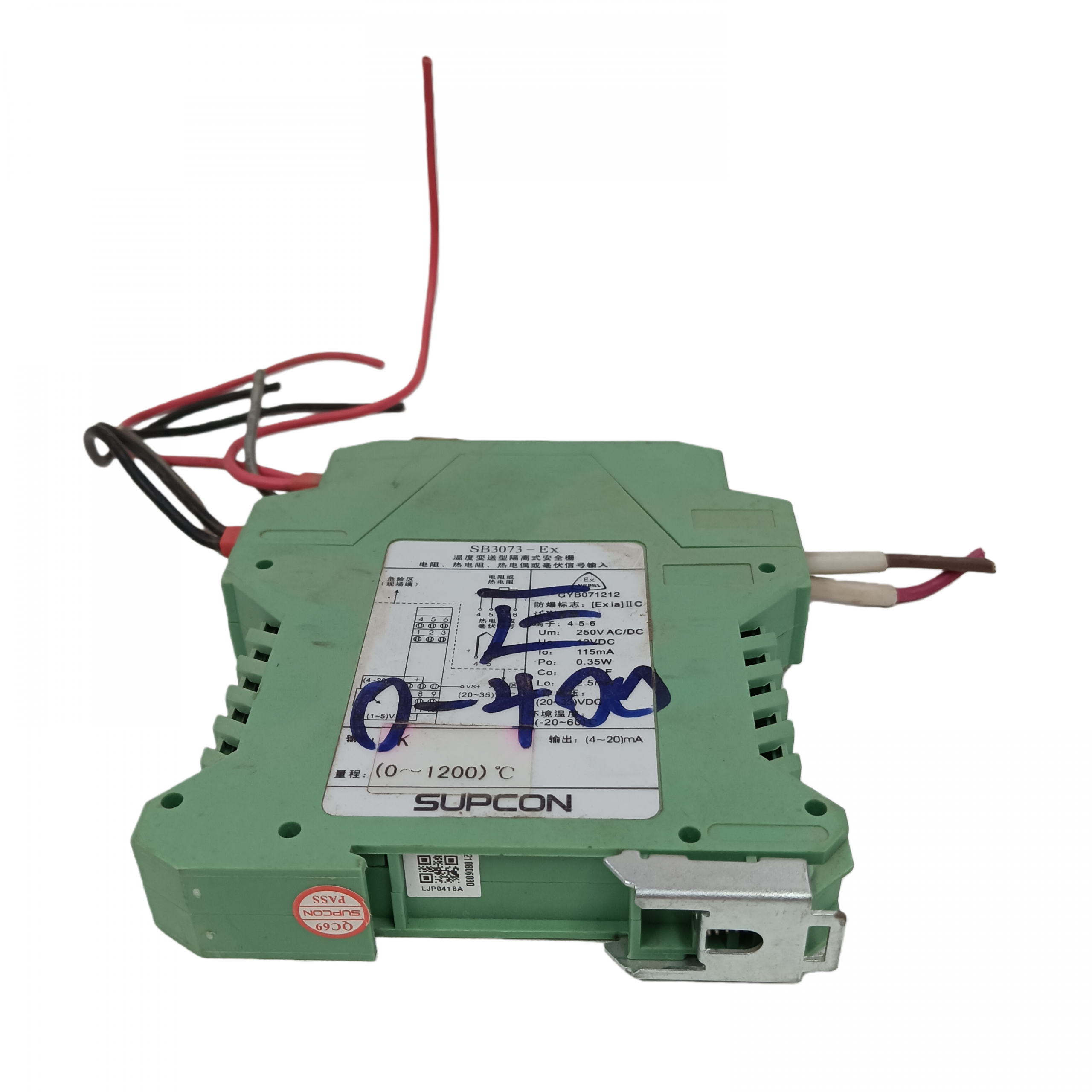

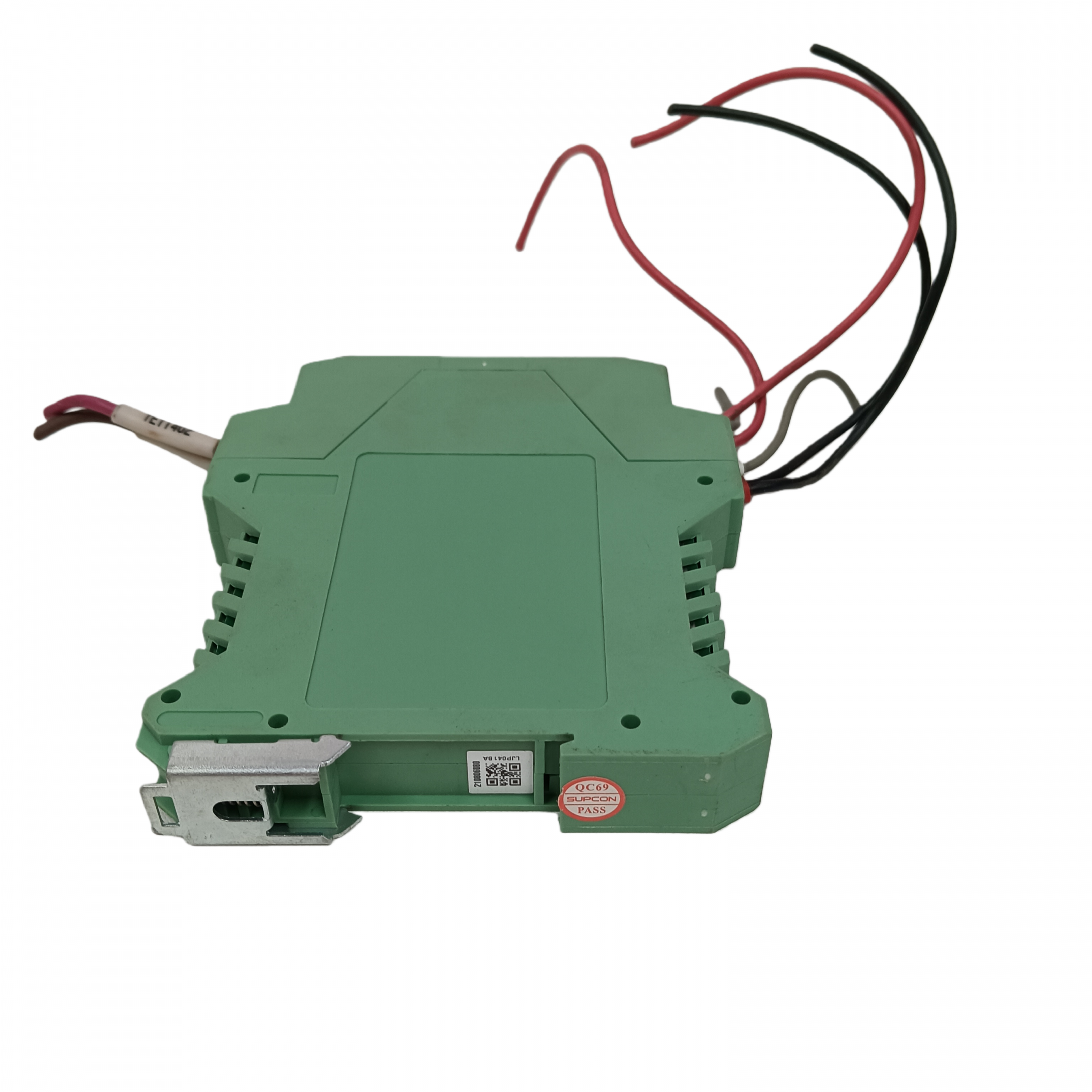

SUPCON SB3073-Ex

It is a high-performance explosion-proof isolation safety barrier launched by SUPCON, and is the core product of its safety barrier series. It is designed for intrinsically safe isolation in hazardous locations.

Key Functions & Applications

• Converts field resistance (e.g., Pt100, Cu50) or thermocouple signals into standard 4‑20 mA or 1‑5 V outputs, providing intrinsic safety isolation to prevent dangerous energy from feeding back into the system.
• Certified to Ex ia II C explosion protection level, complying with GB3836.4‑2000, suitable for Zone 0 (explosive gas) areas such as petrochemical, pharmaceutical, and food‑processing plants.
• Supports 2‑wire or 3‑wire resistance or thermocouple inputs, with measurement ranges of:
  • Pt100: ‑200 °C ~ 850 °C
  • Cu50: ‑50 °C ~ 150 °C
• Optional HART communication for seamless integration with SUPCON DCS systems.

Technical Specifications

• Accuracy class: 0.1 %FS
• Response time: ≤10 ms (typical 60 ms to reach 10 % of final value)
• Supply voltage: 24 V DC ±10 % (compatible with 20 ~ 35 V DC)
• Power consumption: ≤1.5 W, current ≈44 ~ 67 mA (depending on load)
• Isolation voltage: ≥250 V AC/DC
• Operating temperature: ‑20 °C ~ 60 °C; storage temperature: ‑40 °C ~ 85 °C
• Mounting: DIN rail (35 mm standard)
• Dimensions (W × H × D): 16 mm × 116 mm × 110 mm, weight ≈80 g
• Wiring: screw‑type terminal blocks, supporting hot‑plug connections.

Advantages

• Intrinsically safe design ensures no ignition source is generated in hazardous environments.
• Modular construction enables quick installation and maintenance on DIN rails.
• Multiple input/output configurations allow compatibility with a wide range of field instruments and higher‑level control systems.
