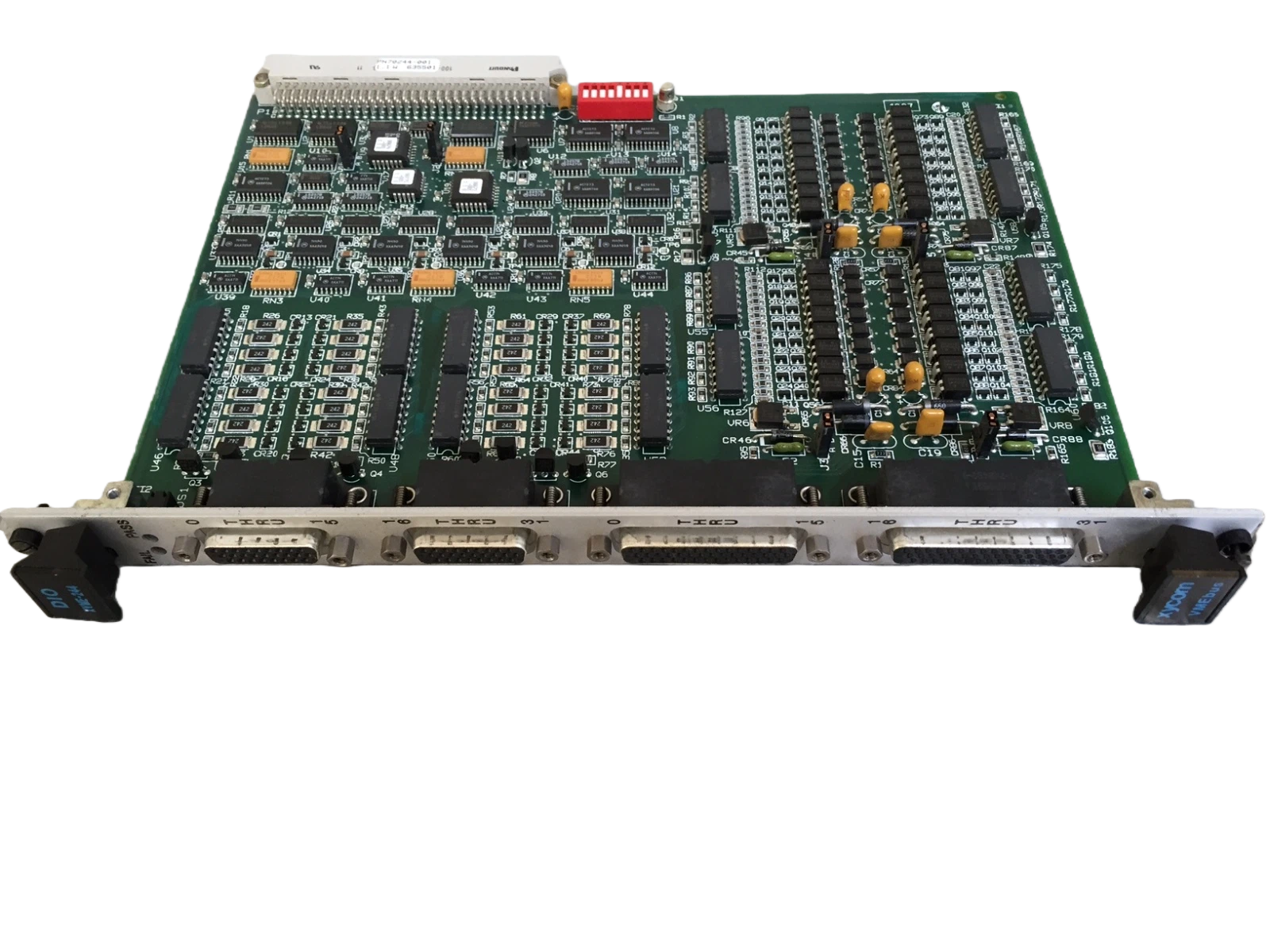

XYCOM XVME-244

It is a digital input/output card module based on the VME bus standard, mainly used in industrial automation control, data acquisition and monitoring systems

1. Basic Information

• Brand: XYCOM
• Model/Part Number: XVME-244, with the common part number being 70244-001
• Type: Digital I/O Module
• Weight: Approximately 0.32 kg

2. Technical Specifications

2.1 Input Characteristics

• The input voltage range is 10-35 VDC.
• It is equipped with an input debounce circuit to eliminate the impact of contact bounce.
• It also has 35 VDC reverse bias protection.
• The optical isolation voltage between groups is 300 VDC, and between groups and the VME bus is 1000 VDC.

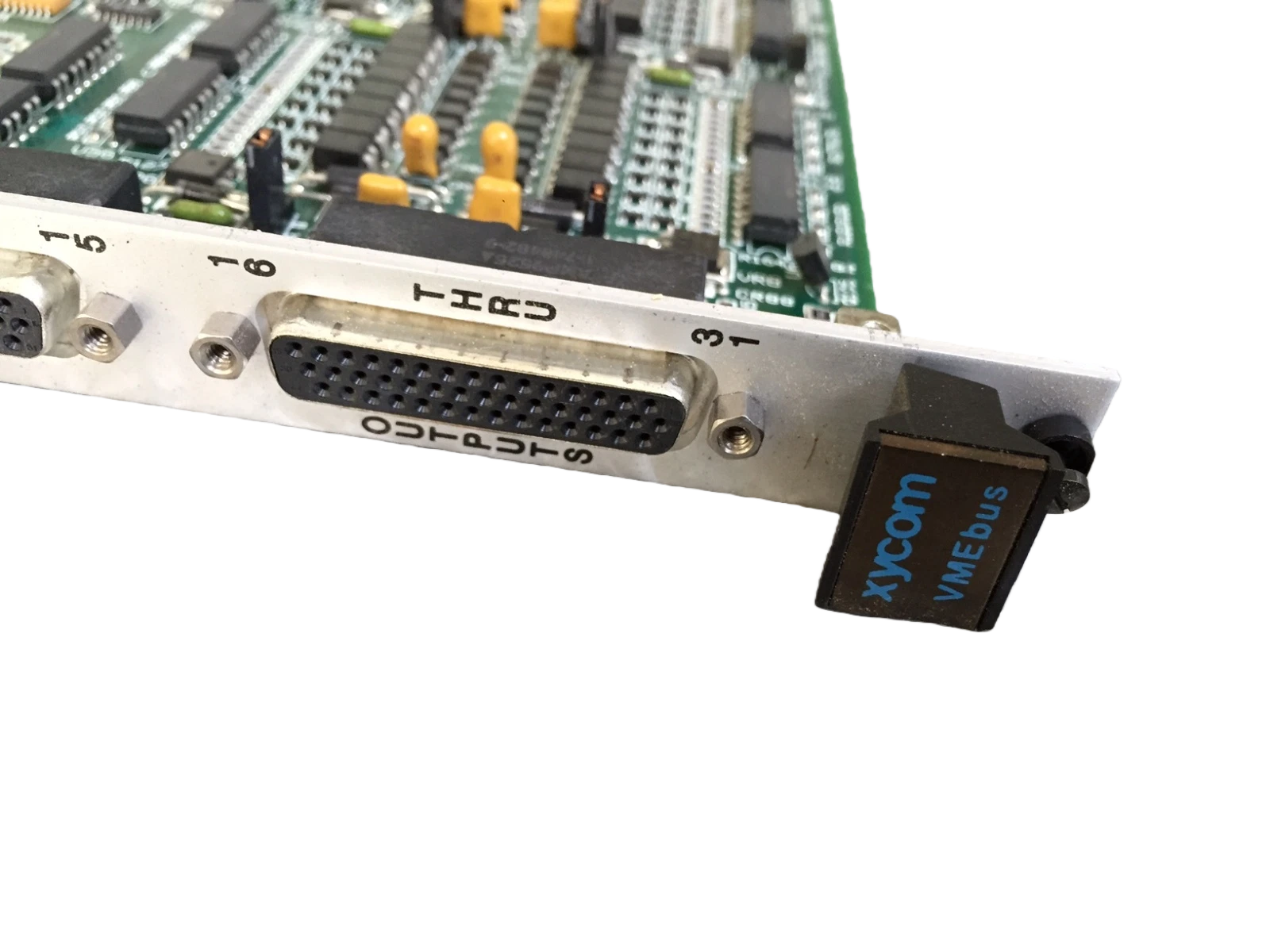

2.2 Output Characteristics

• The output channels can provide a maximum voltage of 30 V and a current of 400 mA.
• The optical isolation voltage between groups is 300 VDC, and between groups and the VME bus is 1000 VDC.
• All outputs have transient protection, and the output status can be read via software.
• The hardware initializes the outputs when powered on.

3. Functional Features

• Signal Isolation: It provides excellent signal processing capabilities through optically isolated channels, which can prevent noise interference and ground loops. Channels are arranged in groups of 8, with optical isolation between groups and between groups and the VME bus circuit.

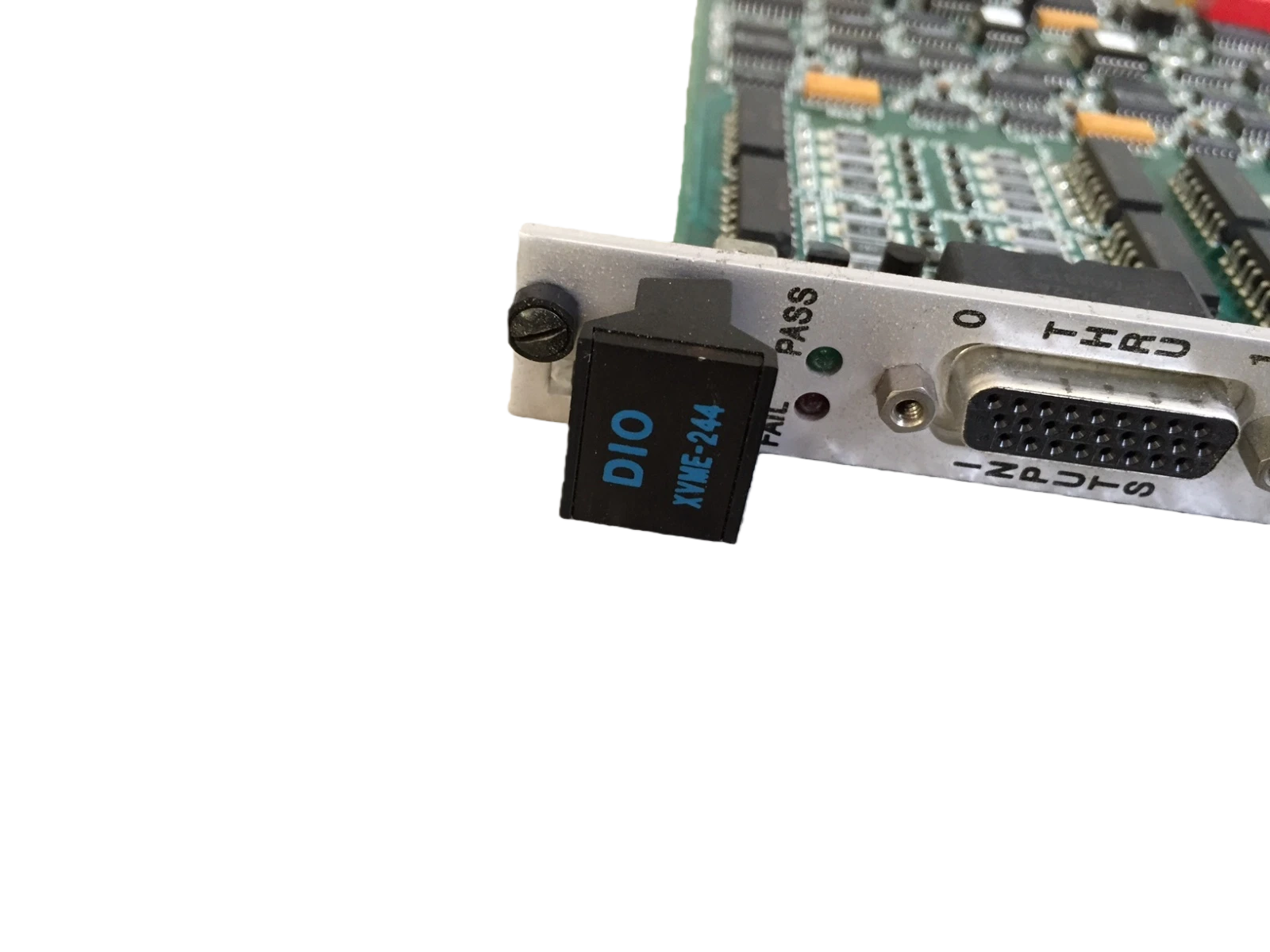

• Status Monitoring: Each channel is equipped with an independent LED status indicator for real-time monitoring of I/O status, allowing users to quickly understand the module’s working condition.
• Protection Functions: Built-in transient voltage suppression and reverse polarity protection can prevent electrical damage to connected equipment and improve system stability and reliability.
• Modular Design: It can be seamlessly integrated with XYCOM’s VME controller system and is also compatible with third-party VME bus backplanes. It supports hot swapping, enabling module replacement without shutting down the system, thus reducing maintenance downtime.
• Efficient Data Transmission: Based on the VME bus standard, it offers fast data transmission speeds and can meet the requirements of industrial control scenarios with high real-time demands.
