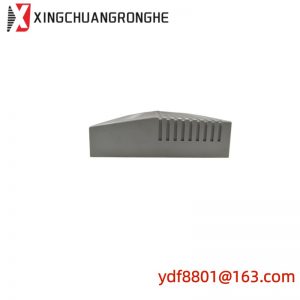

490NRP25400 Modicon Modbus Plus Fiber Optic Repeater

490NRP25400 Modicon Modbus Plus Fiber Optic Repeater is a line/drop transceiver in the Modicon Quantum automation platform, regenerating and extending Modbus Plus network signals over optical fiber and copper media. As part of the Modbus Plus repeater family, it allows Modbus Plus networks to span longer distances and to link network segments through fiber-optic cabling for improved immunity to electrical interference. It is a spare part used when expanding or repairing Modbus Plus communication networks in industrial plants.

Product Datasheet

• Brand: Schneider Electric (Modicon)
• Model: 490NRP25400
• Series: Modbus Plus (Modicon Quantum platform)
• Product Name: Modbus Plus Fiber Optic Repeater
• Type: Line/drop transceiver (optical fiber / fiber optic / copper)
• Function: Modbus Plus signal repeating and distance extension
• Network: Modbus Plus; up to 3 repeaters per network for extended distance (per family)

Fault Troubleshooting and Common Questions

1. The repeater is not powered. Check the power supply wiring, connectors, and the “Pwr” status LED. Verify the supply voltage matches the device rating and that the repeater is correctly connected.
2. Communication through the repeater fails. Check the fiber-optic and copper connections, the repeater’s status LEDs, and the Modbus Plus node configuration. Verify the network addressing and that all terminators are correctly installed.
3. The network is intermittent after adding the repeater. Inspect the fiber-optic cables, connectors, and copper cabling for damage or loose connections. Verify the repeater configuration matches the network topology, and check for address conflicts.
4. Can the 490NRP25400 replace another Modbus Plus repeater? Not without verification. Compare the full part number, port types (fiber vs copper), transceiver type, and compatibility with the specific Modbus Plus network topology before replacement.

Safety Precautions

• Isolate power and follow lockout/tagout procedures before removing or installing the repeater.
• Use electrostatic discharge protection when handling electronic assemblies.
• Verify power and network wiring before energizing the repeater.
• Do not connect signals until the electrical ratings have been confirmed.
• Use qualified personnel for troubleshooting and maintenance in operating control networks.

Frequently Asked Questions

Q1: What is the Schneider 490NRP25400? It is a Modbus Plus fiber optic repeater (line/drop transceiver) in the Modicon Quantum platform, extending Modbus Plus network communication over fiber and copper.

Q2: What does the repeater do? It regenerates and extends Modbus Plus signals, allowing network segments to span longer distances and to link over fiber-optic media.

Q3: Which network does it support? It supports the Modbus Plus network protocol of the Modicon Quantum automation platform.

Q4: What should be checked before purchase? Verify the model label, full part number, port types, condition, and compatibility with the specific Modbus Plus network topology.
