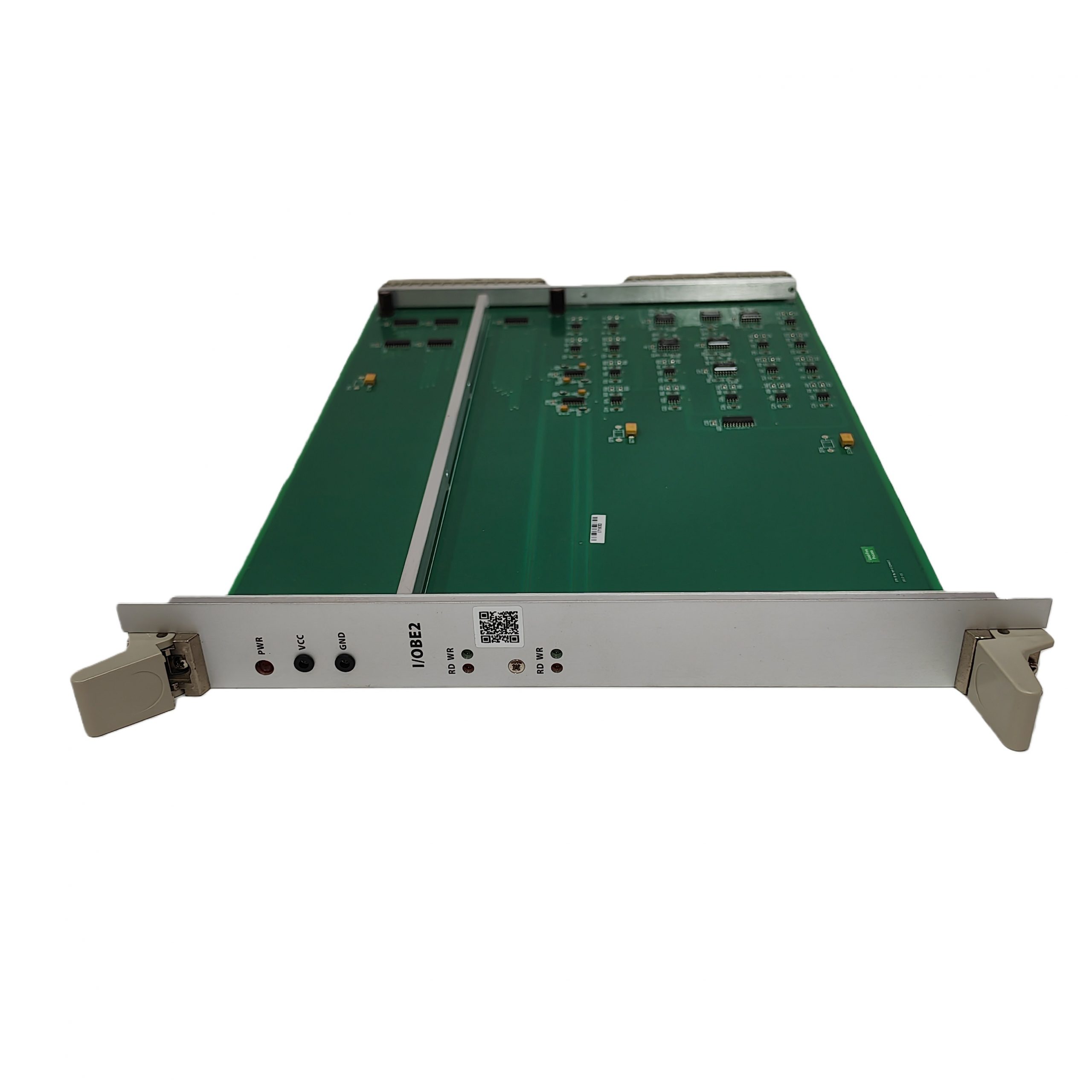

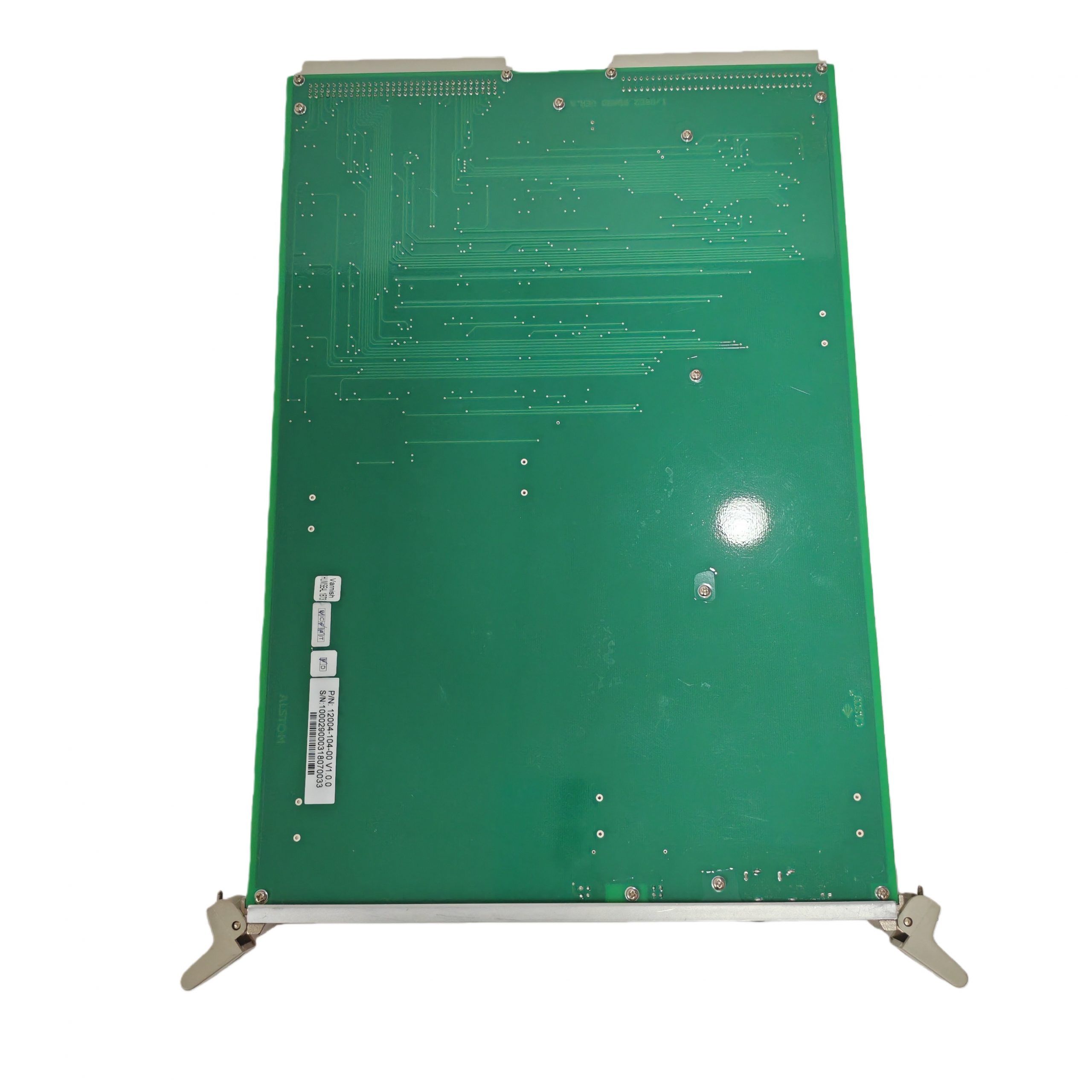

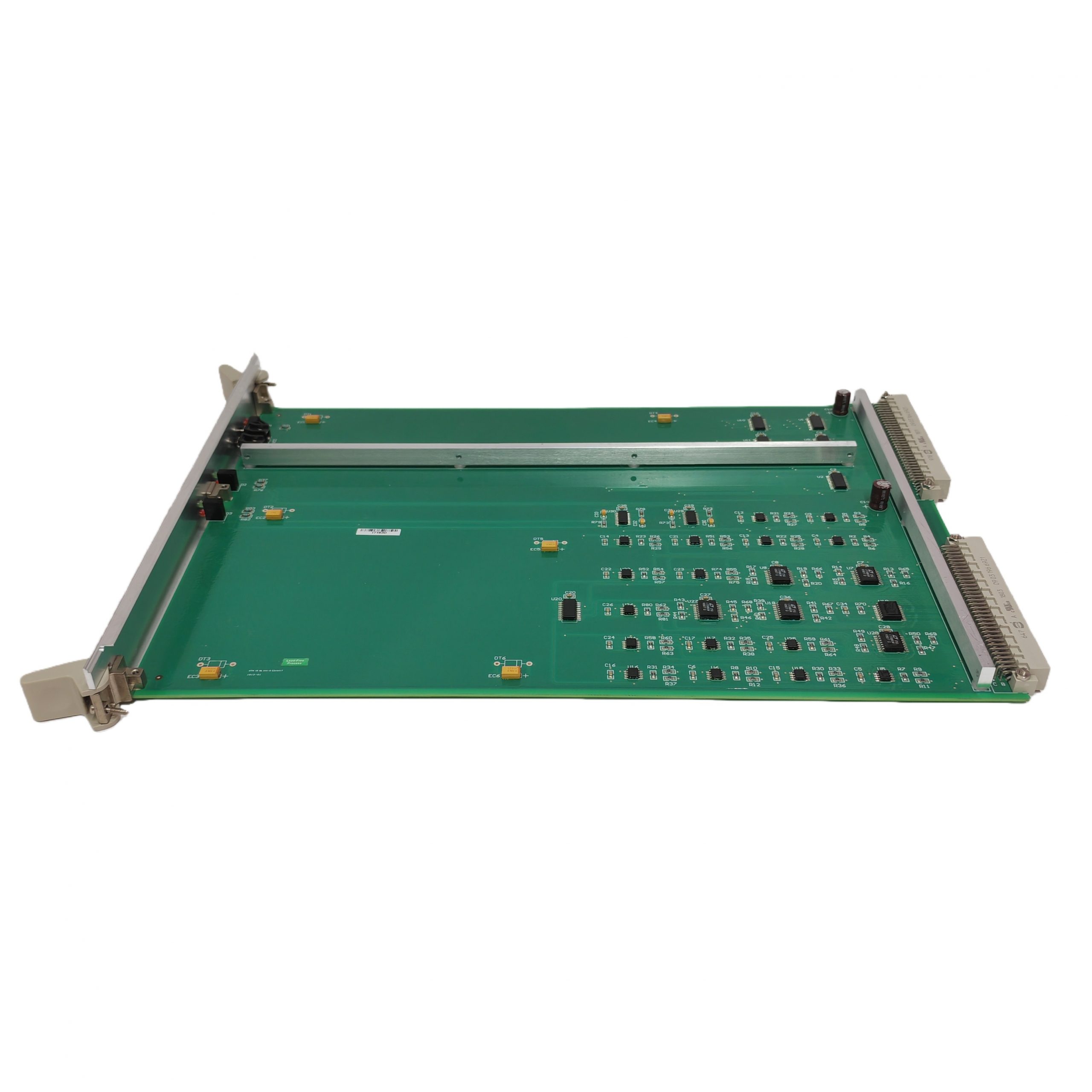

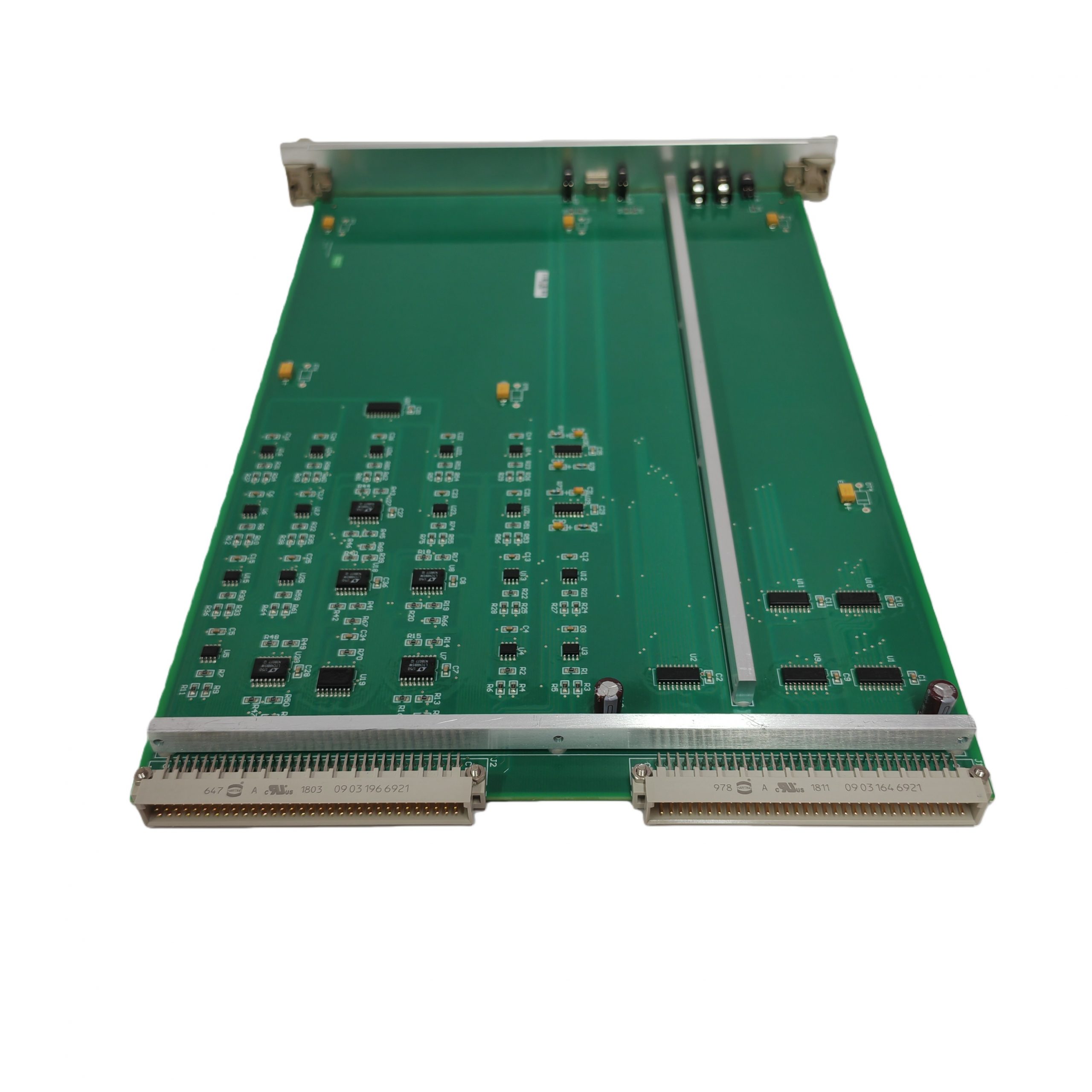

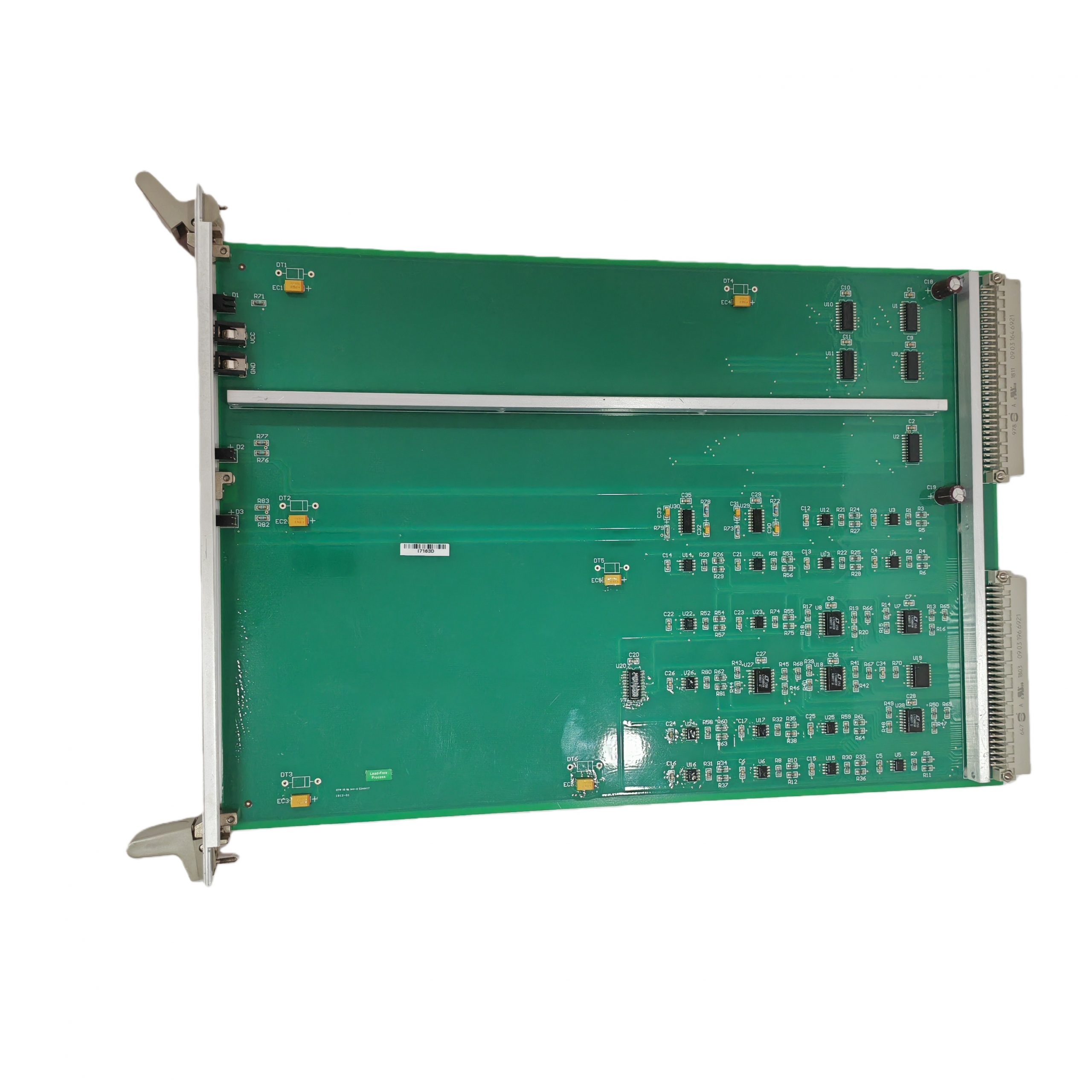

ALSTOM IOBE2 12004-104-00 V1.0.0 Distributed I/O modules

ALSTOM IOBE2 12004-104-00 V1.0.0 Distributed I/O modules

It is a distributed I/O module in the field of industrial automation, mainly used in power systems, industrial control and remote monitoring scenarios

Core Functions

• I/O Channel Configuration: Offers flexible combinations of 16 Digital Inputs (DI) and 16 Digital Outputs (DO), or 8 Analog Inputs (AI) and 8 Analog Outputs (AO).
  • Digital Inputs: Support 24V DC optical isolation, compatible with sourcing/sinking inputs, with a response time of ≤ 1ms.
  • Digital Outputs: Support 24V DC / 0.5A relay or transistor outputs, equipped with short-circuit and overload protection.
  • Analog Inputs: Support 4-20mA / 0-10V signals, 16-bit resolution, sampling rate ≥ 1kHz, compatible with Resistance Temperature Detector (RTD) and Thermocouple (TC) sensors.
  • Analog Outputs: Support 14-bit resolution, update rate ≥ 500Hz.
• Communication & Protocol Support: Integrates a 10/100Mbps Ethernet interface, supporting industrial protocols such as IEC 60870-5-104 (IEC104), Modbus TCP/IP, EtherNet/IP, and Profinet. It also supports dual-channel redundant communication to ensure data transmission reliability in power system automation scenarios.
• Diagnostics & Safety Functions: Features built-in channel status self-diagnostic capabilities to detect disconnections, short circuits, overloads, etc. It supports storing up to 1000 alarm event records. Additionally, it provides communication encryption (AES-128/256) and multi-level user permission management to enhance system security.

Technical Specifications

• Power Supply: Adopts 24V DC power input with an input range of 18-30V DC. It is designed with redundant power supplies and has a power consumption of ≤ 10W.
• Operating Environment: Temperature range of -20°C to +70°C (industrial grade), with an Ingress Protection (IP) rating of IP20 (rack-mounted) or IP67 (DIN rail-mounted).
• Mounting: Supports DIN rail or rack mounting, suitable for compact control cabinet layouts.

Application Scenarios

• Power Systems: Can be used in substation automation, distribution monitoring and protection, etc.
• Industrial Automation: Suitable for factory equipment condition monitoring, production line data acquisition and control, etc.
• Energy Management: Applicable to building automation, signal acquisition and actuation in photovoltaic/wind farms.
• Rail Transit: Can be used in signaling systems and train condition monitoring.
