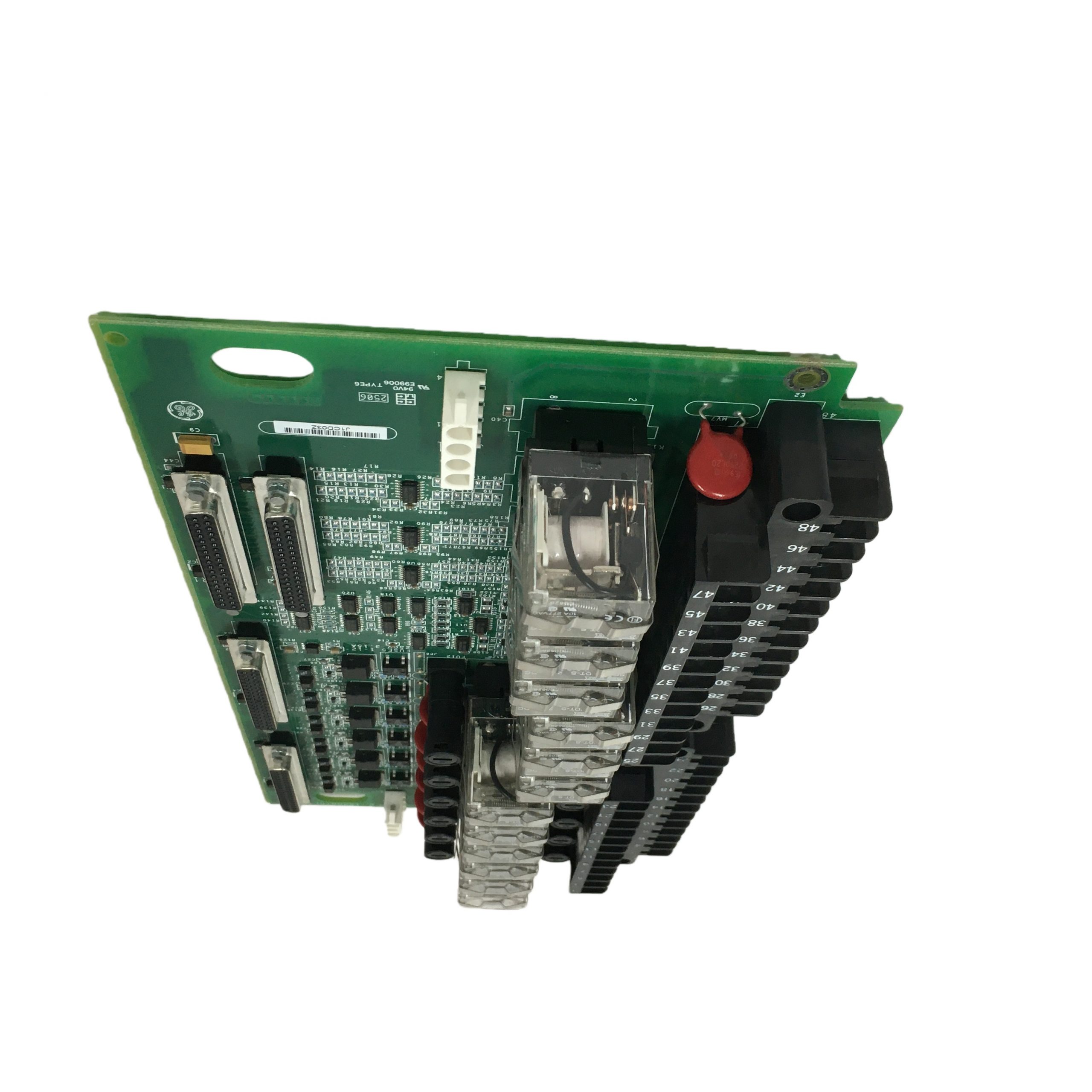

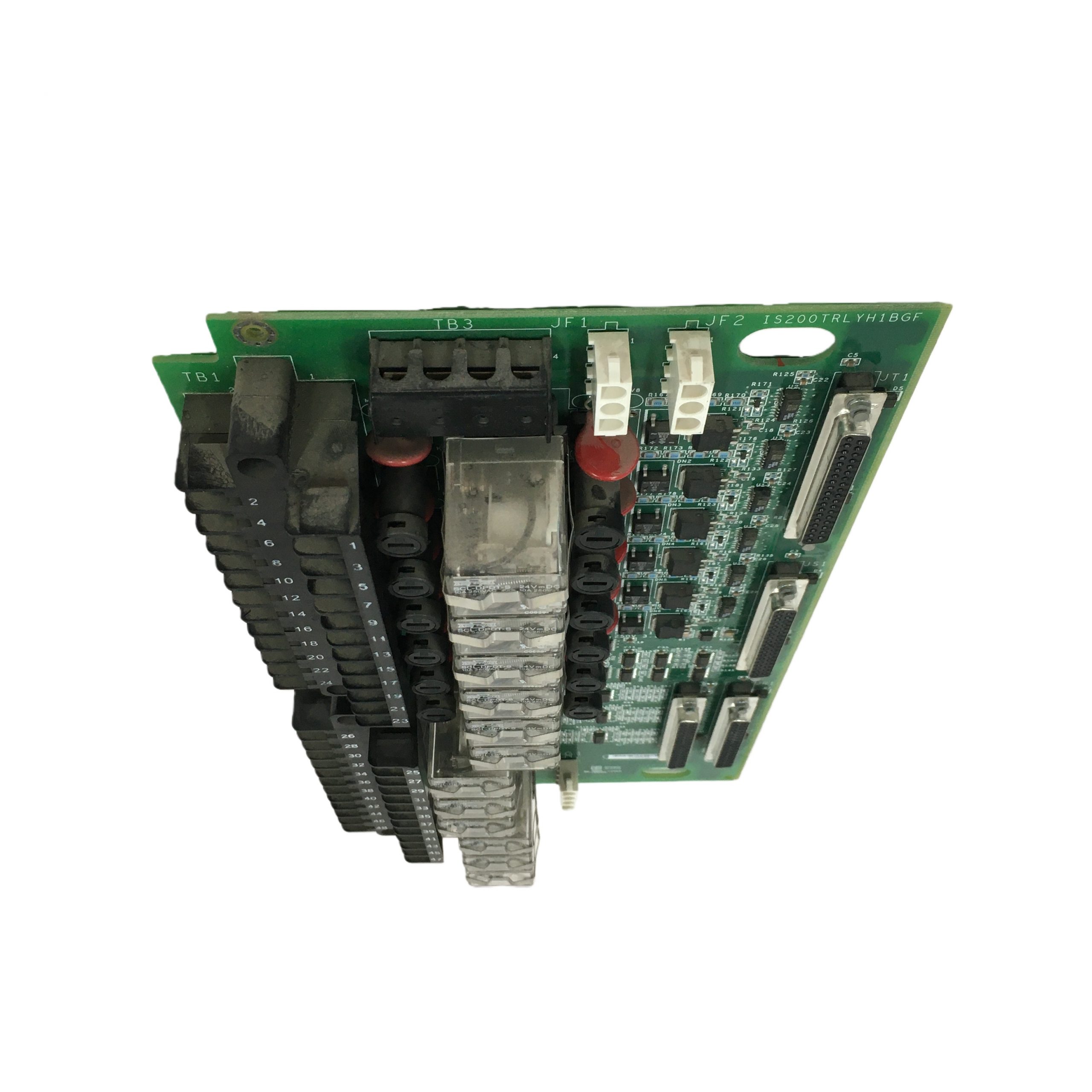

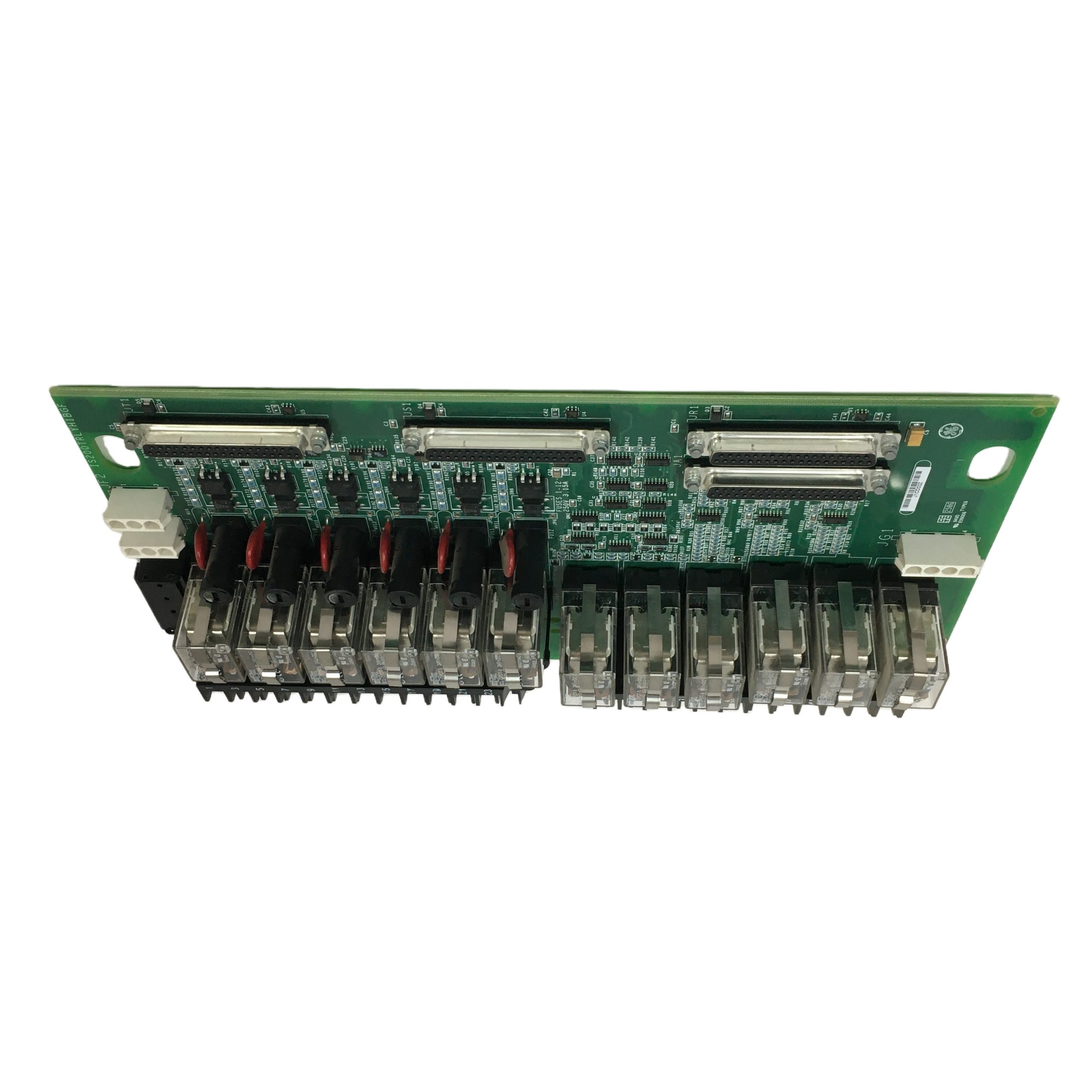

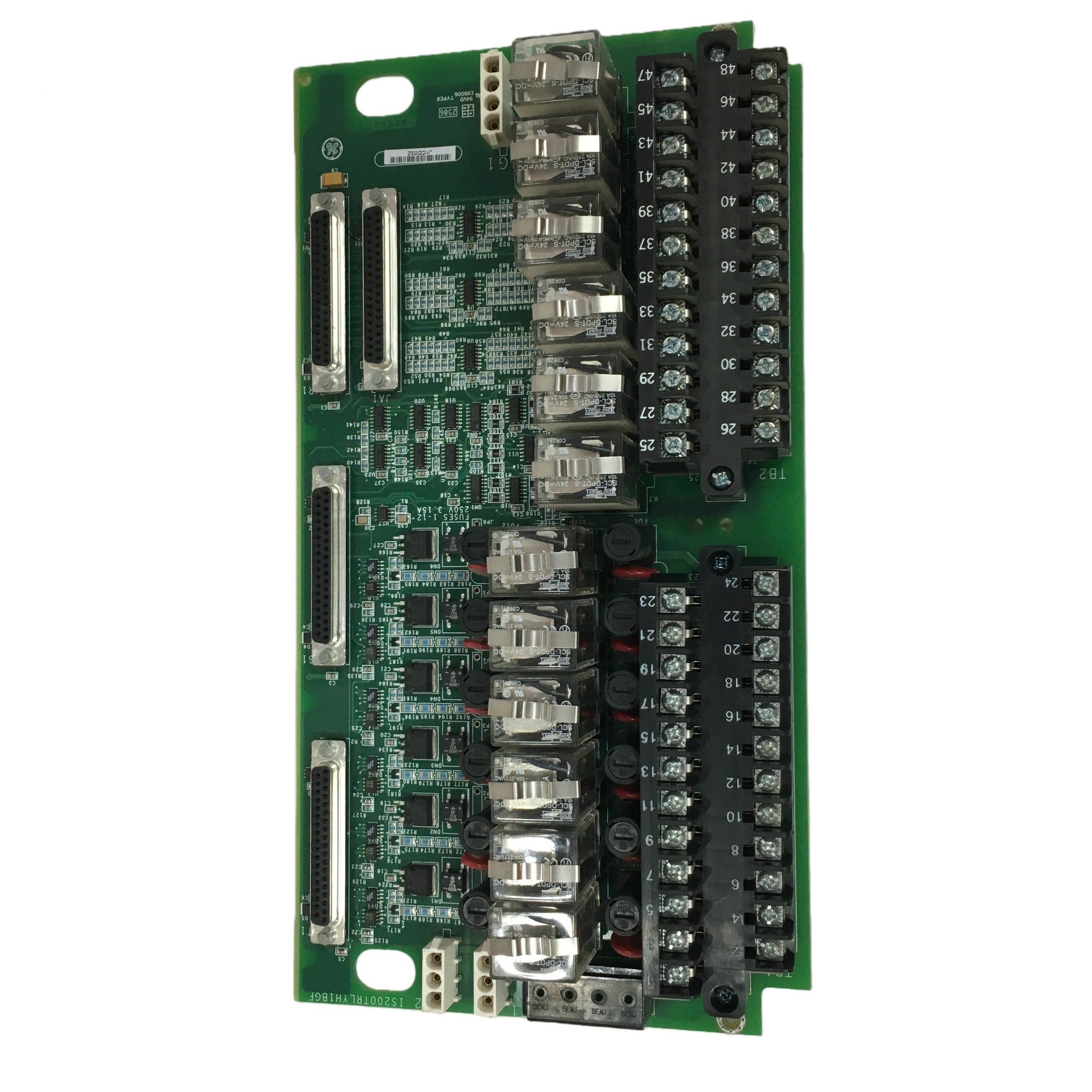

GE IS200TRLYH1BGF Relay output board

It is a relay output board produced by General Electric (GE), belonging to the Mark VI series, usually used in turbine control systems or other automation systems

Functional Features

High-Precision Signal Conversion: Converts analog signals from field devices into digital signals and transforms digital control signals back into analog signals, delivering accurate signal conversion and processing capabilities.
High Reliability: Adopts technologies such as multi-layer PCBs, SMD components, and voting coil drive feedback to prevent single-point failures. It also incorporates built-in MOV suppression and overcurrent/overvoltage protection, complying with industrial safety standards like IEC 61800‑9‑1.
Modular Design: Features detachable terminal blocks and optional pluggable mechanical relays for easy on-site maintenance and replacement. It seamlessly integrates with other GE control modules.
Multiple Power Supply Options: Supports various power supply options, including standard 125 V DC or 115/230 V AC, as well as optional 24 V DC power. Each power supply is equipped with a separately jumpable fuse and on-board suppression, enhancing safety and reliability.
Safety Protection Functions: Includes detection for relay solenoid excitation current loss, coil current-command inconsistency, and cable disconnection or communication loss. It triggers alarms or safety measures when abnormalities occur.

Technical Specifications

Operating Temperature: 0°C to 60°C (operating); -30°C to 65°C (storage).
Dimensions & Weight: Width 17.8 cm, height 33.02 cm, weight approximately 542 grams.
Relay Configuration: Equipped with 12 plug-in magnetic relays. The first six relay circuits are configurable via jumpers for dry contact, Form C contact output, or external solenoid driving. Relays 7-11 provide Form C contacts with power isolation, while Output 12 features an isolated Form C contact for special applications.
I/O Points: Supports 32 universal I/O points for connecting various sensors and actuators.

Application Fields

Widely used in industrial automation, process control, building automation, and utilities sectors, such as power plants, oil and gas industry, chemical industry, and pulp and paper industry. It controls various industrial production processes, industrial process parameters, building equipment, and utility systems.
