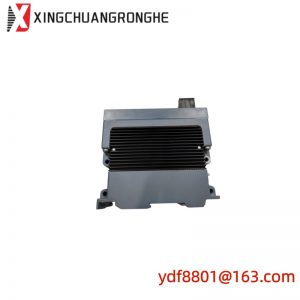

TRICONEX 3664 TMR Digital Output Module

The TRICONEX 3664 is a 16-point digital output termination panel designed for Tricon TMR safety systems. It serves as the field-wiring interface between 24 VDC digital output (DO) modules and industrial loads such as solenoid valves, control relays, and panel indicators. With commoned power terminals (PWR+ and PWR–), it simplifies field wiring, reduces cabinet wiring errors, and provides a reliable mechanical termination point for safety-critical output circuits in oil & gas, petrochemical, and power generation applications.

Key Specifications

• Brand: TRICONEX
• Model / Part Number:3664
• Series: Tricon TMR Field Terminations (v9 / v10)
• Product Type: Digital Output Termination Panel (Commoned)
• Rated Voltage: 24 VDC
• Number of Points: 16 load terminals
• Panel Configuration: Commoned — shared PWR+ and PWR– power terminals
• Current Rating: Up to 16 A total
• Compatible Modules: 24 VDC digital output modules
• Field Wiring: Screw terminals for field load connections
• Module Interface: Cable connection to the Tricon DO module in the adjacent I/O slot
• Mounting: Panel mount or DIN rail in the control cabinet
• Environmental: Conformal coated for harsh industrial environments
• Operating Temperature: -40 °C to +85 °C

Installation and Wiring Guide

Phase 1: Pre-Installation Preparation

⚠️ Safety Warning: This termination board carries 24 VDC output power to field loads. De-energize the field circuit and verify zero voltage at the terminals before beginning any wiring work.

• Confirm the replacement 3664 matches the original panel’s point configuration (commoned) and voltage rating (24 VDC).
• Wear a grounded anti-static wrist strap when handling the board.
• Have the field wiring diagram and loop drawings available.

Phase 2: Remove the Old Termination Panel

• Power down the 24 VDC field supply and the Tricon DO module.
• Label each field wire before removing it — pay special attention to PWR+ and PWR– common terminals.
• Disconnect the ribbon / multi-conductor cable linking the termination panel to the DO module.
• Unscrew the panel mounting hardware and remove the old board.

Phase 3: Install the New 3664 Panel

• Physical Inspection: Check the board for shipping damage, bent connector pins, or loose terminal screws.
• Mounting: Secure the panel to the cabinet panel or DIN rail using the provided mounting points.
• Module Cable: Reconnect the interface cable to the DO module, ensuring the connector orientation is correct.
• Field Wiring: Terminate each field load wire to its corresponding channel terminal (1 through 16), and connect the common PWR+ and PWR– wires. Torque terminal screws to the manufacturer’s specification.

Phase 4: Verification

• Visual Check: Confirm all wires are securely terminated and no bare copper is exposed.
• Insulation Test: With field power off, verify there is no short circuit between channels and ground.
• Energize: Restore 24 VDC field power and the DO module.
• Functional Test: Use TriStation 1131 to force each output channel on and off, verifying that the corresponding field load actuates correctly and the DO module diagnostic LEDs show no faults.

Frequently Asked Questions (FAQ)

Q: What is a “commoned” termination panel and when should I use it? A: A commoned panel shares a common PWR+ and PWR– bus across all 16 output channels. It is used when field loads share a common 24 VDC supply — this reduces wiring effort compared to non-commoned (fused per-channel) panels. Use the commoned 3664 when all 16 loads are fed from the same 24 VDC source.

Q: Do I need to reprogram the Tricon controller after replacing the termination board? A: No. A termination board is a passive field-wiring device — it carries no firmware or address settings. Once wiring is reconnected correctly and the loop check passes, the system operates normally with no changes in TriStation.
