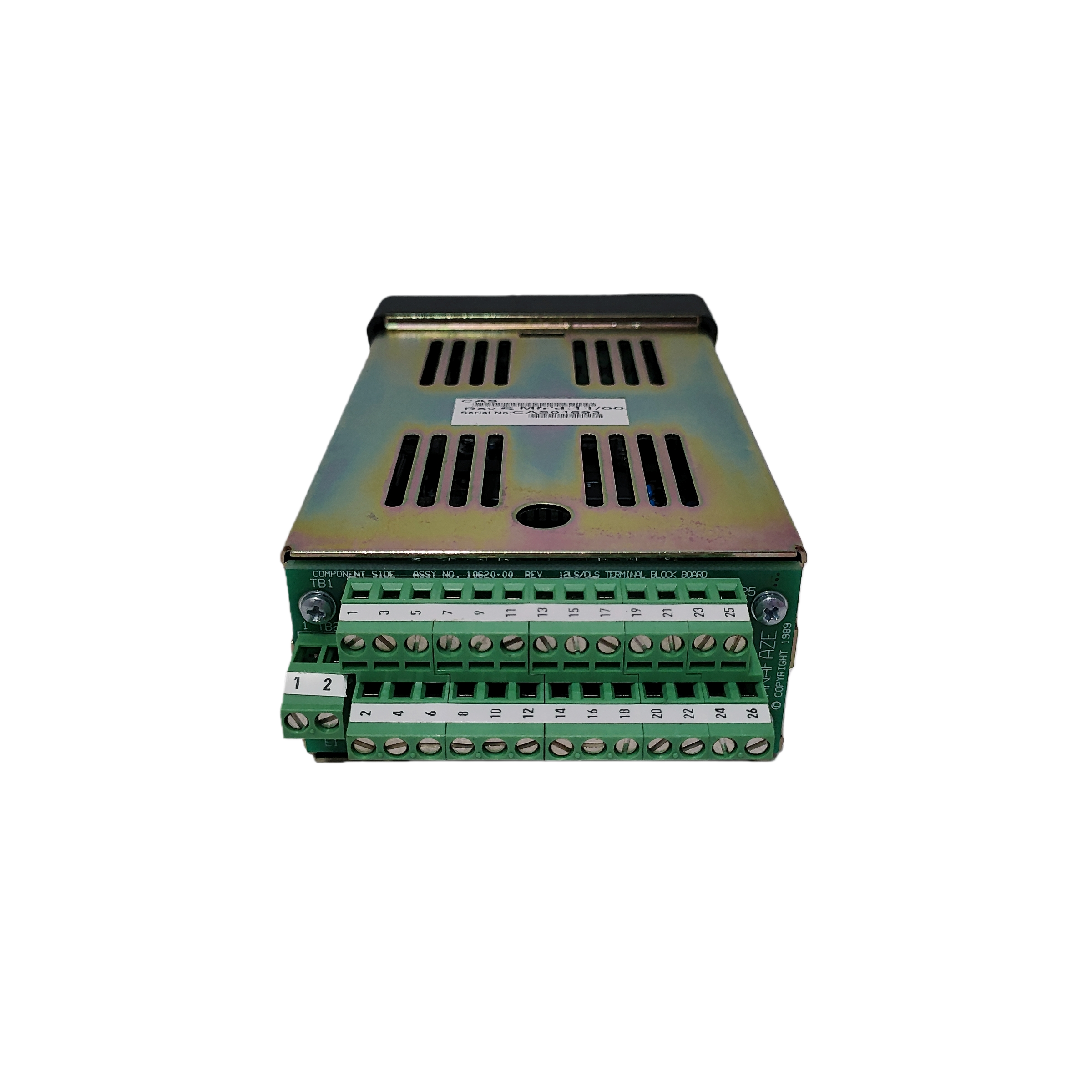

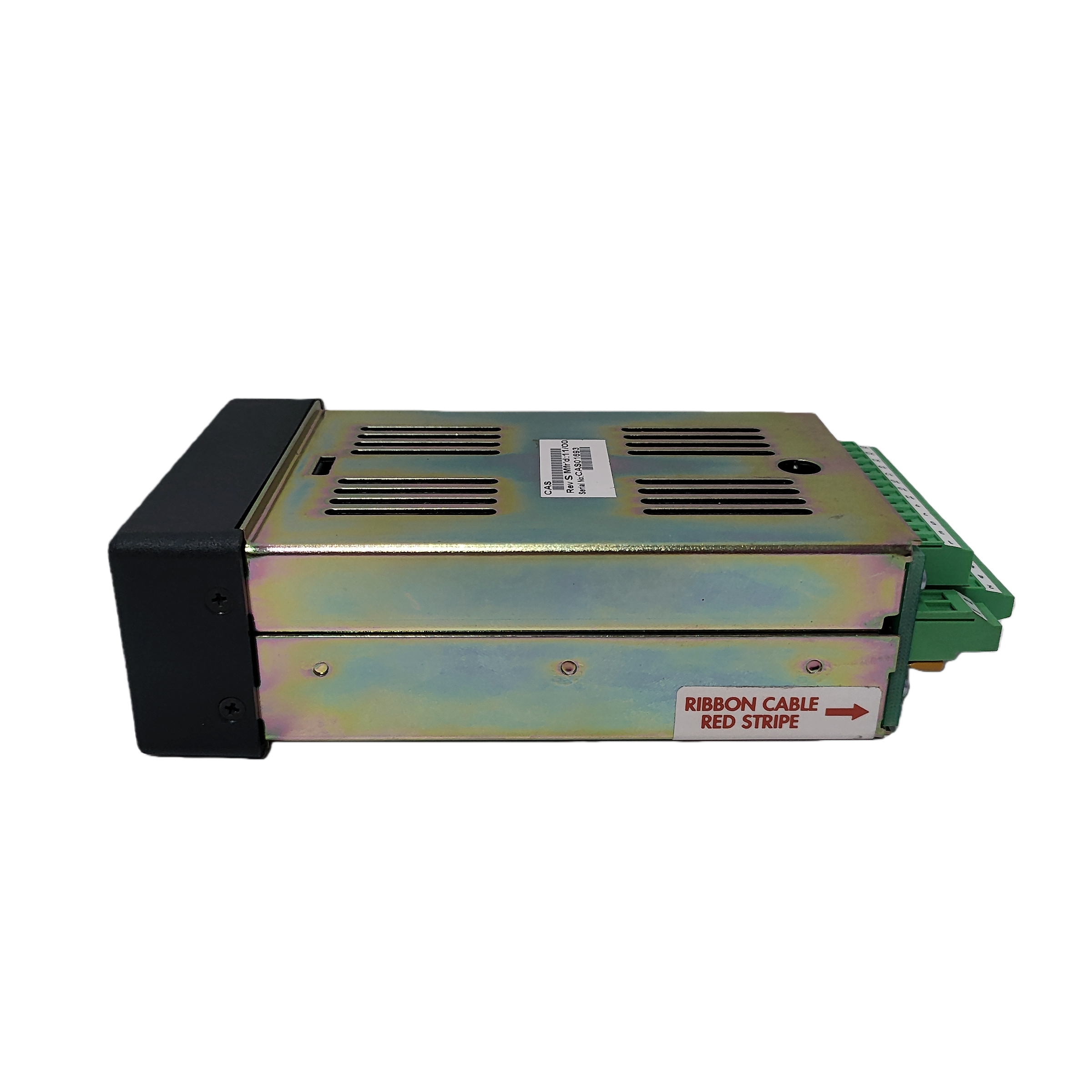

WATLOW ANAFAZE CAS 16CLSCAS

This is a very classic and high-performance multi-loop program controller in the field of industrial automation, especially in process control.

1. Core Positioning & Overview

The WATLOW ANAFAZE CAS 16CLSCAS is a powerful industrial automation platform that integrates control, alarming, data logging, and communication into a single unit. It is a high-end model within the “CAS” series, with the “16” indicating its robust processing capability. It is primarily used in applications requiring complex, multi-step process control, such as:

• Semiconductor Manufacturing: Temperature control for diffusion furnaces, LPCVD, PECVD, etc.

• Industrial Furnaces: Heat treating, sintering, brazing.

• Test Equipment: Environmental chambers, engine testing.

• Food & Pharmaceutical: Sterilizers, fermenters.

Its design philosophy is to replace multiple single-function devices (such as multiple temperature controllers, timers, logic controllers, and chart recorders) with one unit, thereby simplifying system architecture, improving reliability, and facilitating centralized management.

2. Key Features & Functions

• Multi-Loop Control:

  • Capable of handling multiple control loops simultaneously (the specific number depends on configuration, but “16” indicates strong capability). Each loop can independently control process variables like temperature, pressure, and flow.

  • Supports various control algorithms, including advanced PID and fuzzy logic, ensuring high precision and stability.

• Programmable Setpoint Control:

  • Its core function is “program” or “recipe” control. Users can create complex, multi-segment temperature/pressure profiles (programs).

  • For each segment, parameters like target setpoint, ramp rate, and soak time can be set. The CAS 16CLSCAS executes the preset program automatically and precisely.

• Integrated Data Logger:

  • Features built-in, high-capacity memory for logging process data (e.g., PV values, setpoints, output values, alarm status).

  • Data can be stored in internal memory or exported via external storage devices (e.g., CF cards) for quality traceability, process analysis, and fault diagnosis.

• High-Resolution Touchscreen & User Interface:

  • Equipped with a color LCD touchscreen for displaying real-time process data, trend curves, alarm information, and program status.

  • The intuitive interface allows operators to easily monitor, configure parameters, and start/stop programs.

• Powerful Input/Output Capability:

  • Multiple Input Types: Supports various sensor signals, including thermocouples, RTDs, voltage, and current.

  • Multiple Output Types: Provides relay, analog (4-20mA / 0-10V), and SSR drive outputs to actuate final control elements like heaters, valves, and motors.

  • Digital I/O: Includes multiple digital input and output points for handling external interlocks, alarm outputs, event triggers, and other discrete logic functions.

• Communication & Networking:

  • Comes standard with multiple industrial communication interfaces, such as Ethernet, RS-232/485, and DeviceNet.

  • Supports common industrial protocols (e.g., Modbus TCP/IP, Modbus RTU), enabling easy integration into superior SCADA systems, DCS, or PLCs for plant-wide data monitoring and management.

• Advanced Alarm Management:

  • Offers multiple configurable alarm types (e.g., high limit, low limit, deviation alarm). Each alarm can be linked to different output actions to ensure process safety.

3. Model Number Analysis: CAS 16CLSCAS

• CAS: Product series name, standing for Controller, Alarm, Scanner & Recorder.

• 16: Typically indicates that the model’s processing power and I/O capacity are of a higher tier within the series.

• CL: Likely stands for Color LCD display.

• S: May indicate a specific hardware version or feature set.

• CAS: Repeating here might emphasize its core functions or serve as a specific model suffix.

4. Summary

The WATLOW ANAFAZE CAS 16CLSCAS is a fully-featured, high-performance high-end multi-loop program controller and data logging system. It is ideally suited for industrial environments that demand precise recipe control, strict data traceability, and a high degree of automation. Its “all-in-one” design philosophy significantly simplifies complex process control systems, making it an ideal choice for high-end manufacturing sectors like semiconductors and heat treatment.
