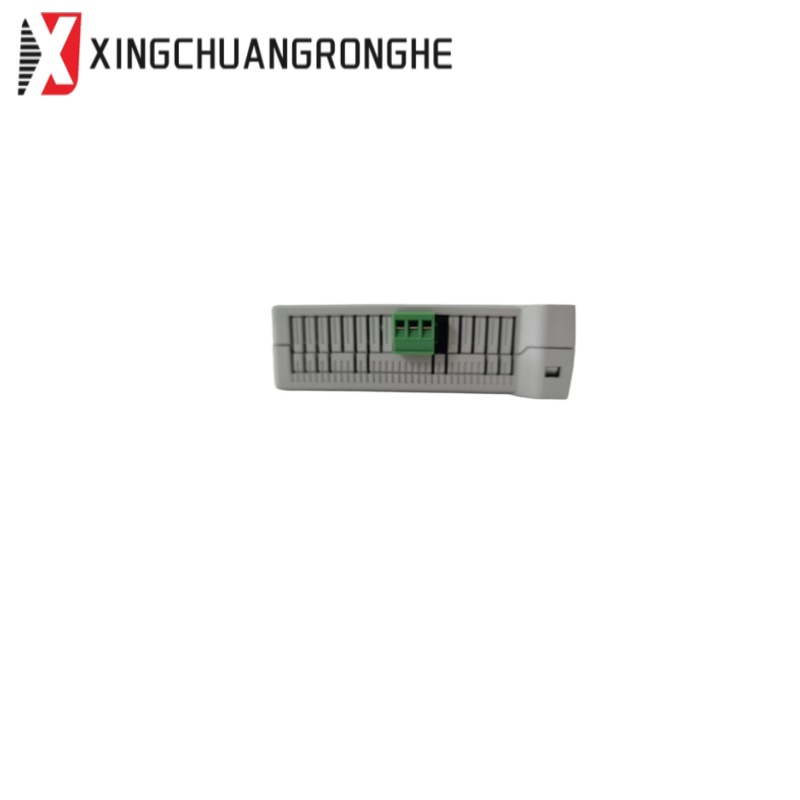

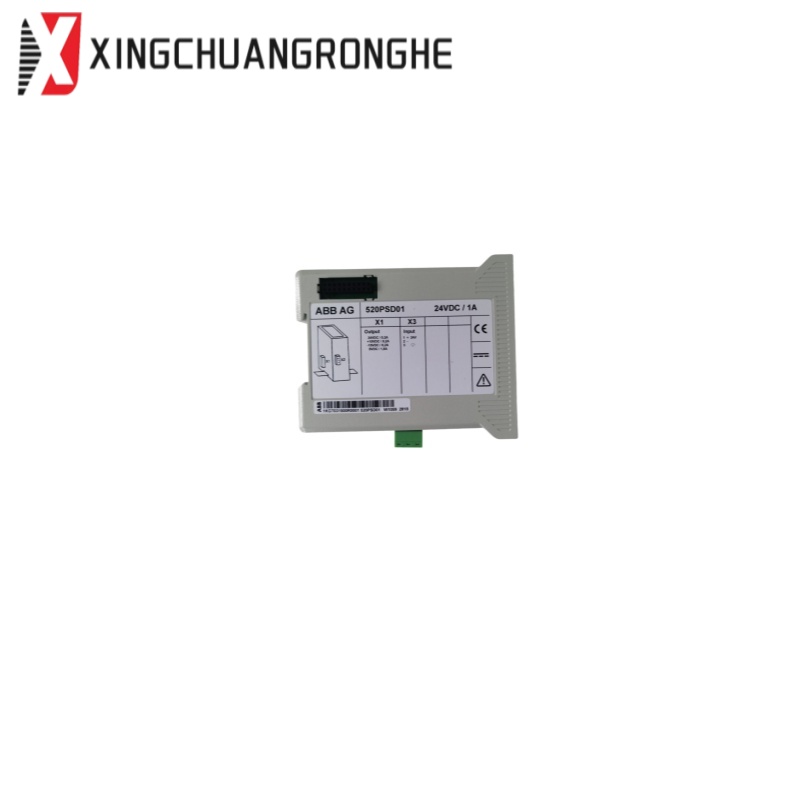

ABB 520PSD01 RTU500 Power Supply Unit

ABB 520PSD01 RTU500 Power Supply Unit is a DIN rail mounted power supply unit in the ABB RTU500 series (RTU520 product line), designed to generate and switch the 5V DC, ±15V DC, and 24V DC voltages required by the RTU520 remote terminal unit system. Operating from a 24V DC input with a total output power of 20 W, the unit supplies RTU520 racks with up to 16 I/O modules and provides short-circuit proof outputs, electronic power limitation, and LED monitoring for each output voltage. It is a common spare part for ABB substation automation and power distribution installations.

Product Datasheet

• Brand: ABB
• Model: 520PSD01
• Product Name: Power Supply Unit
• Series: RTU500 (RTU520 product line)
• Input Voltage: 24V DC (-20% / +20%)
• Max Input Current: 1 A @ 24V DC
• Outputs: 5 VDC (max 1.8 A), ±15 VDC (max 0.2 A), 24 VDC (max 0.2 A)
• Total Output Power: 20 W
• Dimensions: 35 × 98 × 117 mm (W × H × D)
• Weight: 0.14 kg
• Mounting: DIN rail (EN 50022 TS35)
• Protection: Short-circuit proof outputs, reverse voltage protection, electronic power limitation
• Operating Temperature: -25 to +70 °C
• Ordering Code: 520PSD01 R0001 (1KGT031500R0001)

Fault Troubleshooting and Common Questions

1. The unit produces no output voltages. Check the 24V DC input supply, input wiring, and the status LEDs on the front panel. Verify the input voltage is within the -20% to +20% tolerance range and that the unit is mounted and connected correctly.
2. One or more output voltages are missing or out of range. Check the corresponding output LED (5V, +15V, -15V, or 24V) and the connected load. Verify there is no short circuit and that the total load does not exceed the output current ratings or the 20 W total output power.
3. RTU520 I/O modules are not powered. Confirm the power supply is operating and that the 24V output pass-through via the 520CMD01 to the I/O modules is functioning. Check the rack bus connection and module seating.
4. Can the 520PSD01 replace another RTU500 power supply unit? Not without verification. Compare the full part number and revision, input voltage range, output voltages and currents, connector layout, and compatibility with the specific RTU500 rack configuration.

Safety Precautions

• Isolate power and follow lockout/tagout procedures before removing or installing the unit.
• Use electrostatic discharge protection when handling electronic assemblies.
• Verify the input supply voltage and output wiring before energizing the unit.
• Do not connect loads until the electrical ratings have been confirmed.
• Use qualified personnel for troubleshooting and commissioning in operating substation systems.

Frequently Asked Questions

Q1: What is the ABB 520PSD01? The 520PSD01 is a power supply unit in the ABB RTU500 series (RTU520 product line) that generates the 5V DC, ±15V DC, and 24V DC voltages for the RTU520 remote terminal unit system.

Q2: What voltages does the 520PSD01 output? It outputs 5 VDC (max 1.8 A), ±15 VDC (max 0.2 A), and 24 VDC (max 0.2 A), with a total output power of 20 W.

Q3: What input voltage does the unit need? The unit operates from a 24V DC input with a tolerance range of -20% to +20%.

Q4: Where is the unit used? It is used in ABB RTU520 remote terminal unit racks to power the system and up to 16 I/O modules in substation automation and power distribution applications.

Q5: What should be checked before purchase? Verify the model label, full part number and revision, condition, output configuration, and compatibility with the existing RTU500 rack and application.
