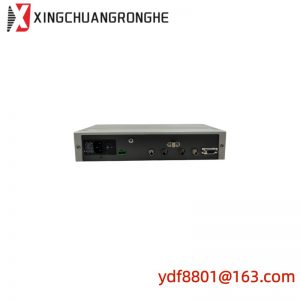

TRICONEX 3000520-390C1R Replacement Expansion Module

The TRICONEX 3000520-390C1R is a replacement high-speed rack-to-rack I/O bus expansion module designed for the Tricon triple modular redundant (TMR) safety system. It extends the TriBus and I/O bus from the main rack to expansion racks, enabling multi-rack TMR configurations for safety-critical applications in oil & gas, petrochemical, and power generation. This surplus original part serves as a direct replacement for the 9662-610 sales model.

Key Specifications

• Brand: TRICONEX (Schneider Electric)
• Model / Part Number: 3000520-390C1R (direct replacement for 9662-610)
• Series: Tricon Triple Modular Redundant (TMR) System
• Core Function: High-speed I/O bus expansion between racks
• Product Type: Replacement Bus Expansion Module (Standard)
• Key Parameters: Multi-rack communication | TMR architecture support
• Function: Extends TriBus and I/O bus from main rack to expansion racks
• Architecture: Triple Modular Redundant (TMR) — supports internal 3-2-1 voting
• Compatibility: Tricon v9 and v10 systems; drop-in replacement for 9662-610
• Connector Type: High-density backplane interface
• Isolation Method: Optical/electrical isolation between communication channels
• Diagnostics: Front-panel LEDs (Pass, Fault, Active)
• Power Supply: Backplane-powered (5 V DC from Tricon rack)
• Transmission: High-speed data transfer with parity checking
• Mounting: Installed in the dedicated bus expansion slot of the Tricon rack
• Environmental: Conformal coated for harsh industrial environments

Installation and Configuration Guide

Phase 1: Pre-Installation Preparation (15 minutes)

⚠️ Safety Warning: This module handles communication for the entire safety rack. A failure of this module will cause multiple I/O racks to lose communication.

• Confirm whether the system is configured as Simplex expansion or Dual/TMR expansion. If it is a simplex expansion, removing the only operating module will trigger a shutdown on the corresponding I/O.
• Wear a grounded anti-static wrist strap.

Phase 2: Remove the Old Module (5 minutes)

• Loosen the two captive screws at the top and bottom of the existing 9662-610 module.
• Cable Note: If I/O bus cables are connected to the module face or adjacent I/O bus interfaces, clearly label them before removal.
• Grasp the module ejector handles and pull straight out. Do not rock the module side to side, as this will damage the high-density backplane pins.

Phase 3: Install the Replacement Module (3000520-390C1R) (15 minutes)

• Pin Inspection: Carefully inspect the backplane pins of the new 3000520-390C1R replacement module. Even one bent pin can cause a communication fault.
• Seating: Slide the module into the designated slot and press evenly until the backplane connector is fully mated.
• Reconnect Cables: Reconnect the I/O bus expansion cables, ensuring connectors are fully inserted and hand-tighten the captive screws.

Phase 4: Verification (15 minutes)

• LED Status:
  • PASS: Green LED illuminates after internal self-test completes.
  • ACTIVE: Green LED illuminates after communication is established between the main processor (MP) and the expansion rack.
• TriStation 1131 Software Check: Open the diagnostic monitoring interface and confirm that “Expansion Rack Status” displays “Normal.”
• Clear Alarms: If system alarms persist, perform an “acknowledge” operation in the software for this hardware change.

Customer Cases and Industry Applications

Case 1: LNG Terminal Communication Fault

An LNG loading terminal was experiencing intermittent “Rack 2 Offline” alarms. Diagnosis localized the fault to an aging 9662-610 module in the main rack. Since this expansion rack controls emergency shutdown (ESD) valves for the loading arms, the terminal faced a full shutdown risk. We delivered a replacement 3000520-390C1R module via direct courier service and completed the swap within a 1-hour maintenance window, restoring the full TMR communication link to the remote rack.

Case 2: Refinery Expansion Schedule Risk

During a refinery expansion project, the system integrator discovered that the original bill of materials was missing two bus expansion modules required for additional I/O racks. The Schneider Electric factory lead time was 20 weeks. We delivered two brand-new surplus 3000520-390C1R replacement modules within 5 days, enabling the integrator to complete loop testing on schedule and avoiding $50,000 per day in commissioning delay penalties.

Frequently Asked Questions (FAQ)

Q: Can this module be replaced without shutting down the system? A: If your Tricon system is configured as TMR with redundant expansion links, hot-swapping is supported. However, if this is the only expansion communication link for the rack, removing the module will cause that rack to lose control. Always verify the system topology first.

Q: Do I need to reprogram the main processor after installing this module? A: No. The 3000520-390C1R is a transparent communication module. As long as the slot and rack configuration in TriStation software matches the field hardware, the main processor will recognize the module and operate normally.
