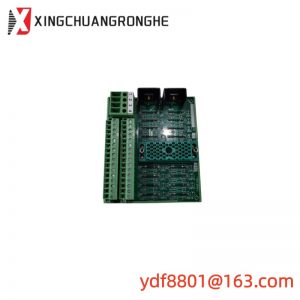

TRICONEX 9662-610 Bus Expansion Module

The Triconex 9662-610 is a high-speed rack-to-rack I/O bus expansion module designed for the Tricon triple modular redundant (TMR) safety system. It extends the TriBus and I/O bus from the main rack to expansion racks, enabling multi-rack TMR configurations for safety-critical applications in oil & gas, petrochemical, and power generation.

Key Specifications

• Brand: TRICONEX
• Model / Part Number: 9662-610
• Series: Tricon Triple Modular Redundant (TMR) System
• Core Function: High-speed I/O bus expansion between racks
• Product Type: Bus Expansion Module (Standard)
• Key Parameters: Multi-rack communication | TMR architecture support
• Function: Extends TriBus and I/O bus from main rack to expansion racks
• Architecture: Triple Modular Redundant (TMR) — supports internal 3-2-1 voting
• Compatibility: Tricon v9 and v10 systems
• Connector Type: High-density backplane interface
• Isolation Method: Optical/electrical isolation between communication channels
• Diagnostics: Front-panel LEDs (Pass, Fault, Active)
• Power Supply: Backplane-powered (5 V DC from Tricon rack)
• Transmission: High-speed data transfer with parity checking
• Mounting: Installed in the dedicated bus expansion slot of the Tricon rack
• Environmental: Conformal coated for harsh industrial environments

Installation and Configuration Guide

Phase 1: Pre-Installation Preparation (15 minutes)

⚠️ Safety Warning: This module handles communication for the entire safety rack. A failure of this module will cause multiple I/O racks to lose communication.

• Confirm whether the system is configured as Simplex expansion or Dual/TMR expansion. If it is a simplex expansion, removing the only operating module will trigger a shutdown on the corresponding I/O.
• Wear a grounded anti-static wrist strap.

Phase 2: Remove the Old Module (5 minutes)

• Loosen the two captive screws at the top and bottom of the 9662-610 module.
• Cable Note: If I/O bus cables are connected to the module face or adjacent I/O bus interfaces, clearly label them before removal.
• Grasp the module ejector handles and pull straight out. Do not rock the module side to side, as this will damage the high-density backplane pins.

Phase 3: Install the New Surplus Module (9662-610) (15 minutes)

• Pin Inspection: Carefully inspect the backplane pins of the new surplus module. Even one bent pin can cause a communication fault.
• Seating: Slide the module into the designated slot and press evenly until the backplane connector is fully mated.
• Reconnect Cables: Reconnect the I/O bus expansion cables, ensuring connectors are fully inserted and hand-tighten the captive screws.

Phase 4: Verification (15 minutes)

• LED Status:
  • PASS: Green LED illuminates after internal self-test completes.
  • ACTIVE: Green LED illuminates after communication is established between the main processor (MP) and the expansion rack.
• TriStation 1131 Software Check: Open the diagnostic monitoring interface and confirm that “Expansion Rack Status” displays “Normal.”
• Clear Alarms: If system alarms persist, perform an “acknowledge” operation in the software for this hardware change.

Customer Cases and Industry Applications

Case 1: LNG Terminal Communication Fault

An LNG loading terminal was experiencing intermittent “Rack 2 Offline” alarms. Diagnosis localized the fault to a 9662-610 module in the main rack. Since this expansion rack controls emergency shutdown (ESD) valves for the loading arms, the terminal faced a full shutdown risk. We delivered a new surplus module via direct courier service and completed the replacement within a 1-hour maintenance window, restoring the full TMR communication link to the remote rack.

Case 2: Refinery Expansion Schedule Risk

During a refinery expansion project, the system integrator discovered that the original bill of materials was missing two bus expansion modules required for additional I/O racks. The Schneider Electric factory lead time was 20 weeks. We delivered two brand-new surplus modules (type 3000520-390C1R) within 5 days, enabling the integrator to complete loop testing on schedule and avoiding $50,000 per day in commissioning delay penalties.

Frequently Asked Questions (FAQ)

Q: Why does the label show 3000520-390C1R instead of 9662-610? A: TRICONEX distinguishes between assembly part numbers (starting with 3000520) and sales model numbers (9662-610); they refer to the same hardware. Our quality inspection verifies both numbers.

Q: Do I need to reprogram the main processor after installing this module? A: No. The 9662-610 is a transparent communication module. As long as the slot and rack configuration in TriStation software matches the field hardware, the main processor will recognize the module and operate normally.
